Instruction Manual CyberScan DO 110
4
3 PREPARATION
3.1 Inserting the Batteries
This meter is packaged with 4 “AAA” alkaline batteries required for operation. To
insert the batteries into the meter, follow the procedure outlined below.
1. To open the battery compartment, press down the catch of the battery cover.
See below.
2. Note the polarity and insert the batteries into the battery compartment correctly
3. Replace the battery cover into its original position, ensuring the catch is locked
in position.
Your hand-held meter is now ready for operation.
3.2 Connecting the DO Probe
The DO 110 uses a special notched 6-pin connector to attach the probe to the meter.

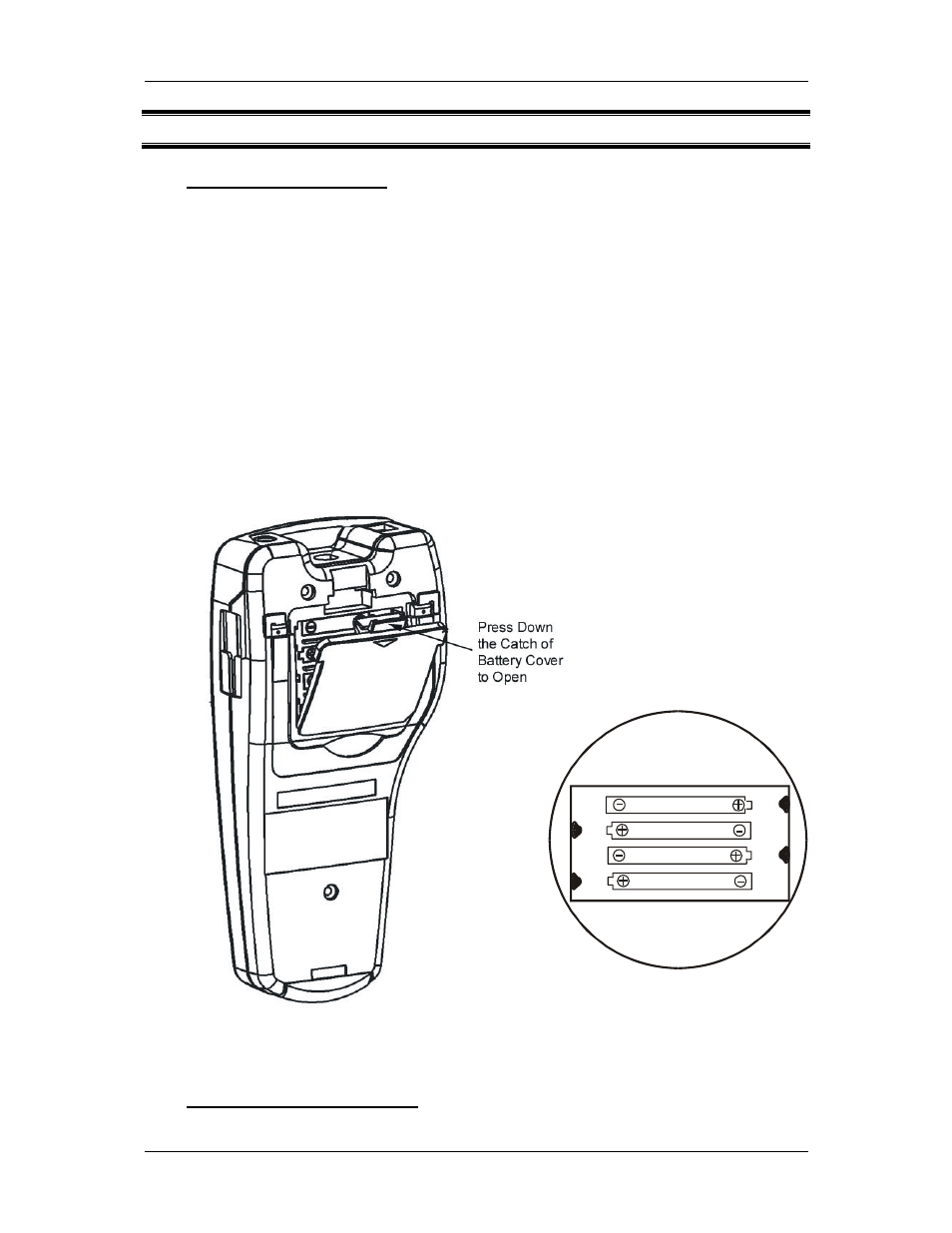

Figure 2: Open Battery Cover
Figure 3: Note battery's polarity
LR03 'AAA' (AM4)
MADE IN S'PORE
