2 DISPLAY & KEYPAD FUNCTIONS
2.1 Display
The LCD has a primary and secondary display.
• The primary display shows the measured % Saturation or mg/L (or ppm)
values.
• The secondary display shows the measured temperature.
The display also shows error messages, keypad functions and program functions.
SETUP MEM MEAS CAL
Primary Display
Secondary Display
ERR
MEM
ATC
°C °F
READY
HOLD
ON
OFF
-1.8.8.8
-1.8.8.8
1 2 3 4
5
6
7
8
9 10 11 12 13
14
15
16
17
ppm
mg/l
%

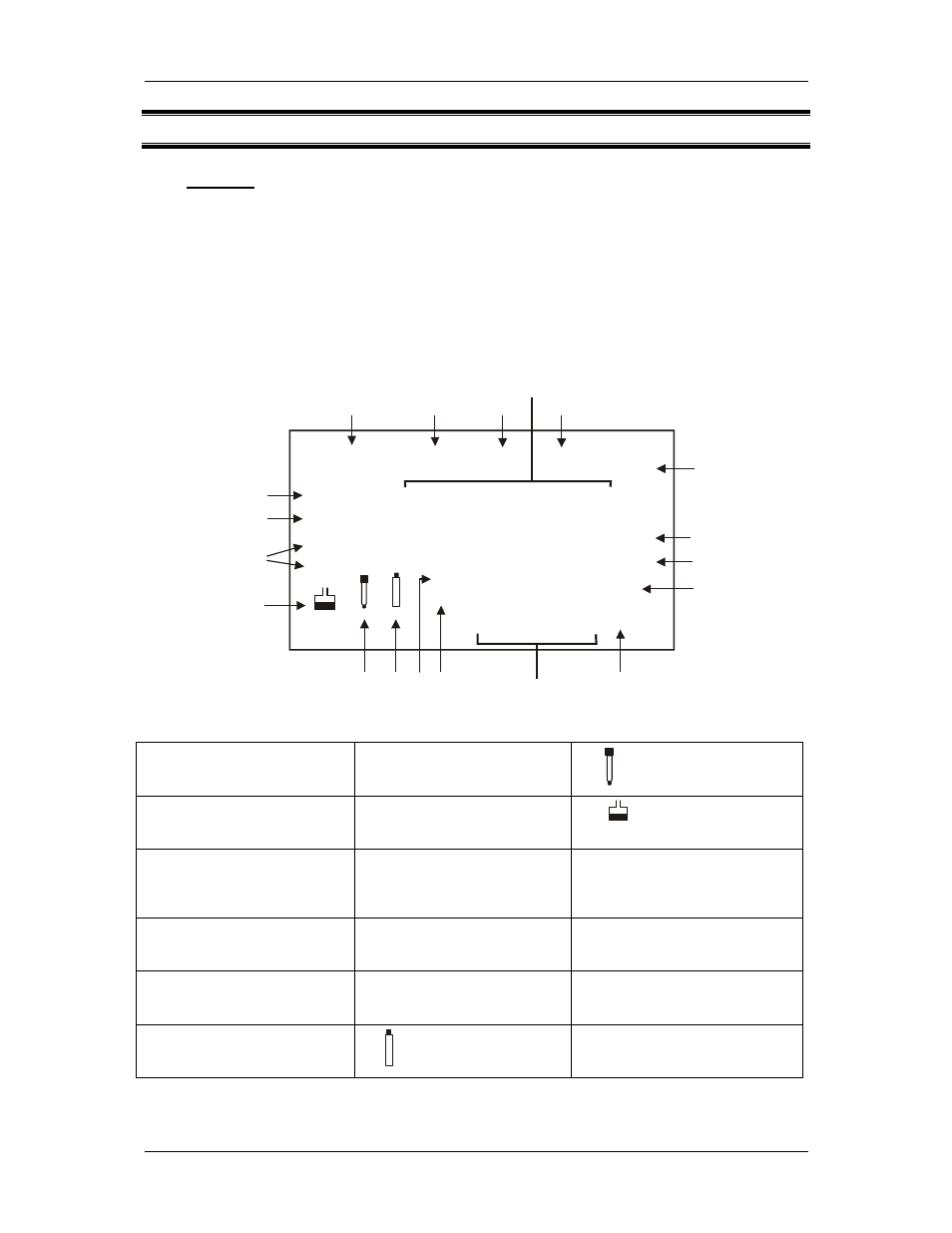

Figure 1: Active LCD screen
1. SETUP - Setup mode
indicator 7. mg/l- milligram per liter
13. - Electrode indicator
2. MEAS - Measurement mode
indicator 8. °C°F - Temperature
indicator
14. - Calibration standard
indicator
3. CAL - Calibration indicator
9. ATC - Automatic
Temperature Compensation
indicator 15. ON – READY/Auto HOLD set
up enable indicator.
OFF – READY set up
disable indicator
4. MEM - Memory recall mode
indicator 10. ERR - Error indicator 16. HOLD – Hold indicator
5. % - Percentage Saturation
of Oxygen 11. MEM - Memory location
indicator 17. READY – Ready indicator
6. ppm – parts per million
12 - Low battery indicator
