INSTALLATION
3
13
OPTISENS MAC 080
www.krohne.com 01/2010 - MA MAC 080 R02 en
3.3.1 Single parameter measuring point

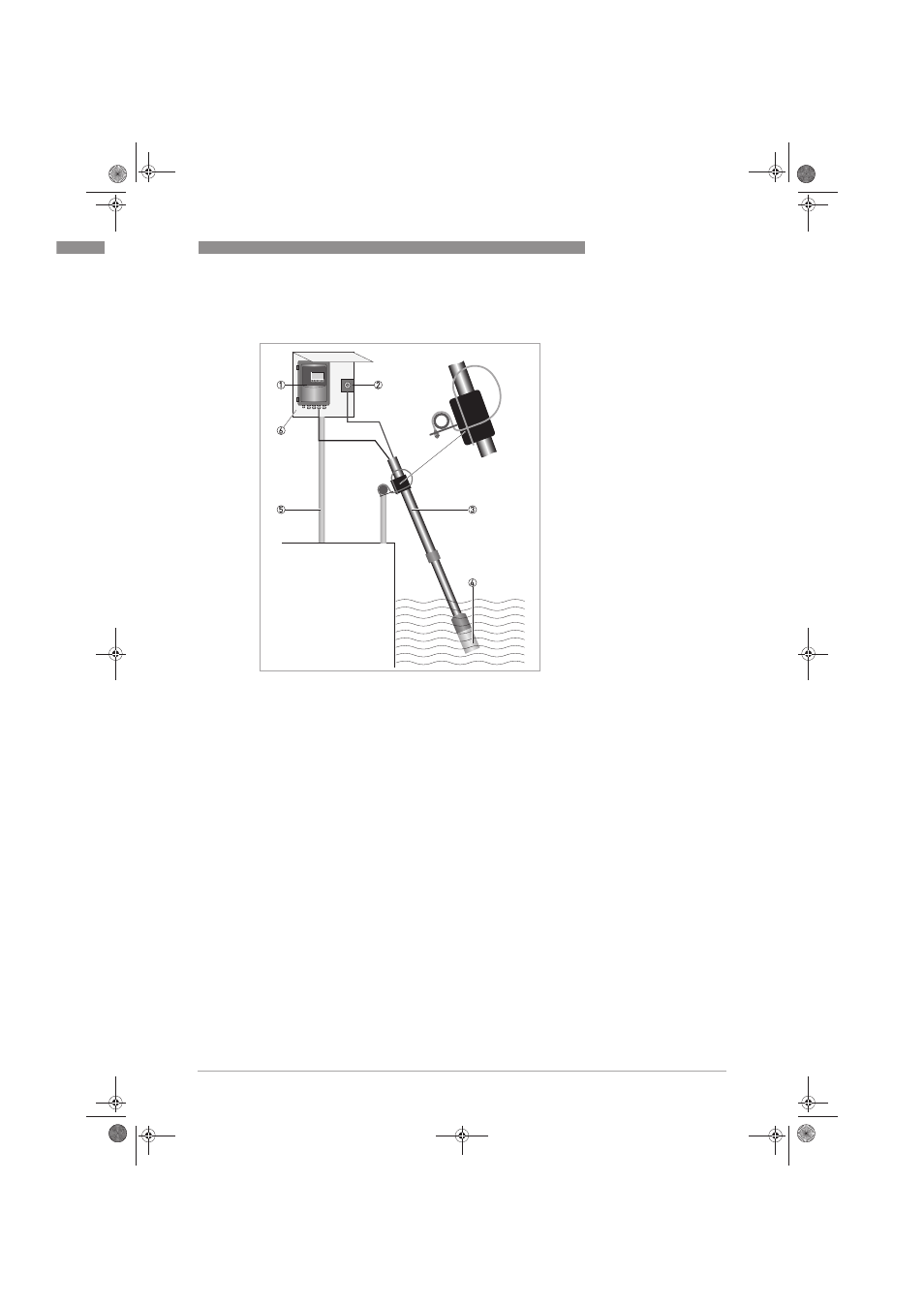

The figure above shows a single parameter measuring point consisting of one converter 1, one
sensor 4 with a telescopic rod immersion assembly as sensor holder 3 and one solenoid valve
2 for flushing.
The spring loaded mounting bracket for installation of the telescopic rod sensor holder on the
handrail is included in the delivery of the holder and can be used for round and square hand rails
with a maximum diameter of 50 mm / 2".
The signal cable to the sensor and the flush hose are provided with the sensor.
The mounting plate with sun shield and the mounting post are available optional.
1 Converter
2 Solenoid valve for flushing (to be ordered with converter)
3 Mounting assembly
4 Sensor incl. 10 m / 33 ft cable and flush hose
5 Mounting post
6 Mounting plate with sun shield
