Transistor dc bias characteristics test – GW Instek SFG-1000 Series User Manual
Page 29
Application Examples
29
Transistor DC Bias Characteristics Test
Description
Use SFG-1000 series as the signal source for a transistor.
Compare the transistor input/output waveform using the
oscilloscope. Adjust the DC voltage source to find out
the maximum output without distorting the waveform.

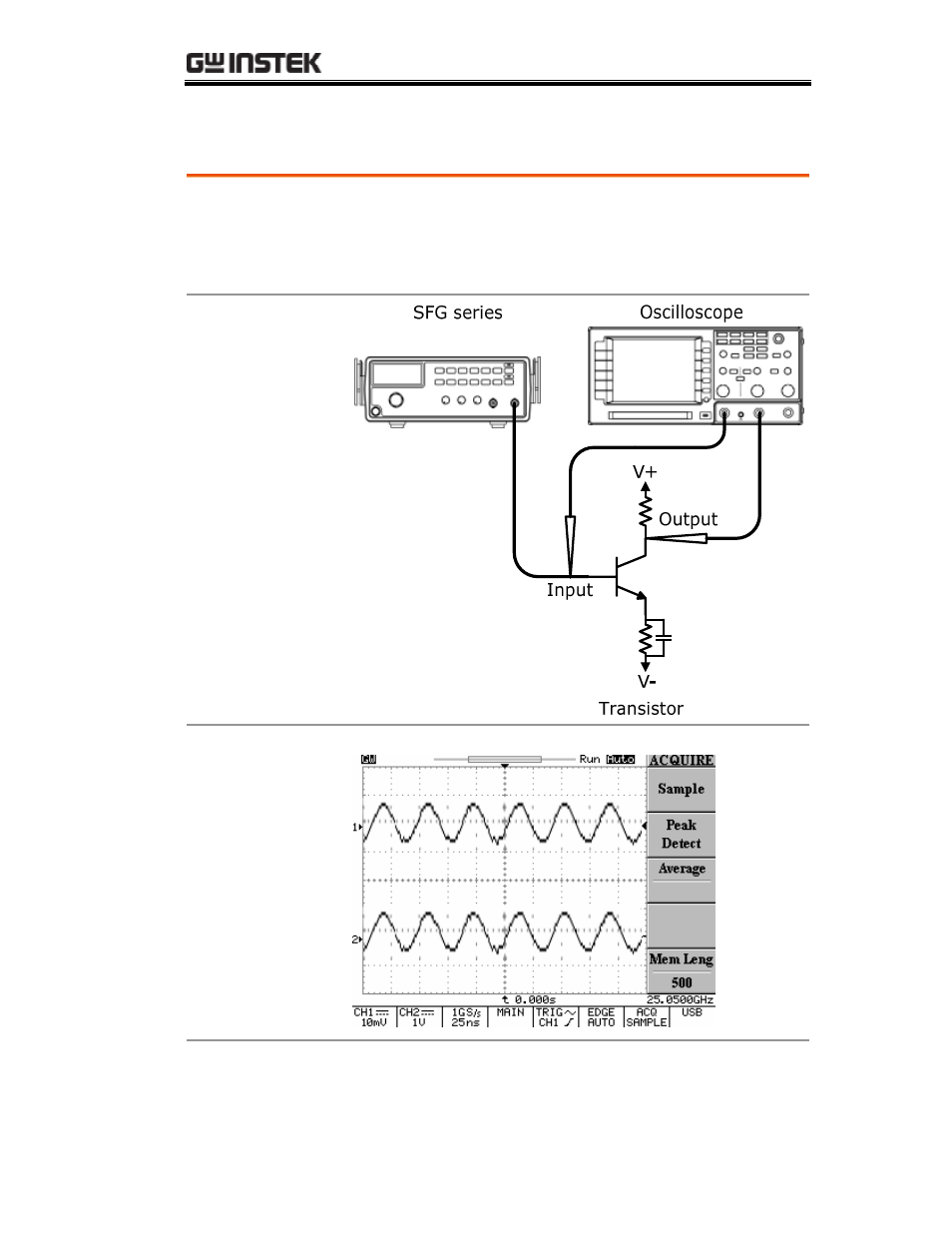

Block diagram
Oscilloscope
display
