Getting Started
13

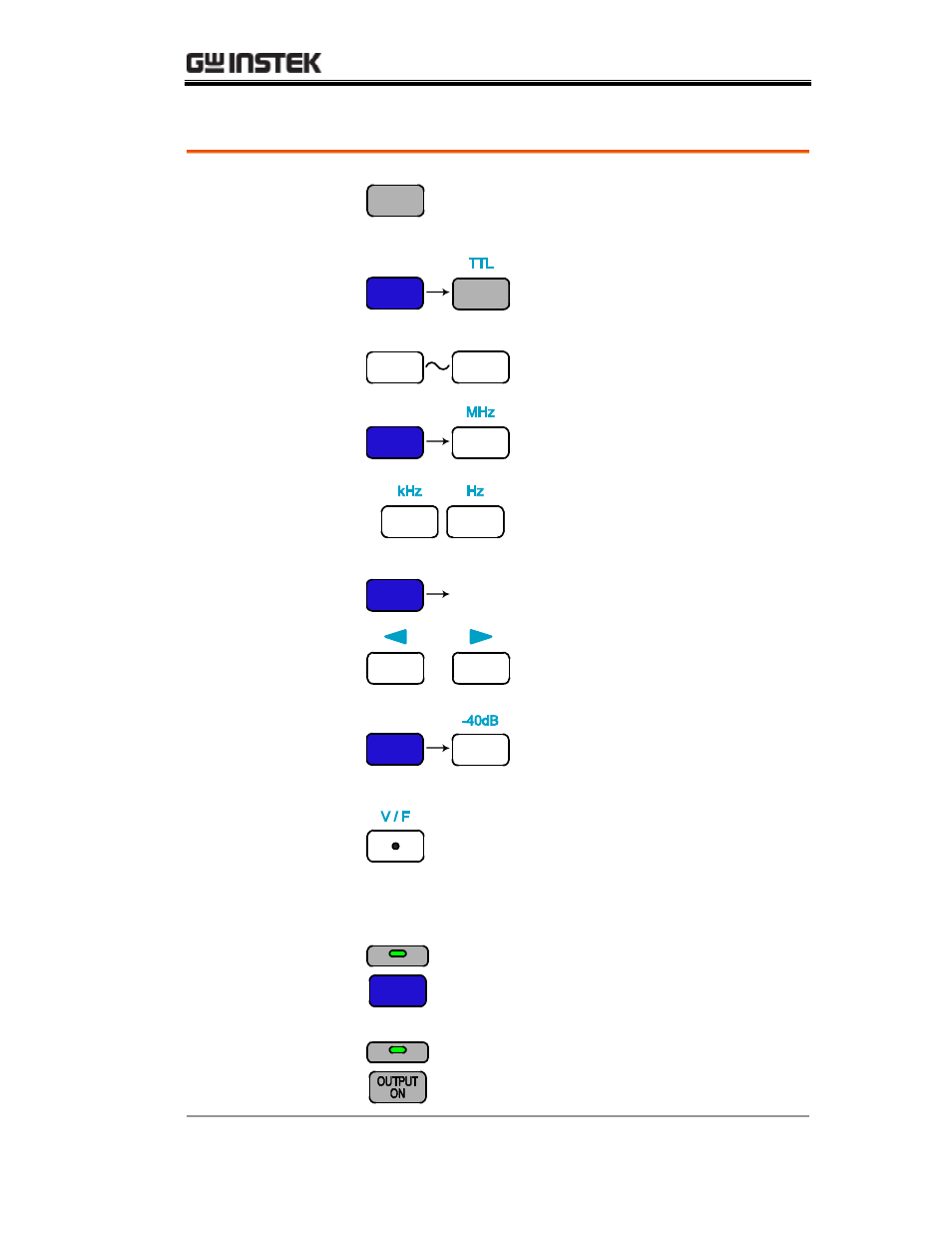

Entry keys
Waveform key
WAVE
Selects the waveform: sine,
square, and triangle. For details,
see page20.
TTL activation
SHIFT WAVE
Activates TTL output. For details,
see page25.
Numerical keys
1 0
Specifies frequency.
Frequency unit
selection
SHIFT 8
(
9 , 0
)
Specifies the frequency unit:
MHz, kHz, or Hz.
Cursor selection
SHIFT
4
or
5
Moves the cursor (frequency
editing point) left or right. For
details, see page21.
− 40dB
attenuation
(SFG-1013 only) SHIFT 3
Attenuates amplitude by −40dB.
For details, see page22. Key
operation is for SFG-1013 only.
Frequency /
Voltage display
selection
(SFG-1013 only) Switches the display between
frequency and voltage. For details,
see page22. For SFG-1013 only.
Shift key
SHIFT
Selects the 2 nd function associated
to the entry keys. The LED lights
when Shift is activated.
Output On/Off
key Turns the output On/Off. The
LED lights when the output is
On.
