SFG-1000 Series User Manual
18

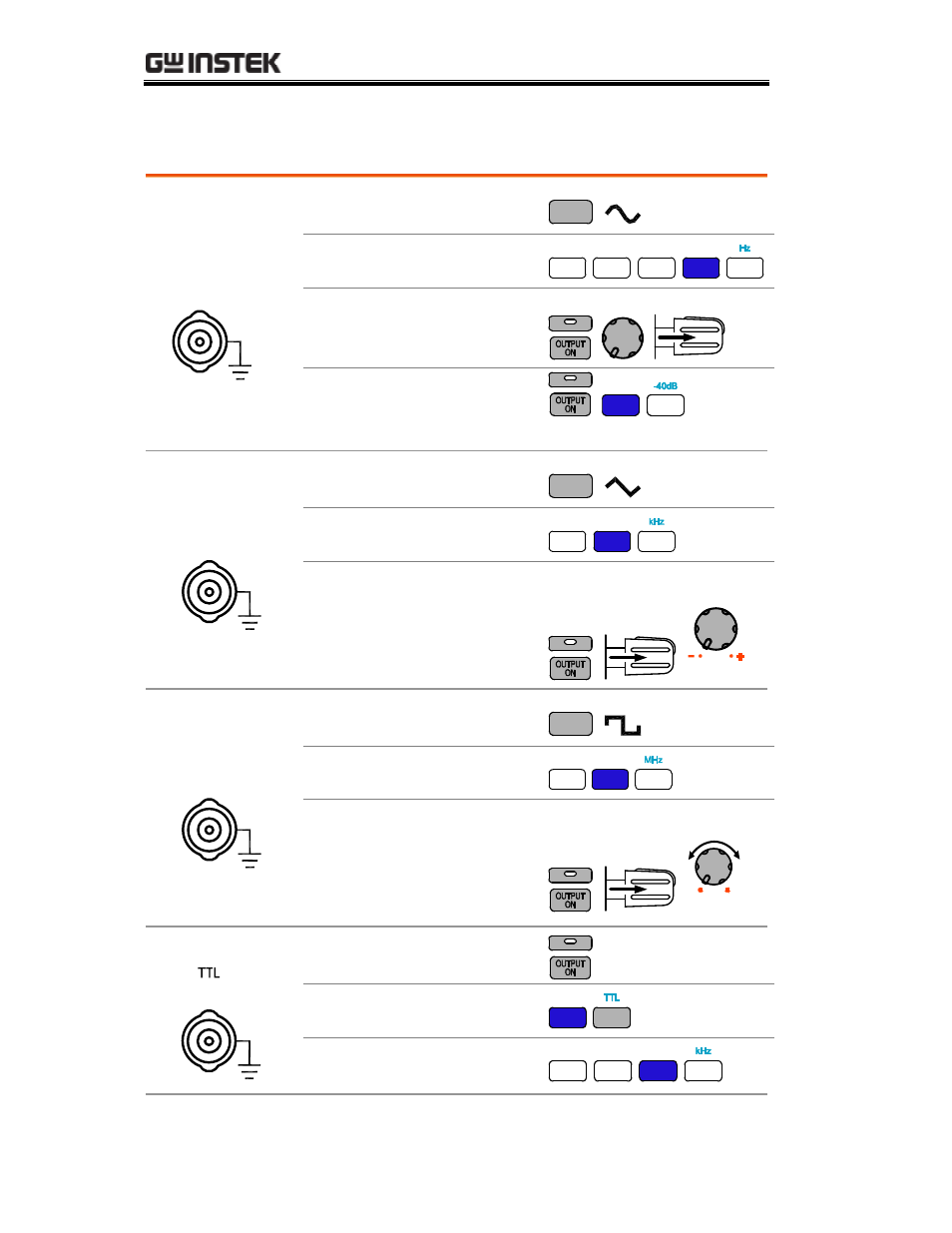

Operation Shortcuts
1. Press Wave key and
select Sine
WAVE
2. Press 2 + 5 + 0 + Shift
+ 0(Hz) key
2
5
0
SHIFT
0
3. (SFG-1003) Press
Output key, then pull
Amplitude knob
AMPL
Sine wave
250Hz, −40dB
amplitude
Ω
50
OUTPUT
三
4. (SFG-1013) Press
Output key, then press
Shift + 3 (−40dB) key
SHIFT
3
1. Press Wave key and
select Triangle
WAVE
2. Press 8 + Shift +
9(kHz) key
8
SHIFT
9
Triangle wave
8kHz,+2V Offset
Ω
50
OUTPUT
3. Press Output key, then
pull Offset knob and
Rotate
ADJ
OFFSET
1. Press Wave key and
select Square
WAVE
2. Press 1 + Shift +
8(MHz) key
1
SHIFT
8
Square Wave
1MHz, 45% duty
Ω
50
OUTPUT
3. Press Output key, then
pull Duty knob and
rotate
ADJ
DUTY
1. Press Output key
2. Press Shift + Wave
(TTL) key
WAVE
SHIFT
TTL Output 10kHz
OUTPUT
3. Press 1 + 0 + Shift +
9(kHz) key
1
0
SHIFT
9
