SFG-1000 Series User Manual
22
For full error message list, see page37.
Minimum
frequency
limit error

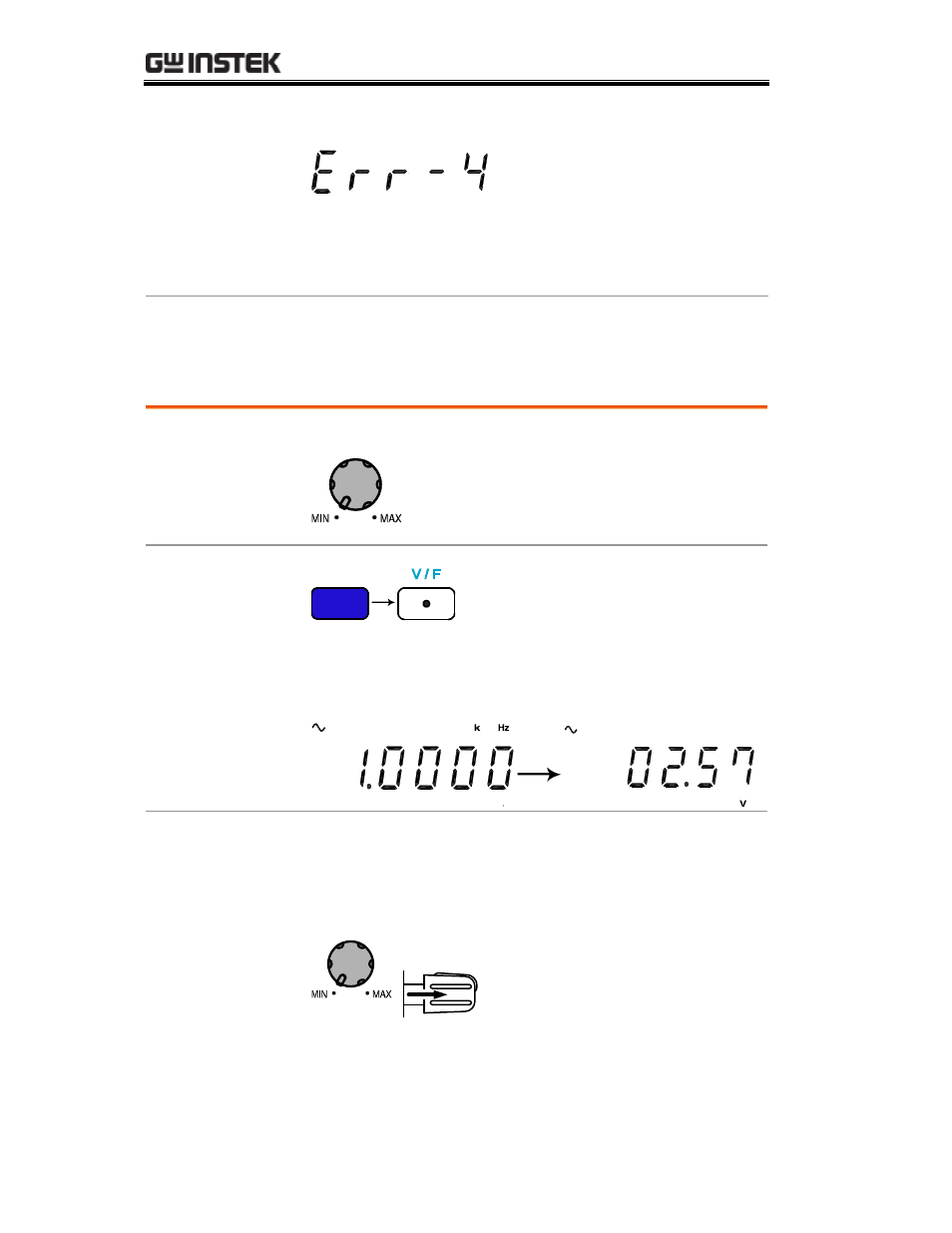

The minimum frequency is
0.1Hz. When the frequency
input becomes less than 0.1Hz,
an error message (Err-4)
appears and forces the
frequency to 0.1Hz.
Set Amplitude
Amplitude setting does not apply to TTL output (page25).
Set
Amplitude
AMPL Turn the Amplitude knob right
(increase) or left (decrease).
The range is 2mVpp ~ 10Vpp for
50Ω output impedance.
View
amplitude
(SFG-1013)
SHIFT
To view the voltage level
(amplitude), press the Shift key
and dot (V/F) key. The display
shows the voltage level. Repeat
this procedure to go back to the
frequency level view.
Attenuate by
−
40dB
Both SFG-1003 and SFG-1013 can attenuate the main
output by −40dB, in different method.
SFG-1003 AMPL
-40dB
Pull out the Amplitude knob. The
output amplitude is attenuated by
−40dB.
