SFG-1000 Series User Manual
20

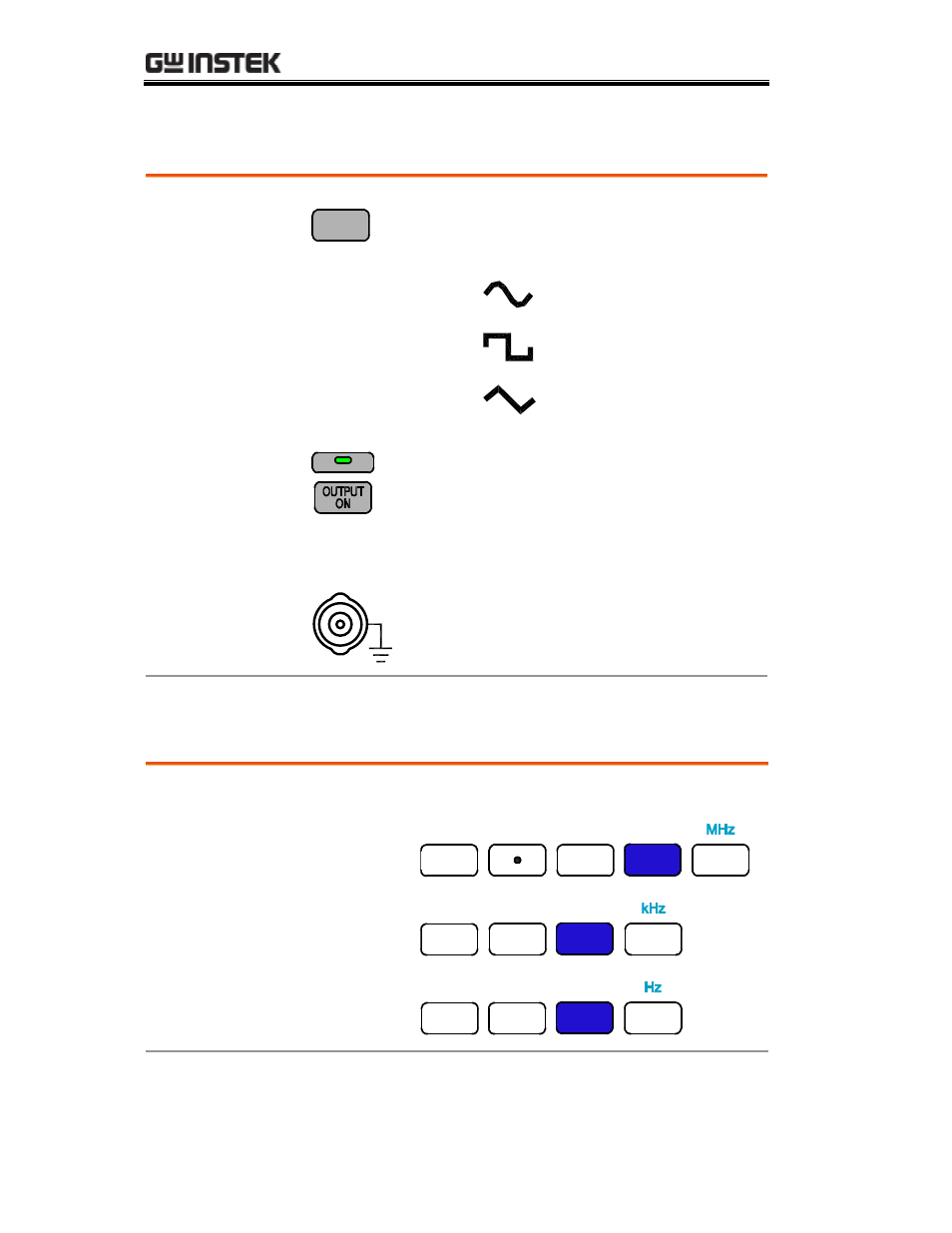

Activate waveform
Sine / Square
/ Triangle
WAVE
1. Press the wave key repeatedly. The
corresponding indicator appears on
the display.
Sine waveform
Square waveform
Triangle waveform
2. Press the output key. The LED
turns On.
Ω
50
OUTPUT
3. The waveform comes out from the
main terminal.
10Vp-p (50Ω load)
20Vp-p (no load)
Set Frequency
Enter the waveform frequency using the numerical keys.
1.2MHz
1 2 SHIFT 8
Enter
frequency
37kHz
3 7 SHIFT 9
45Hz
4 5 SHIFT 0
