Sine/Square/Triangle Wave
23

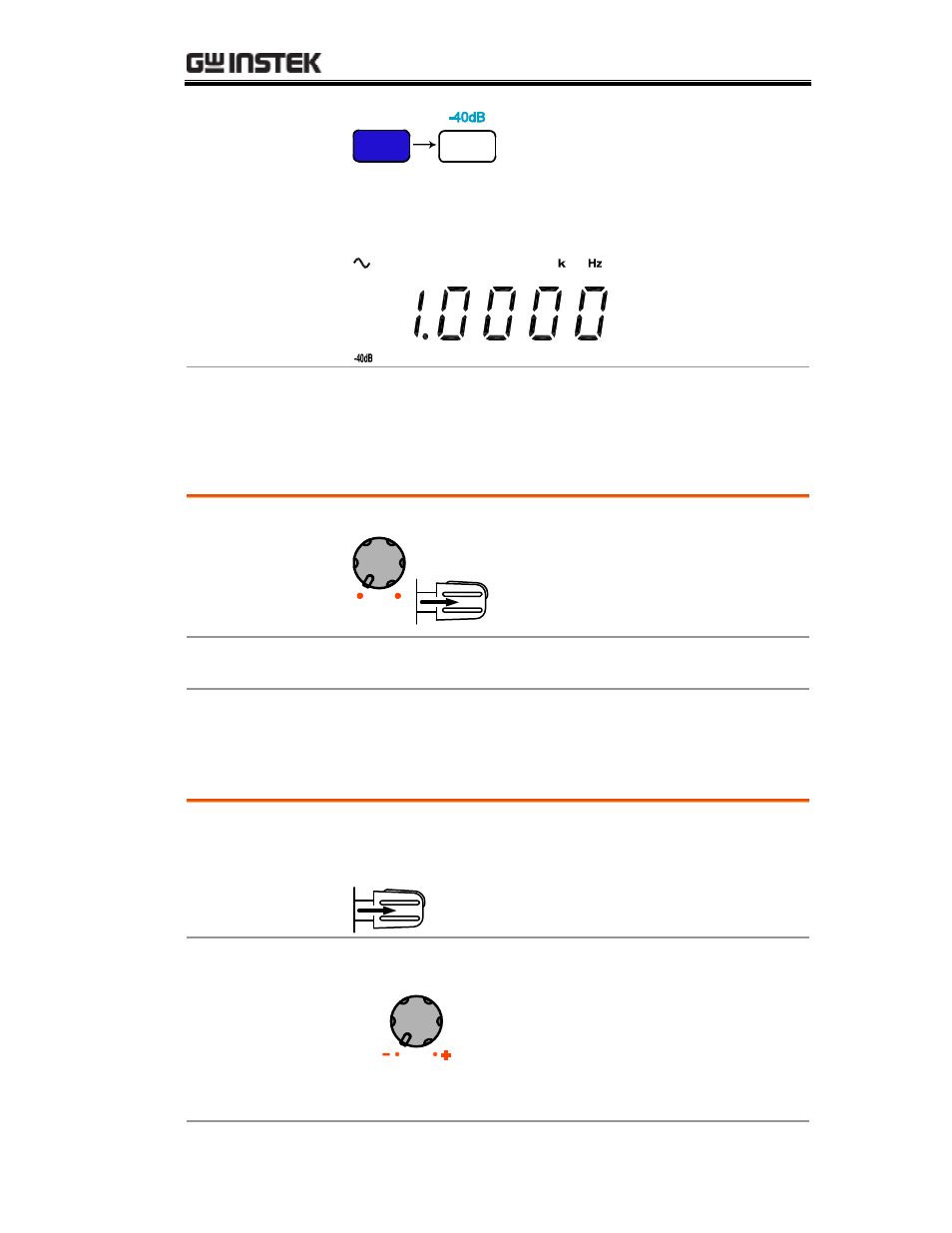

SHIFT 3
Press the Shift key, then 3
(−40dB). The main output is
attenuated by −40dB, and the
−40dB display indicator in the
display turns On.
SFG-1013
Set Duty Cycle (Square Waveform)
The duty cycle setting is not available in sine/triangle waveform.
Enter duty
cycle
ADJ
DUTY
Pull out the Duty knob. Turn right
(left) to increase (decrease) the duty
cycle. The default is set at 50%.
Range 25% ~ 75%
Set Offset
Offset setting does not apply to TTL output (page25).
SFG can add or delete offset to the sine/square/triangle
waveform, thus changing the waveform vertical position.
Activate
offset
Pull the OFFSET knob to turn On
Offset setting.
Adjust offset
ADJ
OFFSET
Turn the knob right (higher position)
or left (lower position).
Range −5V ~ +5V for 50Ω output load
