SFG-1000 Series User Manual
14

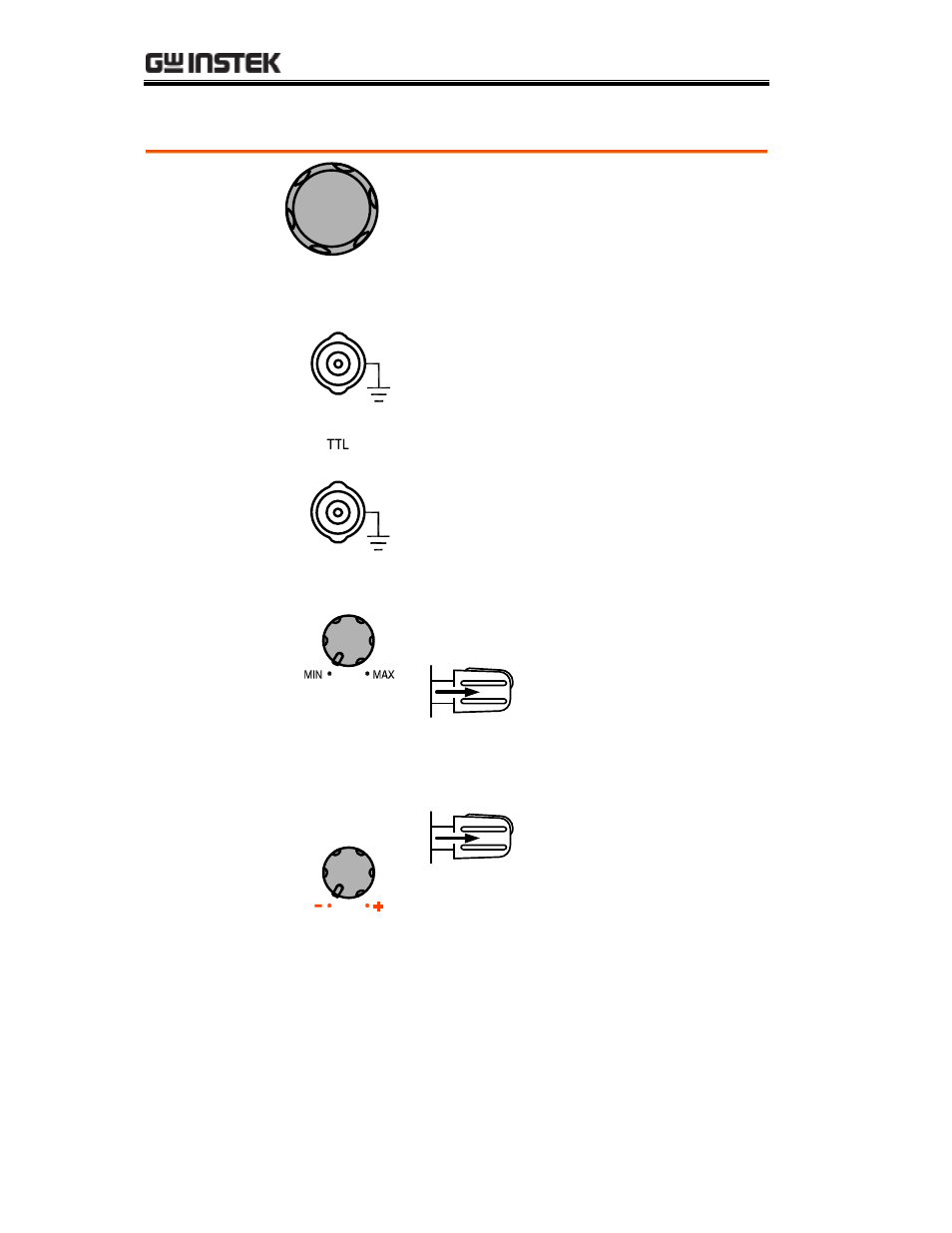

Others
Frequency
editing knob Increases (right turn) or decreases (left
turn) the frequency.
Main output
Ω
50
OUTPUT
Outputs sine, square, and triangle
waveform. BNC, 50Ω output impedance.
For details, see page20.
TTL output
OUTPUT
Outputs TTL output waveform, BNC
terminal. For TTL mode details, see
page25.
Amplitude
control
AMPL
-40dB
Sets the sine/square/triangle waveform
amplitude. Turn left (decrease) or right
(increase).
(SFG-1003 only) When pulled
out, attenuates the sine / square / triangle
waveform amplitude by −40dB. For
details, see page22.
DC offset
control
ADJ
OFFSET
When pulled out, sets the DC
offset level for sine/square/triangle
waveform. Turn left (decrease) or right
(increase). The range is −5V ~ +5V, in
50Ω load. For details, see page23.
