R-Series Remote Annunciators and Expanders Installation and Operation Guide 1
Introduction to the R-Series
The R-Series Remote Annunciators and Expanders provide remote annunciation
for fire and emergency alarm systems. The annunciators offer LCD or LED
annunciation, and can include common controls. The expander uses LEDs.
The R-Series includes three annunciator models and one expander model. One
or two expanders can be connected to any of the annunciator models. Figure 1
shows the four models in the R-Series. Table 1 lists the features of each model.
Table 2 is a complete list of all models and accessories in the series.

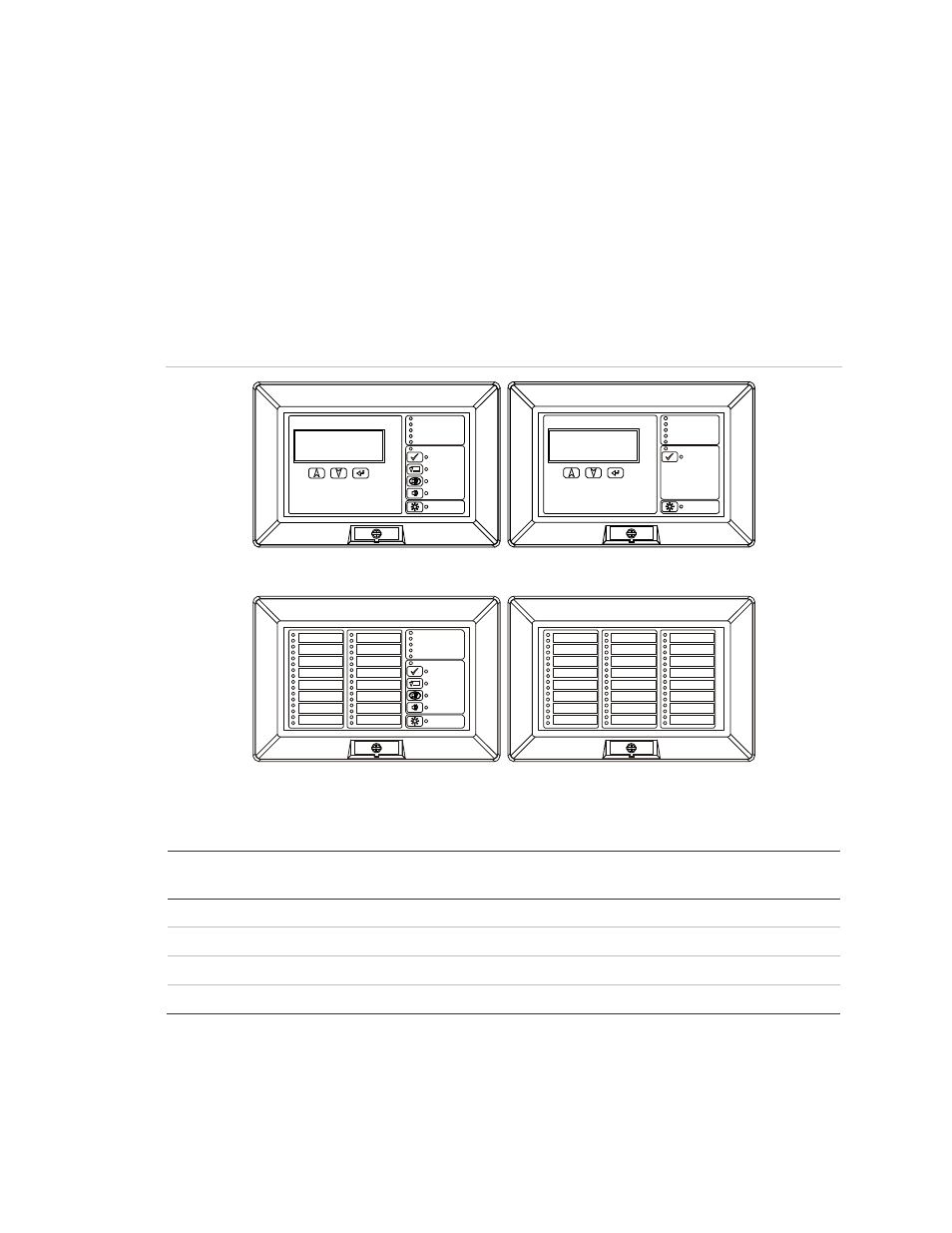

Figure 1: Models in the R-Series
Table 1: Features of the models
Model LCD
Display
Zone
LEDs Common
controls System
LEDs Buzzer
RLCD, RLCD-R, RLCDF Yes No No Yes Yes
RLCD-C, RLCD-CR, RLCD-CF Yes No Yes Yes Yes
RLED-C, RLED-CR, RLED-CF No 16 pairs Yes Yes Yes
RLED24, RLED24R No 24 pairs No No No
The annunciators and expanders can be mounted on a standard 4 in. square
electrical box, using the included mounting ring. They can also be surface
mounted in locking steel enclosures.
Controls Enabled
Ack/Silence
Reset
Signal Silence
Drill
Lamp Test
Power
Alarm
Supervisory
Ground Fault
Trouble
Controls Enabled
Ack/Silence
Reset
Signal Silence
Drill
Lamp Test
Power
Alarm
Supervisory
Ground Fault
Trouble
RLCD-C
RLED-C
RLCD
RLED24
Controls Enabled
Ack/Silence
Lamp Test
Power
Alarm
Supervisory
Ground Fault
Trouble
