RD-64X Operators Manual
4.99K
RD-64X-N4X
Relay
Coil
Local Alarm Output
V+
1N4001
Diode NPN BJT
40V 600mA
From RD-64X-N4X
Processor Output
Interposing Relay
B
C
E

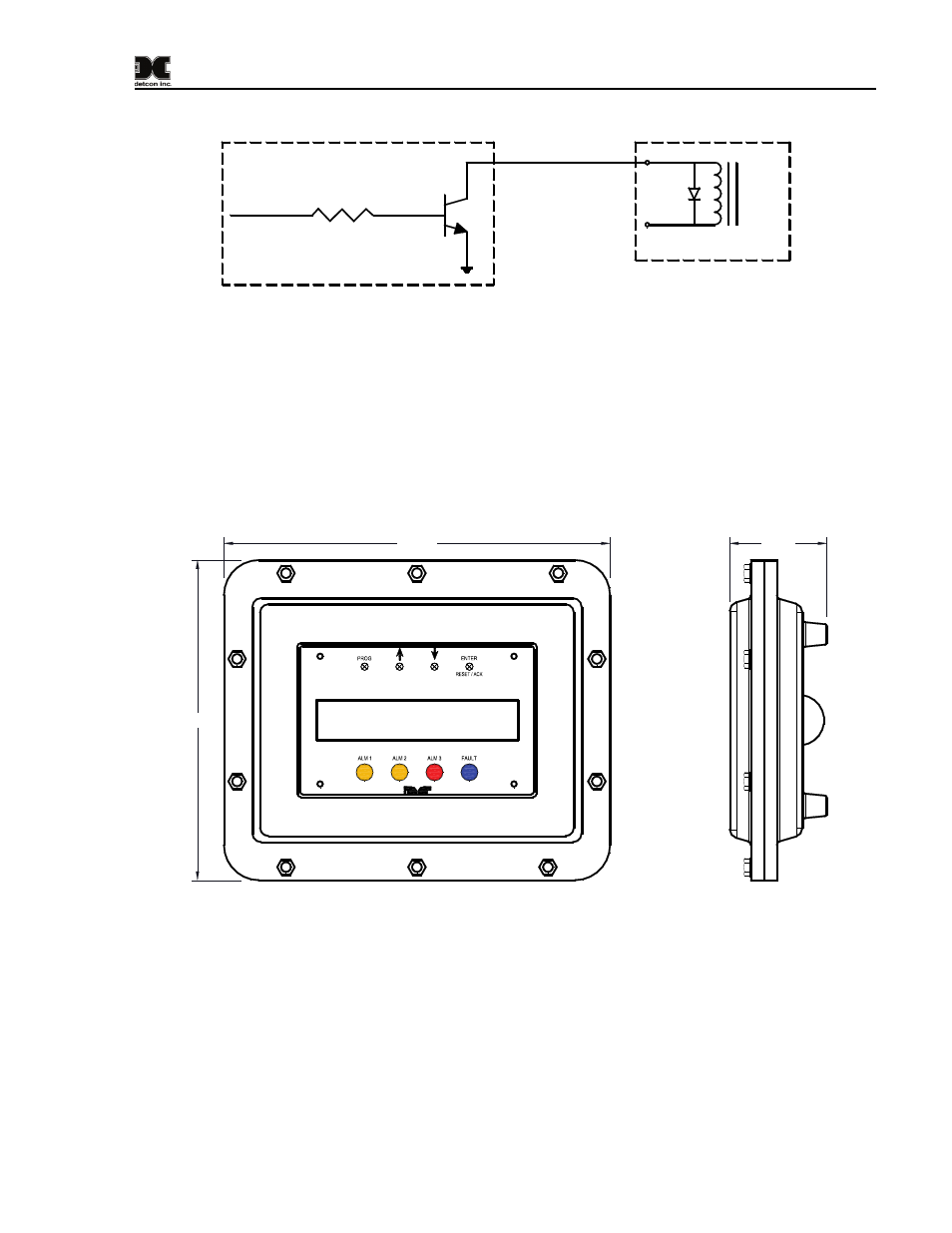

Figure 5 Local Alarm Output Circuit
3. Installation (N7 Enclosure)
3.1 Mounting and Cable Installation
Securely mount the Model RD-64X-N7 per the mounting dimensions provided in Figure 6. Use an
appropriate cable gland to maintain enclosure rating. Keep AC power separate from DC power and signals
within conduit runs.
11.05"
9.15"
2.78"
MODEL RD-64X-N7
Remote Display
Figure 6 N7 Enclosure Dimensional Overview
Detcon offers an optional mounting plate that can be used for mounting the Model RD-64X-N7 remote
display to a pole. If ordered with this option, secure the remote display assembly and J-Box to the
mounting plate (if not already done so from the factory) per Figure 7. The mounting plate can then be
mounted to a pole with two U-Bolts secured through the rectangle holes of the mounting plate.
Model RD-64X Operators Manual Rev. 0.1 Page 5 of 30
