RD-64X Operators Manual
MAIN DISPLAY
NORMAL OPERATION
MAIN MENU
SET # OF CHANNELS//RL4S/
ALARM STATIONS
MAIN MENU
SET # OF RXT-320S
MAIN MENU
SET RF SILENCE AND RF SLEEP
MAIN MENU
SET COMM BAUD RATES
MAIN MENU
SETUP CHANNEL DATA
MAIN MENU
SET CHANNEL RL4/ALARM
STATION BANKS
MAIN MENU
SET MODBUS TIMEOUTS
RXT 320S IN NETWORK: ##
CHANNELS: ##
BANK 1: #
BANK 2: #
RF SILENCE: ON/OFF
RF SLEEP: ##:##
SLEEP: ON/OFF
COMM1 BAUD RATE: ####
COMM2 BAUD RATE: ####
RESPONSE TIMEOUT: ####
INTERPOLL DELAY: ###
SLAVE ID: ## in hex
DEVICE TYPE: XXXXXX
REGS TO READ: #
READING REG: #
DECIMAL POINT: #
RANGE: #####
TYPE: XXXXXXXXX
MAIN MENU
FLASHING BLUE LED CODES
MAIN MENU
SET MODBUS ADDRESS
MAIN MENU
SET RELAY FUNCTION
MAIN MENU
INHIBIT & ALARM TEST MODE
MAIN MENU
RF LINK QUALITY AND
BATTERY STATUS
MAIN MENU
SYSTEM DIAGNOSTICS
MAIN MENU
DISPLAY SETTINGS
MODBUS ADDRESS: ###
Channel Comm Errors
Channel Faults
RL4 Comm Errors
RXT-320 Comm Errors
RXT-320 Battery Faults
RXT-320 Battery Alarms
Inhibit/Test Mode Status
LATCHING (Bank1): Y/N
ENERGIZED (Bank1): Y/N
SILENCEABLE (Bank1): Y/N
LATCHING (Bank2): Y/N
ENERGIZED (Bank2): Y/N
SILENCEABLE (Bank2): Y/N
INHIBIT MODE: #:##
INHIBIT MODE: START/STOP
ALARM TEST MODE: ON/OFF
BRIGHTNESS: ###
BACKLIGHT TIMEOUT: #:##
CONTRAST: ###
Multiple Channels
Multiple Channels
Multiple Relays
(Fault, Alm1, Alm2, Alm3)
Multiple Transceivers
LCD DISPLAY TEST
LED DRIVER TEST
MODBUS DRIVER TEST
RF LINK: ###%
BATTERY: ##D ##H ##M
MAIN MENU
AUTO CONFIGURE SYSTEM
CHANNELS:##
RXT-320S:##
RL4/ALM ST BANK 1: #
RL4/ALM ST BANK 2: #
MAIN MENU
TIME AND DATE
TIME: HH:MM:SS
DATE: MM/DD/YY
MAIN MENU
VIEW TWA & PEAK
DATE,TIME,CHANNEL,
TWA:######,PEAK: ######
RL4/ALM STATION BANK
FOR CHANNEL ##: XXX

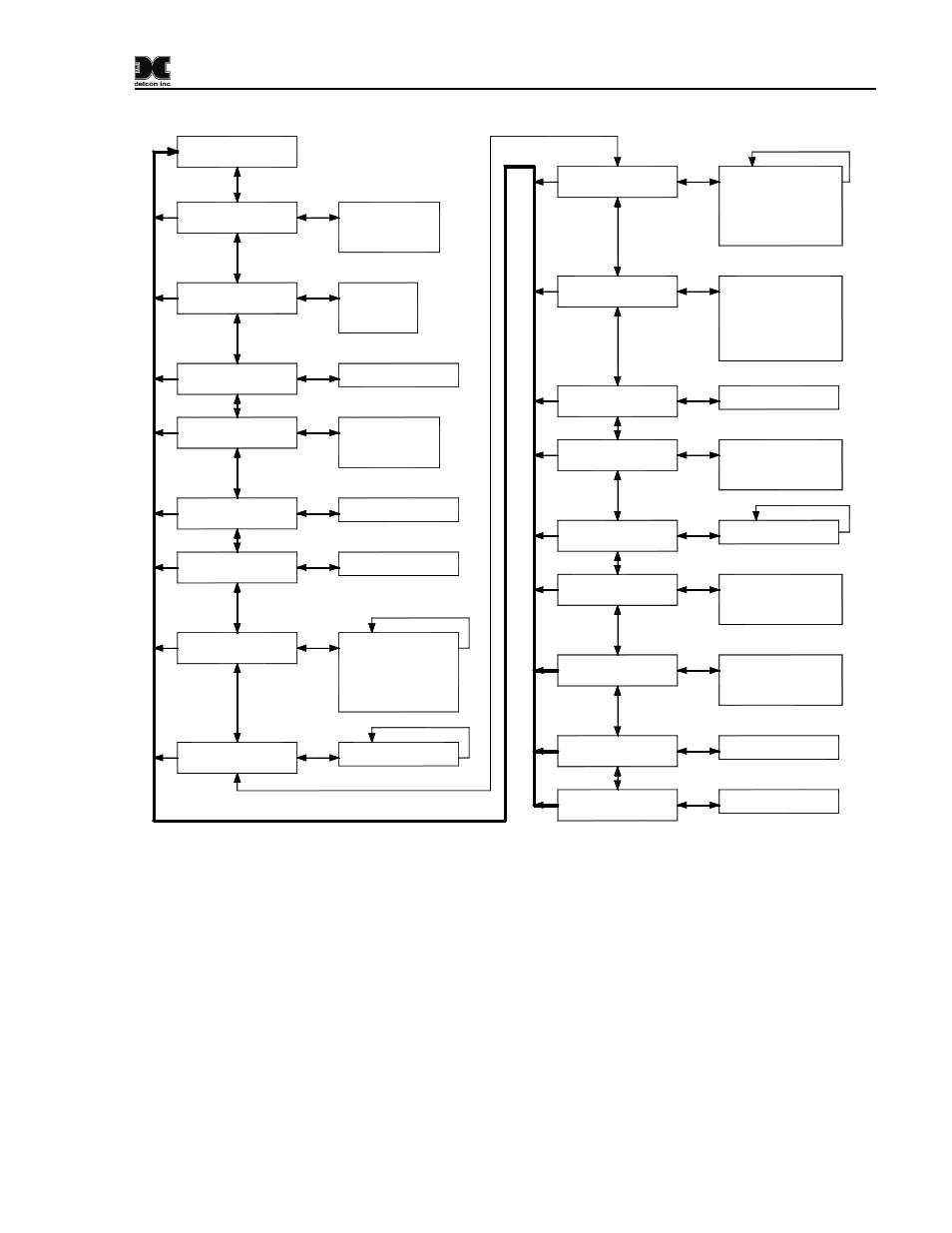

Figure 14 Menu Flow Chart
7.3.1 Auto Configure System
The AUTO CONFIGURE SYSTEM menu is used to automatically configure the RD-64X remote display
when other Detcon devices have been installed as part of the control system. When this feature is
activated, the display will search for Detcon controllers, RL-4 modules and RXT-320 transceivers by
polling the Modbus™ addresses of these particular device types. Upon entering this menu, the LCD will
display:
CONFIGURATION SUMMARY
CHANNELS:## RXT-320S:##
RL4/ALM ST BANK1:## RL4/ALM ST BANK2:##
[RUN SYSTEM AUTO CONFIGURE]
