RD-64X Operators Manual
7.1.4 ENTER and RESET/ACK Switch
This switch has a multiple-use purpose. The ENTER function is used to accept selections within all
menu screens. The Enter switch is also used to execute the Reset and Acknowledge functions. The
Reset function releases all latched relays if they have cleared the alarm/fault condition. The
Acknowledge function will disengage any silenceable relays that are in a currently active state. This is
typically used to silence alarm annunciators, once the end-user has assessed the alarm condition. The
RESET/ACKNOWLEDGE switch is only functional from the Main Display and not while in Menu
Mode.
MODEL RD-64X-N4X
Remote Display

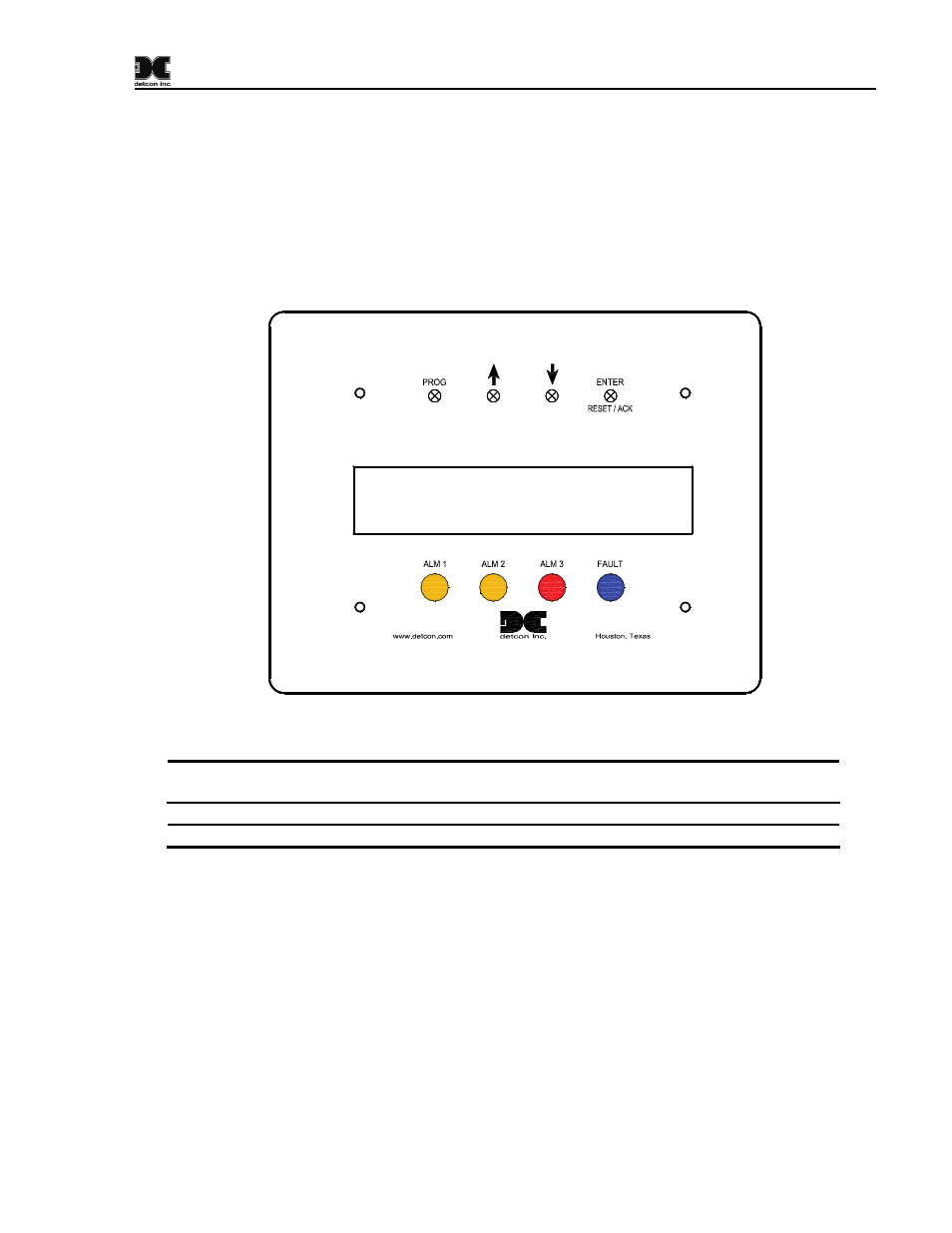

Figure 13 Front Panel User Interface
NOTE: The controller automatically times out of Main Menu mode and returns to the Main
Display after 15 seconds of inactivity.
NOTE: The RESET/ACKNOWLEDGE function is applicable from the Main Display only.
7.2 Main Display Functions
The Main Display is a 1¼” x 6” backlit LCD that has 4 lines by 40 characters. In normal operation, the
configured channels will be displayed up to 8 channels at one time. The LCD screen then refreshes,
displaying the next 8 channels and so on until the LCD cycles back to the first 8 channels and repeats the
process. This is considered normal operation and each channel’s information will be shown as:
XX>
YYY “Device Tag”
Where XX is the corresponding channel number followed by the gas concentration value YYY. If any
channel is in any gas alarm condition, “XX> YYY IN ALARM#” will be displayed for that channel. If
any gas channel is in fault, “XX> YYY IN FAULT” will be displayed for that channel. If any channel is
not communicating with its appropriate device, then that channel will display “XX> 0 COMM ERR”. If
