Hired-Hand Farm Hand Series: Vent Master 24 User Manual
Page 23
Part No. 4801-5124 rev 10-03
Farm Hand Vent Master 24
21

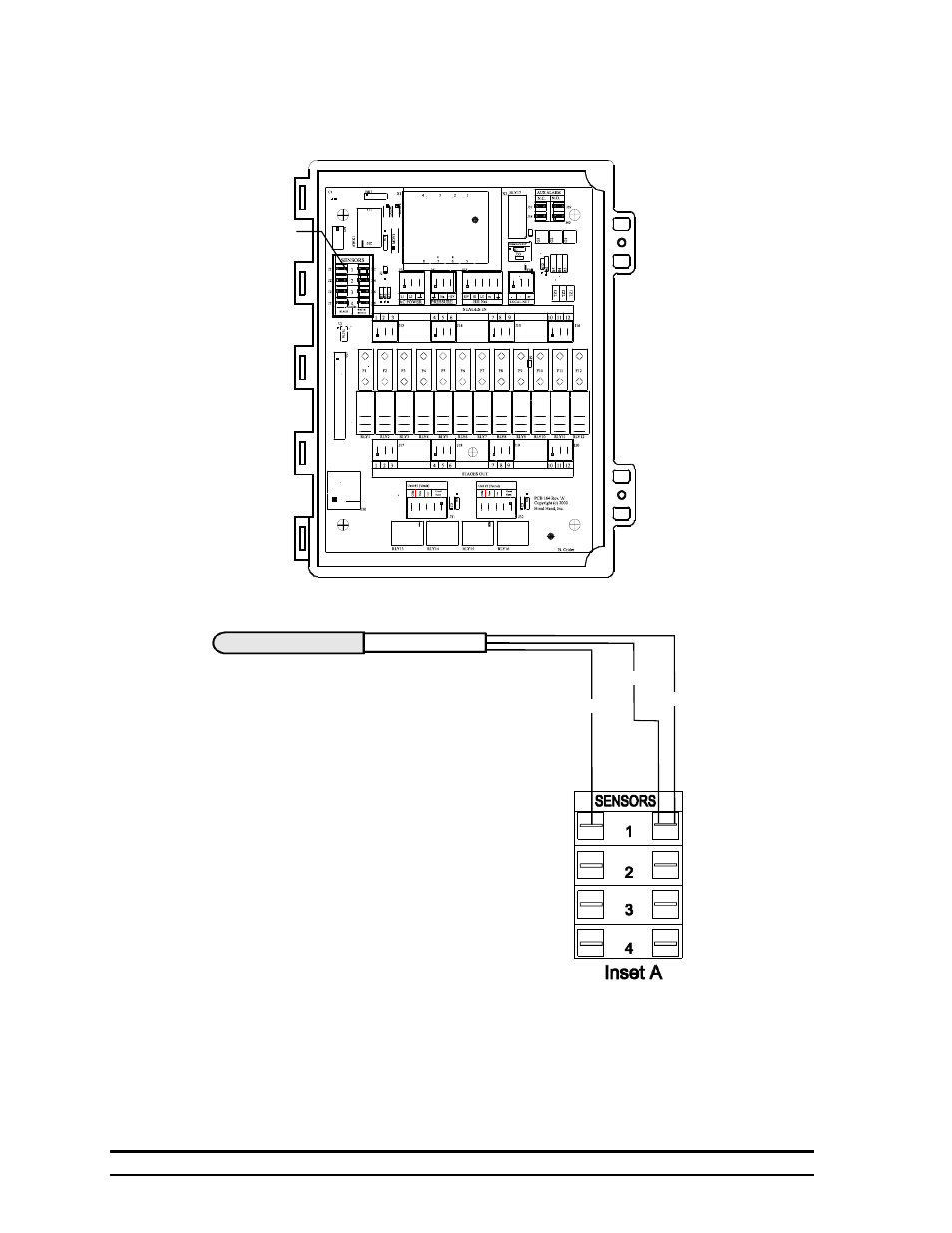

14.3 Connecting Sensors to the Vent Master 24
Black
White
Shield
Inset A
The controller has a switch for disabling Sensor 3. If you use a half house brood layout, you need to
place Sensor 3 in the non brood section of the house, and disable Sensor 3 by turning switch 4 of the
Status Switch Bank to off. (See “Rarely Changed Settings” for more information.)
