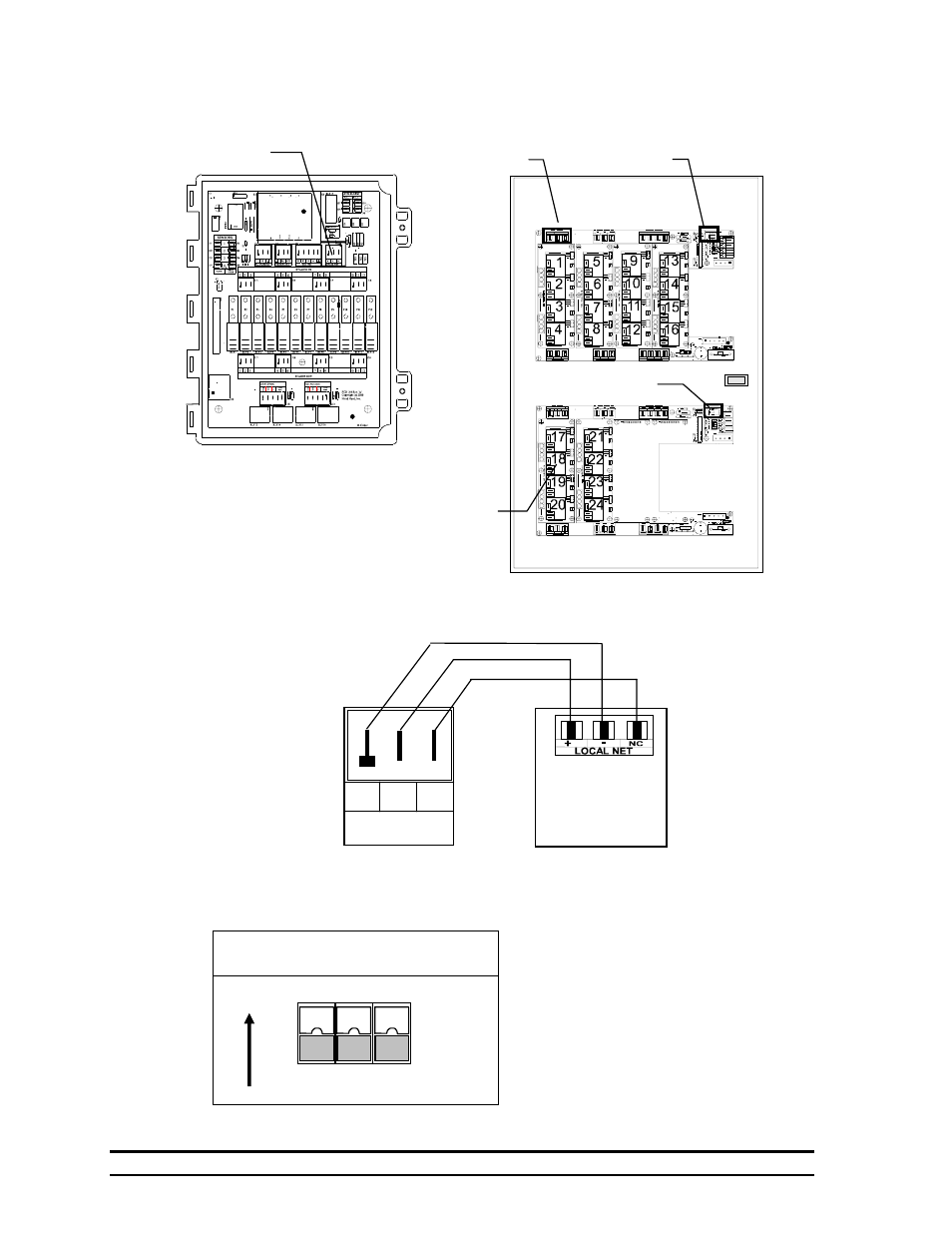

14.2 Connecting an SCS™ Panel to the Vent Master 24
Inset A
Vent Master 24
LOCAL NET ADDRESS
SWX 1
ON
1 2 3
Insets C and D
NOTE: Address switch settings must
be set to ON,ON,ON for both the SCS
16 and the SCS 8 stage panels when
connected to the Vent Master 24.
Setting the Local Network Address
Inset A
SCS
PANEL
LOCAL NET
NC
- +
Pos(+) -
Neg (-) - Black
NC - Green
Inset B
Connecting the Local Network Cable
SCS Panel
Inset B Inset C
Inset D
SCS relays are
numbered according to
the stage they control.
