Virtual ADX(config-vif-2)#exit

Virtual ADX(config)#server real rs1 192.168.1.10

Virtual ADX(config-rs-rs1)#port http

Virtual ADX(config-rs-rs1)#exit

Virtual ADX(config)#server real rs2 192.167.1.10

Virtual ADX(config-rs-rs2)#port http

Virtual ADX(config-rs-rs2)#server virtual v1 192.166.1.10

Virtual ADX(config-vs-v1)#port http

Virtual ADX(config-vs-v1)#bind http rs1 http rs2 http

Server Load Balancing in In-line topology

Deploying SLB in In-line topology

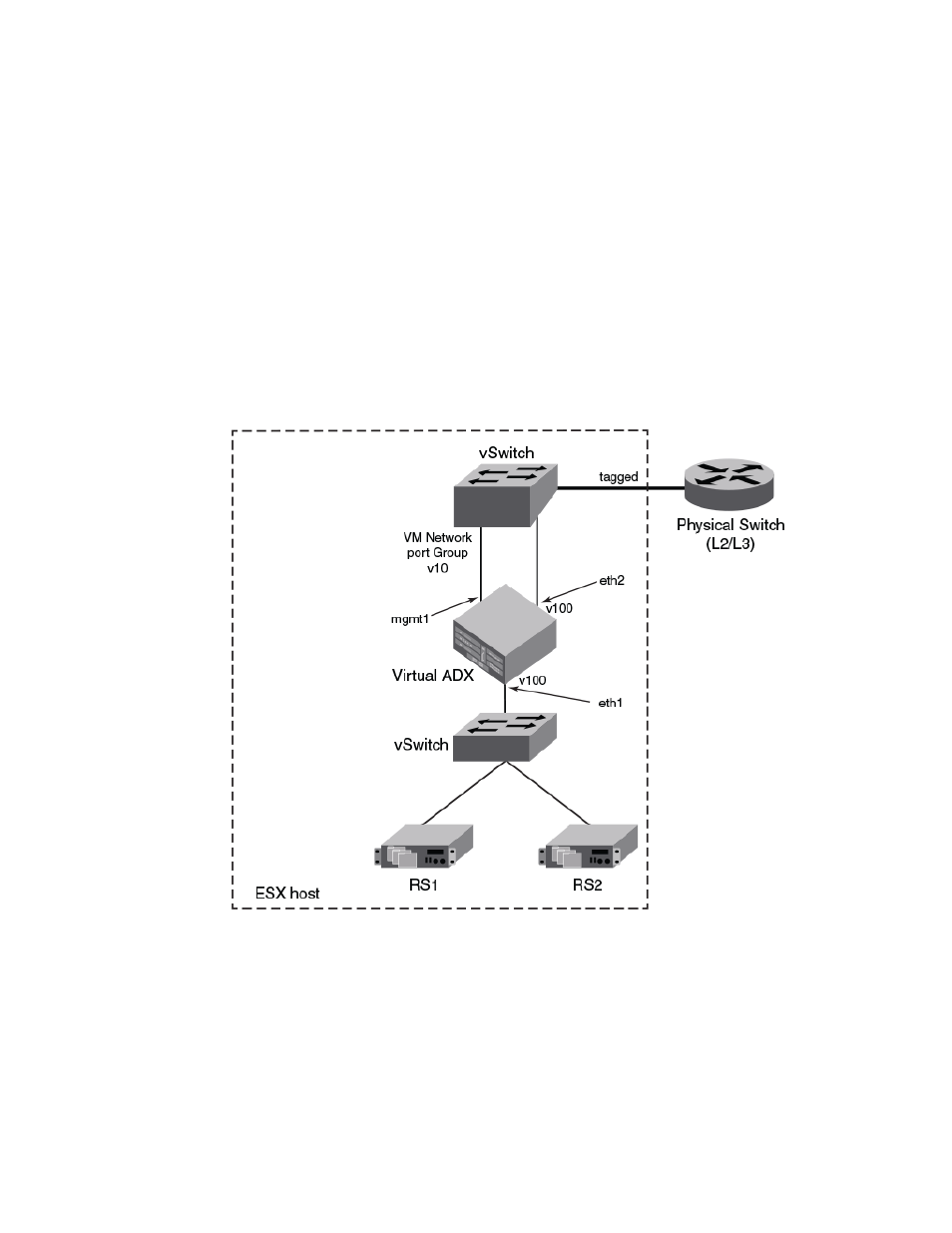

FIGURE 26 Deploying SLB in In-line topology.

Configuring SLB in an In-line topology

Virtual ADX#config term

Virtual ADX(config)#vlan 100

Virtual ADX(config-vlan-100)#untag eth 1

added untagged port ethe 1 to port-vlan 100.

Virtual ADX(config-vlan-100)#router-interface ve 1

Virtual ADX(config-vlan-100)#int ve 1

Virtual ADX(config-vif-1)#ip address 192.168.1.9 255.255.255.0

Virtual ADX(config-vif-1)#exit

Virtual ADX(config)#server real rs1 192.168.1.10

Virtual ADX(config-rs-rs1)#port http
