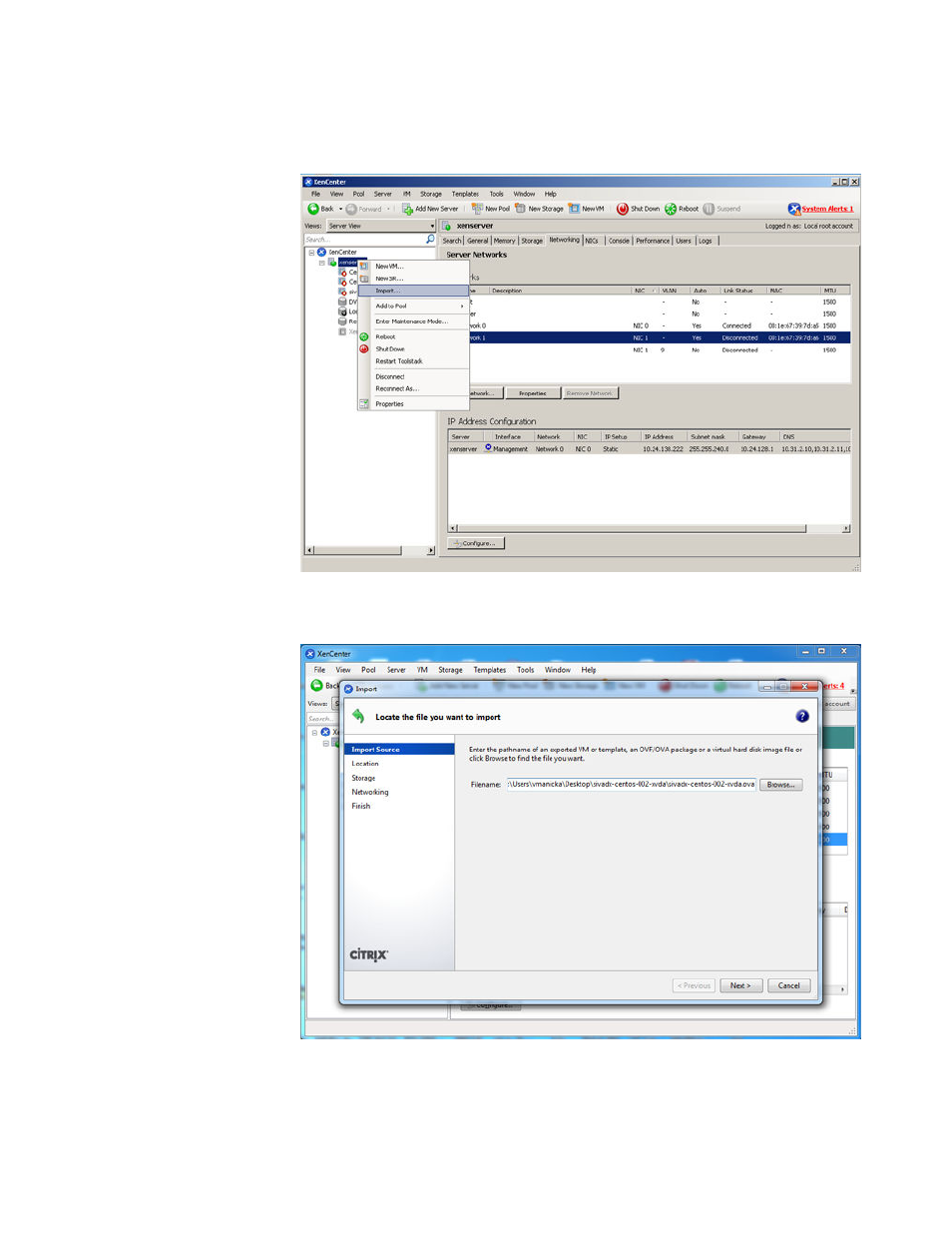

FIGURE 18 XenCenter: Import network

b)

The Import window displays. Select the OVA file and click Next .

FIGURE 19 XenCenter: Select OVA file

c)

Select the default options until you arrive at the Networking section. In the Networking
section you will map the the Brocade Virtual ADX VM’s virtual network interfaces to the
XenServer Target Networks.

Brocade Virtual ADX Installation on Citrix XenServer

48

Brocade Virtual ADX Installation and Deployment Guide

53-1003241-01
