Brocade Virtual ADX Installation and Deployment Guide (Supporting ADX v03.1.00) User Manual
Page 19

e)

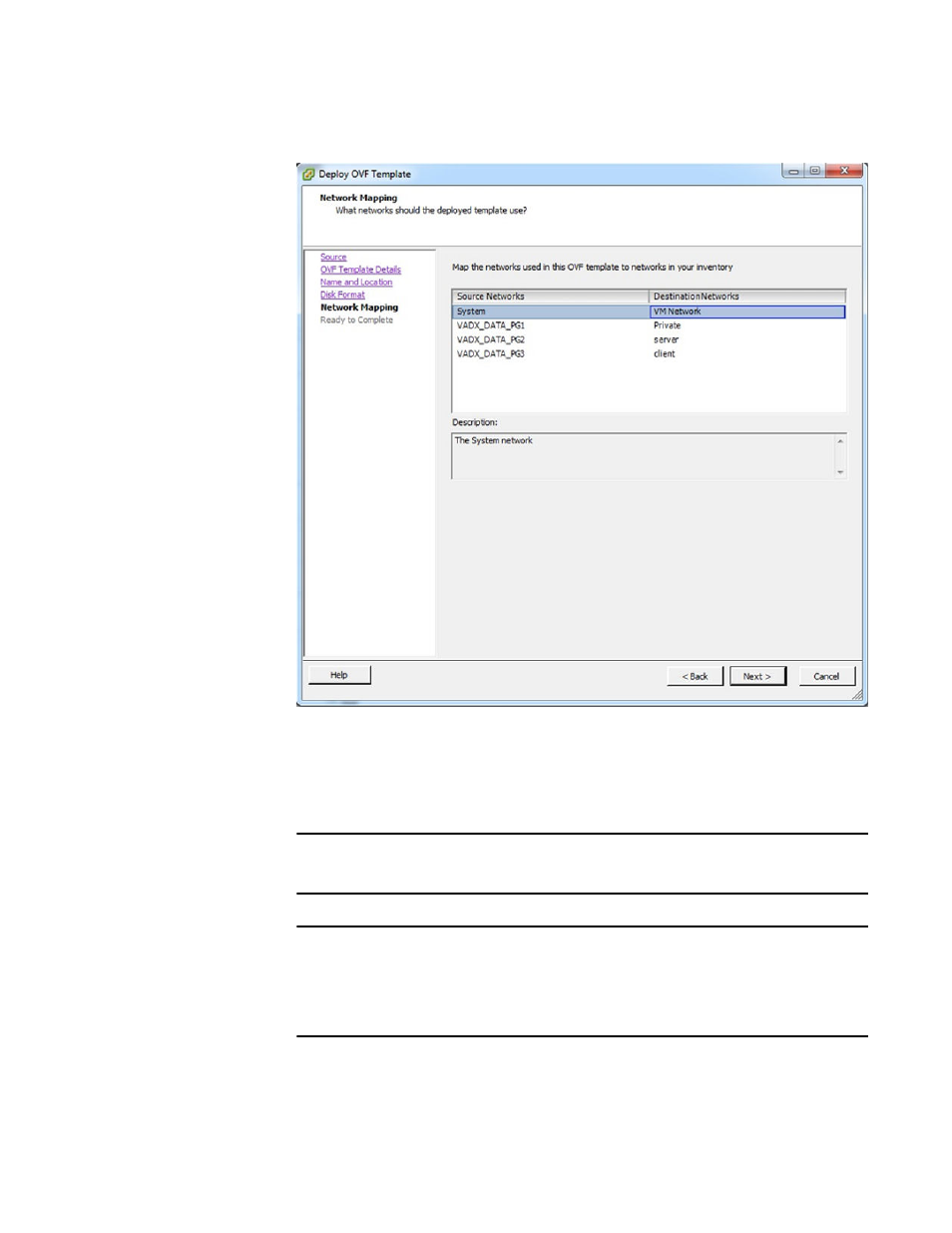

Connect the Brocade Virtual ADX to the vSwitch.
f)
In the left pane, click on the VM. Click on the Summary tab and click on Edit Settings in
the Commands area.
g)
On the Hardware tab of the window that pops up, select a Network Adapter and click
Connect at power on in the Device Status area.
h)
Repeat the above step for each of the remaining Network Adapters .
NOTE
For further information about adding or removing interfaces, refer to
on
page 21.
NOTE
Brocade Virtual ADX supports Layer 2 switching of broadcast and unknown unicast packets
so you must connect the three data ports to three distinct vSwitches to avoid network loops.
If you plan to connect the data ports to the same vSwitch, then you must use different
VLANs for each data port. You must take the same care when deploying multiple
instantiations of the Brocade Virtual ADX on the same ESX host.
The following is a typical vSphere screenshot for a deployed and powered on Brocade
Virtual ADX.
Brocade Virtual ADX Installation on ESX host
Brocade Virtual ADX Installation and Deployment Guide
19
53-1003241-01
