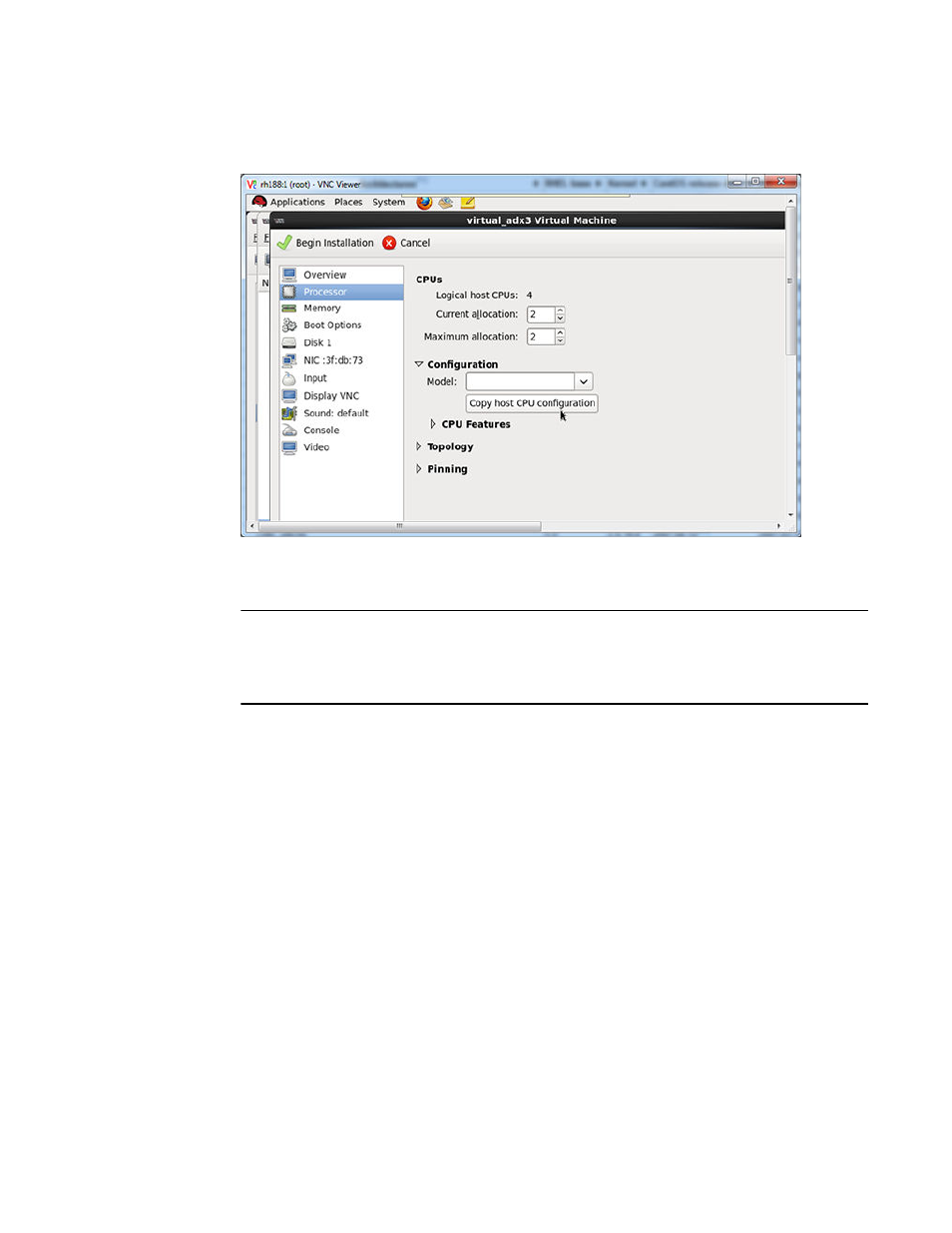

FIGURE 7 Create a new VM - Step 5
9. Select Processor tab from the left menu and click Copy host CPU configuration in the right panel
to copy CPU configuration from the KVM host. Then, click Apply.
NOTE
This allows Brocade Virtual ADX to use the CPU configuration, which might speed up the processing
speed in the guest OS. Ensure that the features that you copied match with the features supported
on your host CPU. You may skip this step if you are not sure. If you change the configuration while
the VM is running, it will not be applied until the next time when the guest VM is rebooted.
10.Select Disk from the left menu. From the Advanced Options in the right panel, select IDE as the
Disk bus and qcow2 as the Storage format.
