d)
Map the Brocade Virtual ADX virtual network interfaces to XenServer host networks, as
shown in the Import OVF/OVA Package window below:
1. Select one of the XenServer default networks for Ethernet 1 (mgmt1 on Brocade Virtual
ADX). If the XenServer host has only one physical NIC, choose Network 0 .
2. Select a network created in Step 3 above, for each of the three data ports.

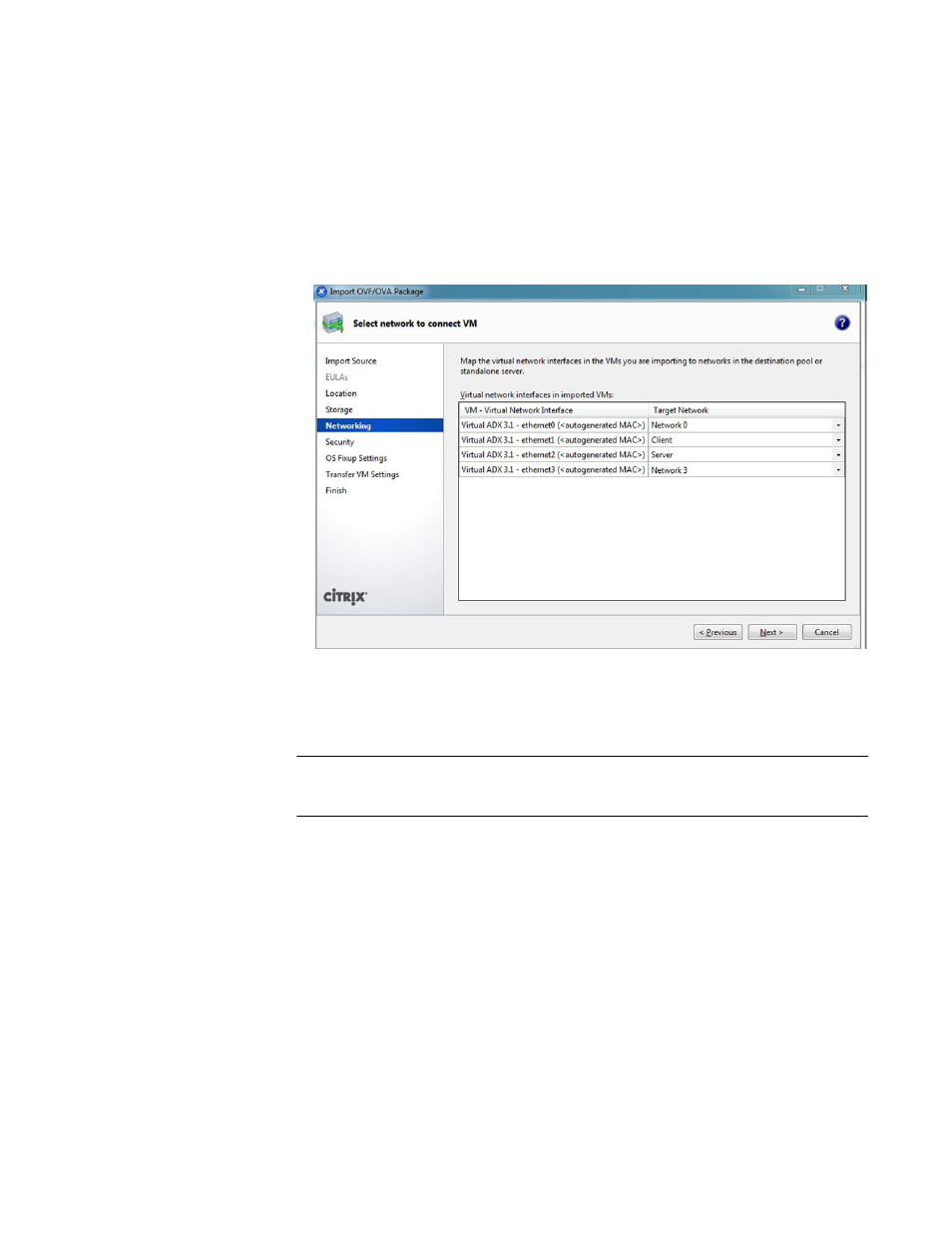

FIGURE 20 XenCenter: Map networks
e)
Click Next , and select the default options until the Transfer VM Settings section.
f)
In the Transfer VM Settings section select the Network through which the XenServer host
can connect to the OVA file location and provide a static IP address if that network does not
have a DHCP server running.
NOTE
The static IP address is only needed until the Brocade Virtual ADX VM deployment
completes. It is not related to the mgmt1 IP assignment.
Brocade Virtual ADX Installation on Citrix XenServer
Brocade Virtual ADX Installation and Deployment Guide
49
53-1003241-01
