Removing a transceiver, Figure 28, Figure 29 – Brocade VDX 8770-4 Hardware Reference Manual User Manual
Page 97: Optical transceive

Brocade VDX 8770-4 Hardware Reference Manual
77
53-1002563-04
SFP transceiver removal and replacement
5

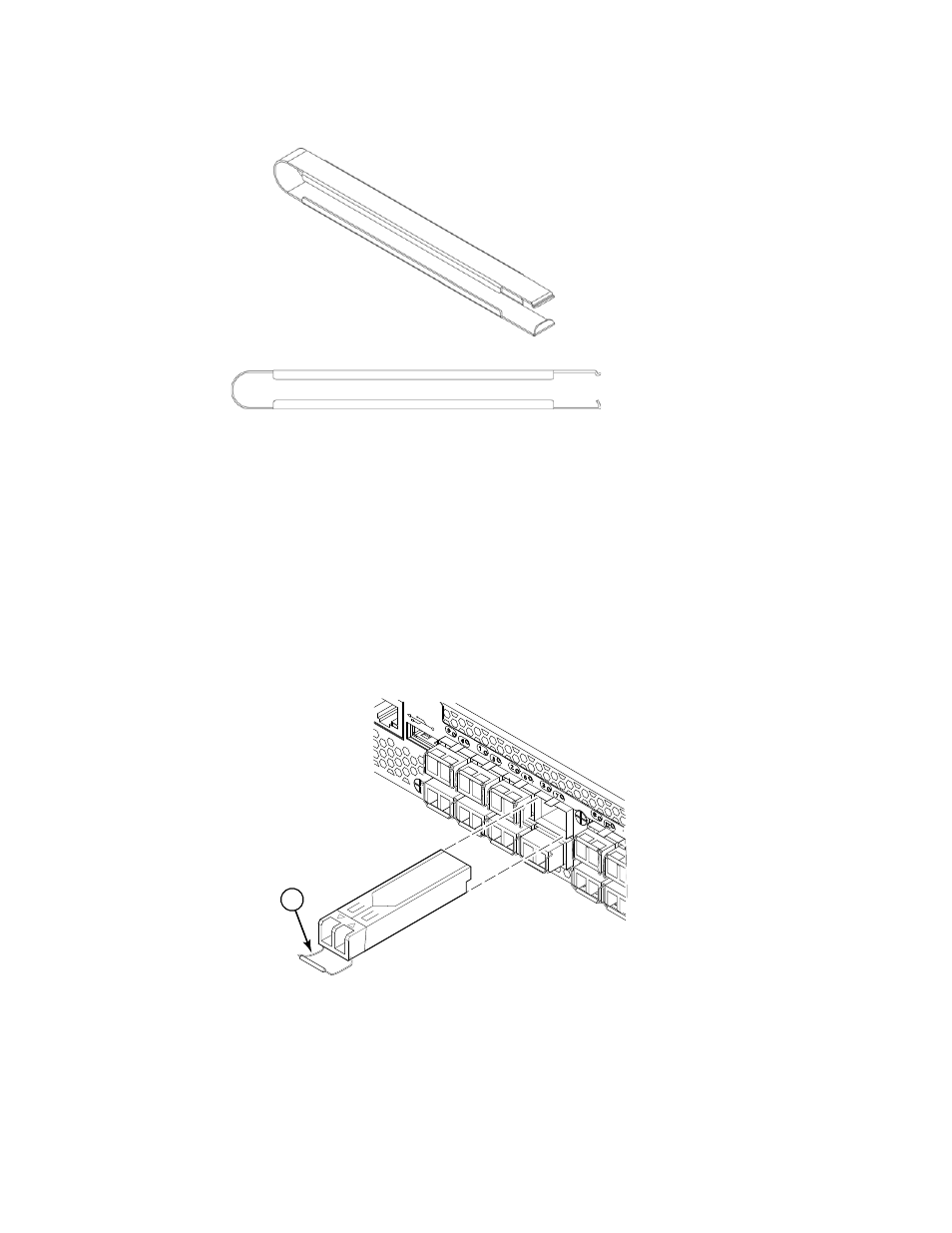

FIGURE 28
Optical transceiver extraction tool
Removing a transceiver
For the following procedure, refer to
Complete the following steps to remove an SFP or SFP+ transceiver.
1. Remove any cables that are inserted into the transceiver. Use the extraction tool to open the
cable latching mechanism.
2. Using the hooked end of the tool, pull the bail (wire handle) away from its pivot point and out,
sliding the transceiver out of the switch or module.
FIGURE 29
Optical transceiver with bail open
1
SFP or SFP+ bail
!
1
