Air filter removal and replacement
5
The filters are single use and non-recyclable. They have a UL fire rating of FLAME RETARDANT, UL
94HF-1 UAF and PPI measurement of 25.
Time and items required
The replacement procedure for the air filter takes less than 5 minutes. Be sure to have the
following items available:
• New air filter
• A #2 Phillips screwdriver
Replacing the front air filter
Use this illustration as a reference. The front air filter is used with the Intake Air Duct Rack Kit. The
chassis is shown in a flush-mount rack configuration, but the mounting of the air filter is the same
for the recessed-mount rack configuration.

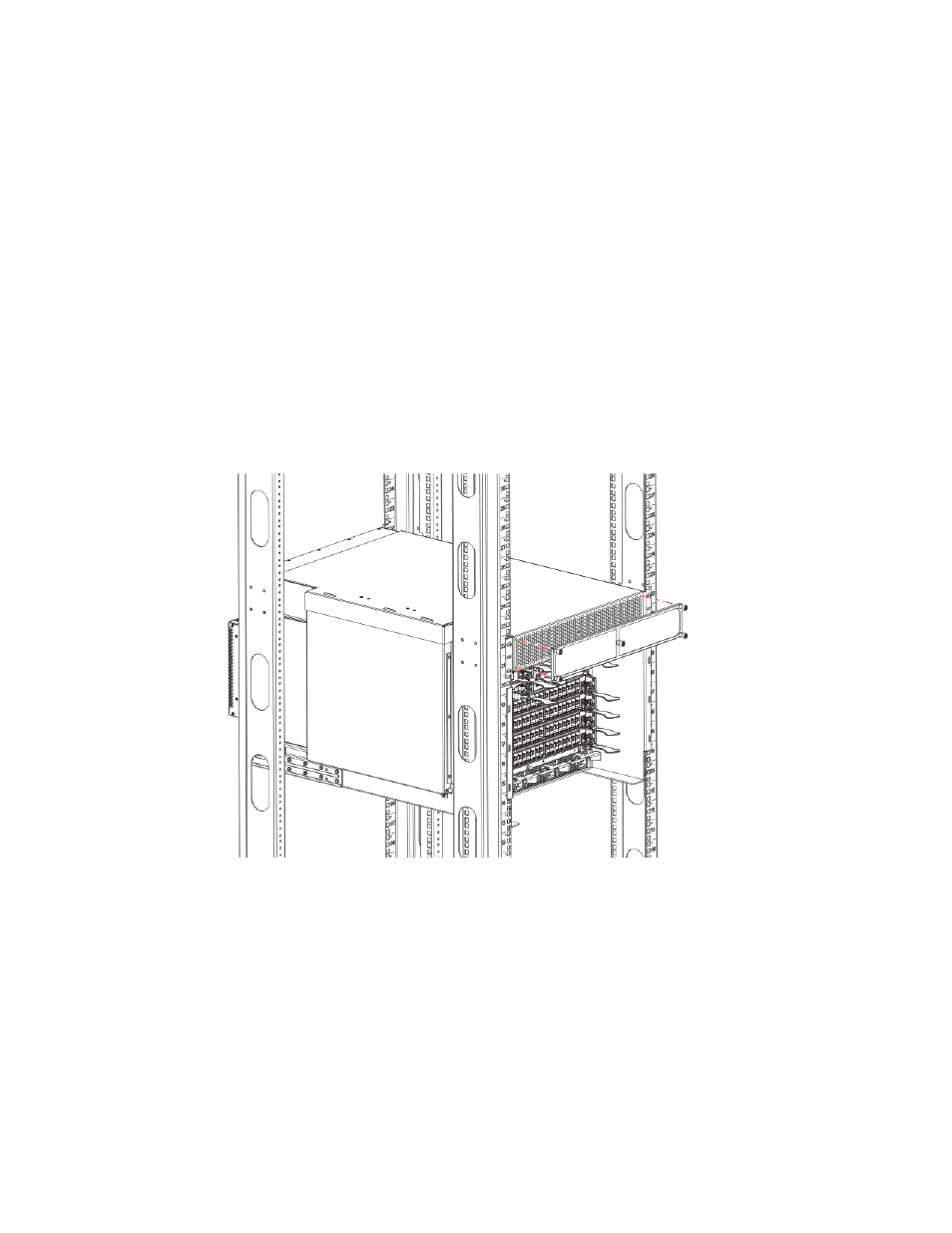

FIGURE 26 Removal and replacement of the front air filter
Removing a front air filter
Complete the following steps to remove a front air filter from the air intake.
1. While holding the air filter in place, unscrew the five captive mounting screws using the #2
Phillips screwdriver.
2. Carefully remove the air filter from the air intake.
