58

Brocade VDX 8770-4 Hardware Reference Manual

53-1002563-04

Cable management finger assembly removal and replacement

5

Cable management finger assembly removal and replacement

The Brocade VDX 8770-4 comes equipped with two vertical cable management finger assemblies.
It can continue to operate during the replacement of the cable management fingers. Due to the
horizontal orientation of the line cards in the Brocade VDX 8770-4, the cable management finger
assemblies are attached to the uprights of the mounting rack. Refer to

Figure 19

for this

procedure.

Time and items required

The replacement procedure for the cable management finger assembly takes less than 5 minutes.
A #1 Phillips screwdriver is required.

Removing a cable management finger assembly

Complete the following steps to remove the cable management finger assembly. Refer to

Figure 19

for the location of the assembly.

1. Remove the cables from the cable management finger assembly and rearrange the cables

around the it.

2. Unscrew and save the three screws holding the cable management finger assembly to the rack

upright. Support the assembly to prevent it from falling.

3. Remove the cable management finger assembly.

4. If necessary, repeat step 1 through step 3 for the other cable management finger assembly.

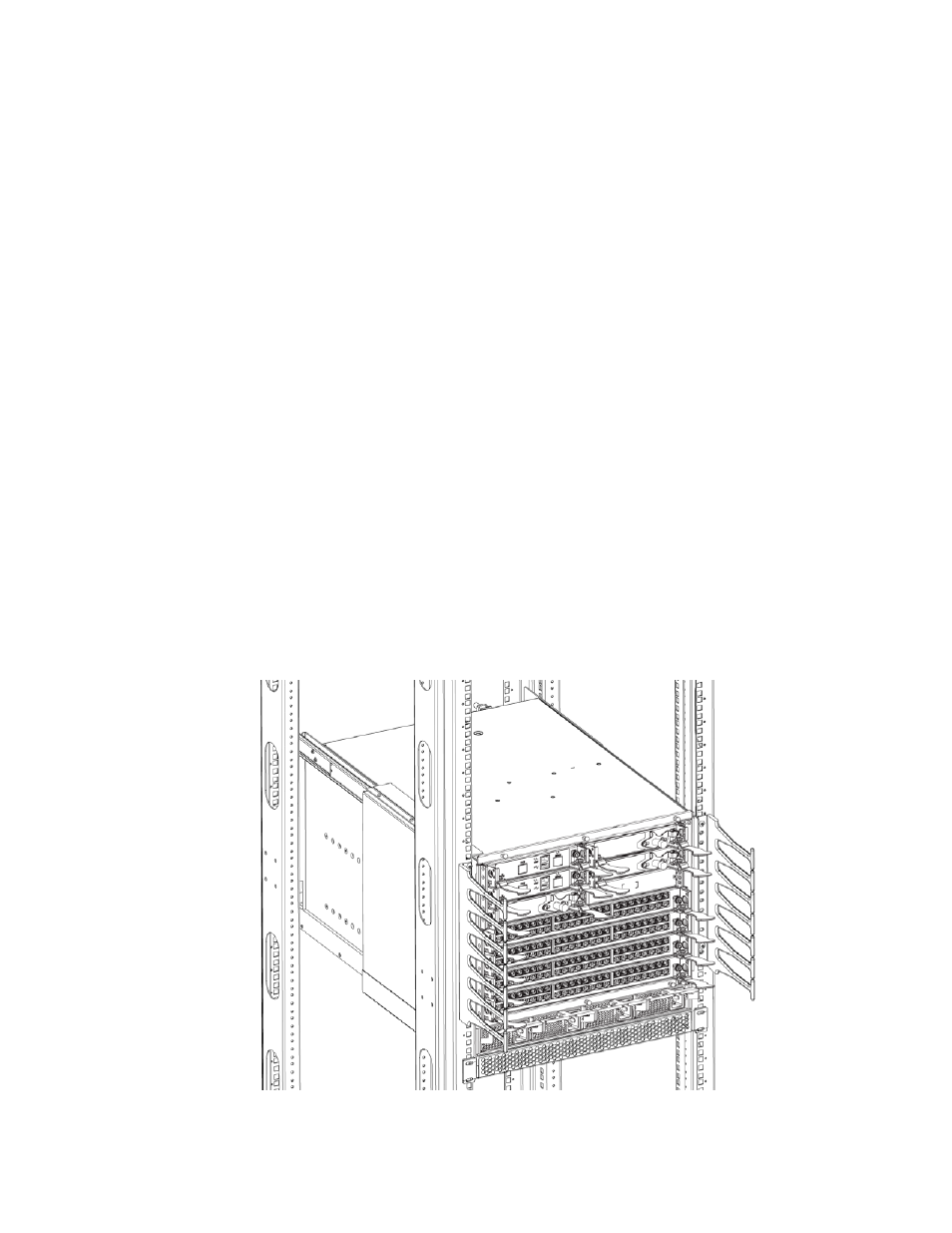

FIGURE 19

Removal and replacement of the vertical cable management finger assemblies
