<5. Actions of External Input and Output Signals >
IM 11B03A03-01E
3rd Edition : Aug. 23. 2006-00
5.1.1
When Actual Stream is Specified for Stream Number (without
Stream Identification Signal)

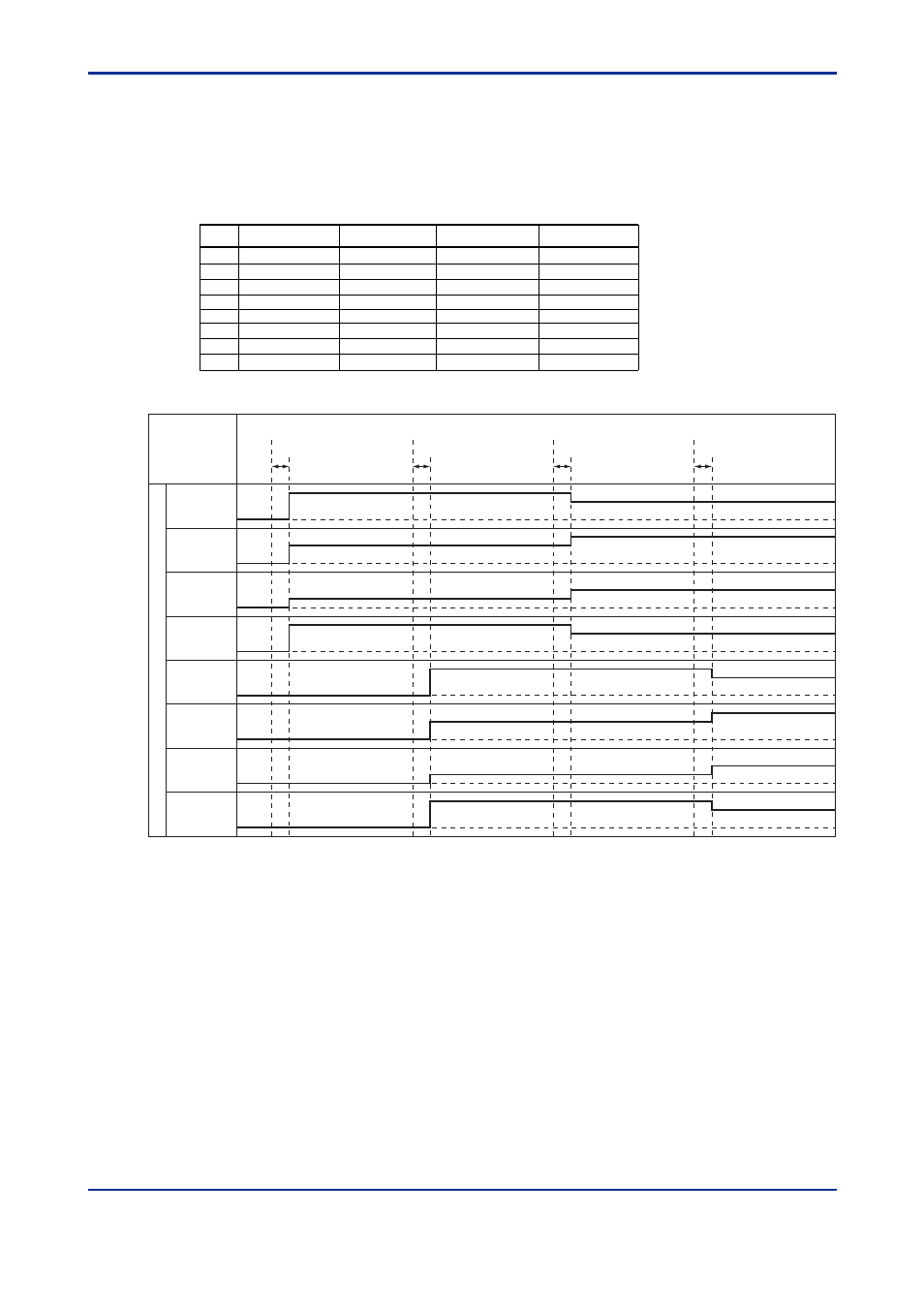

An action when analog hold output is specified as shown in Table 5.1, is illustrated in Figure
5.1.
Table 5.1 Setting of Analog Output
Output stream #1
CH.1
CH.2
CH.3
CH.4
CH.5
CH.6
CH.7
CH.8
1
1
1
1
2
2
2
2
Output peak #1
1
2
3
4
1
2
3
4
Output stream #2
None
None
None
None
None
None
None
None
Output peak #2
None
None
None
None
None
None
None
None
T0501.EPS
F0501.EPS
*1
*1
*1
*1
Stream 1
End of Analysis
Stream 2
End of Analysis
Stream 1
End of Analysis
Stream 2
End of Analysis
CH.1
CH.2
CH.3
CH.4
CH.5
CH.6
CH.7
CH.8
Analog Hold Output
End of Analysis: Time when the final peak detection is completed or peak detection stop time.
*1:
One to two seconds (depending on analysis specifications)
Figure 5.1
Action of Analog Output
