<3. Overview >
3-1
IM 11B03A03-01E 3rd Edition : Aug. 23. 2006-00
3. System Configuration
3.1 Type and Appearance
The GC1000 Process Gas Chromatographs consist of (A) a protection system, (B) an
electronic section, (C) a pressure and flow control section, (D) an isothermal oven, (E) a
programmed-temperature oven (GC1000D / GC1000T / GC1000W) and (F) an analyzer
base sampling section (see Figure 3.1).
Note: There are two types of analyzer base sampling section, either the built-in type within GC1000 (the sample processor is
embedded), or the external type (the sample processor is separate). Select the type best suited to the intended usage.
Display Explosion proof enclosures
(number depends on
specifications)
Terminal section
EPC box
(in the case that EPC is installed)
(C) Pressure and
flow control section
(A) Protection system
(B) Electronic section
(D) Isothermal oven
(E) Programmed-temperature
oven
(F) Analyzer base
sampling section
(Note)
F0301.EPS

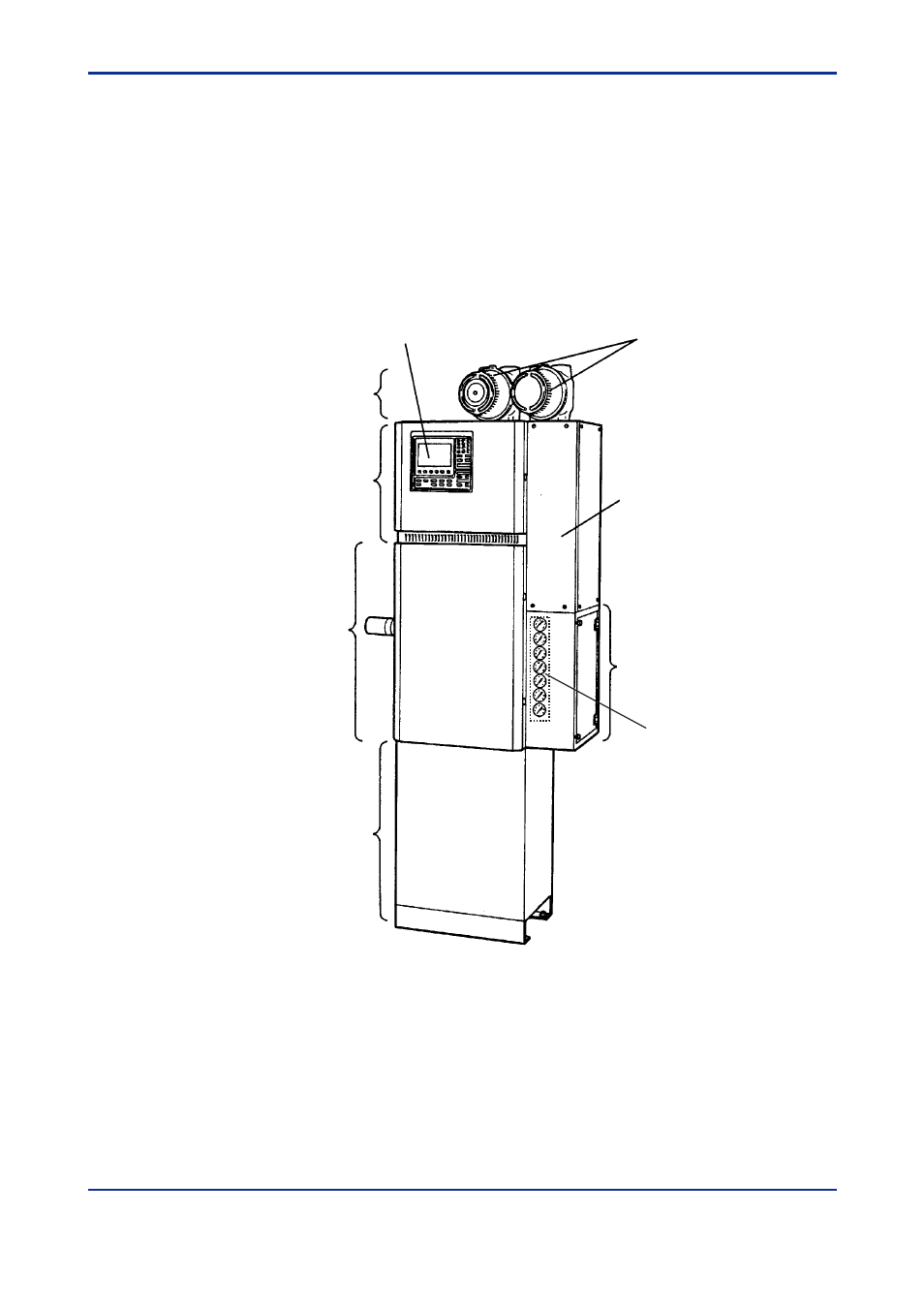

Figure 3.1Analyzer Components
