<4. Outline of Software >

4-19

IM 11B03A03-01E

• Manual Validation

The same action is performed when the validation is specified at any timing during analy-
sis.

(1)

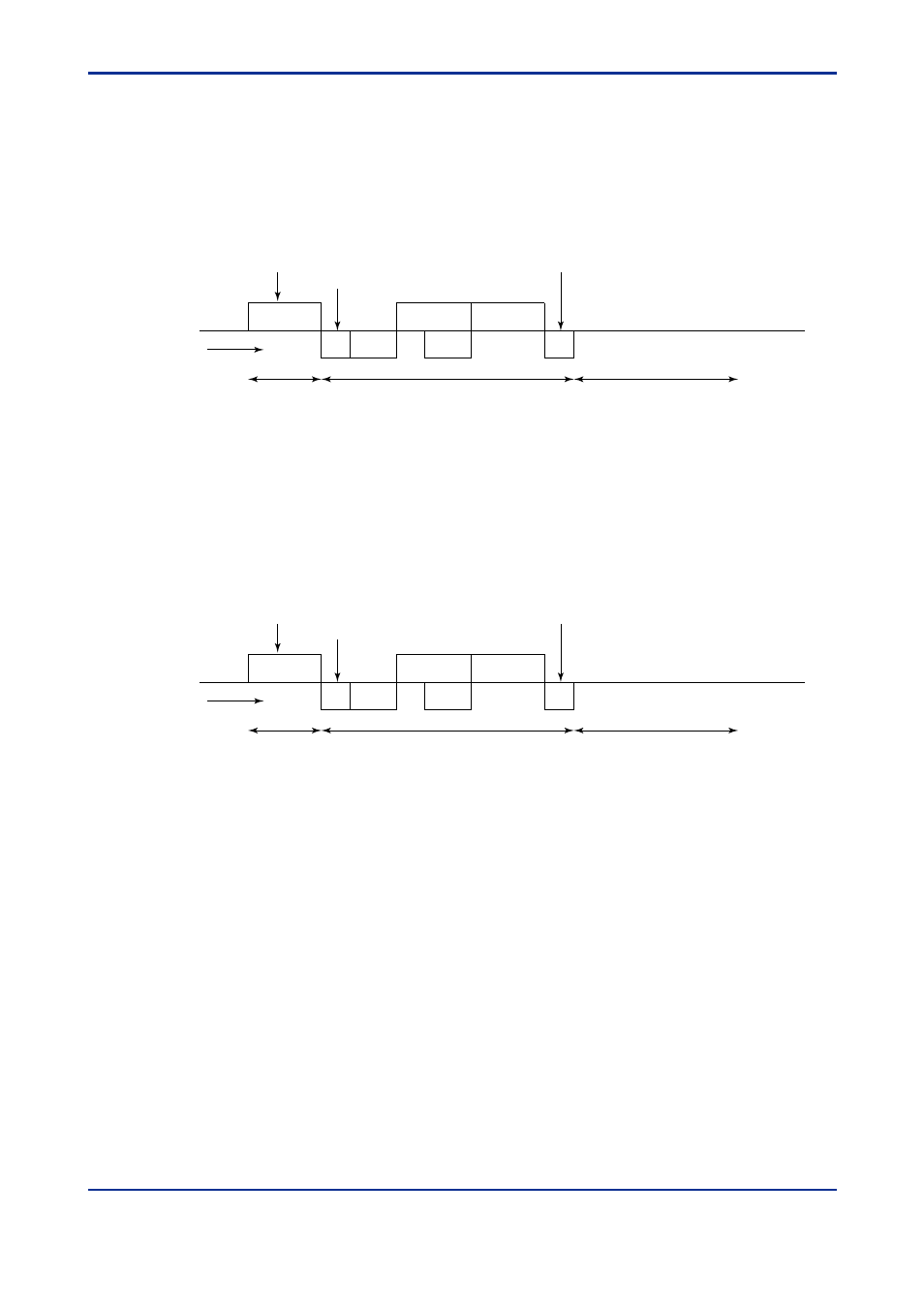

An actin when Validation 1 is specified while the measurement status is in Stream
Sequence 1 and the operation mode is in Run, is shown in Figure 4.23. After Valida-
tion 1 has been completed, the measurement status returns to Stream Sequence 1
and the operation mode turns to Stop.

Starting the validation

Finishing the validation

Select the Validation 1

Time

Stream Sequence 1

Validation 1

S1 to S9: Analysis cycles for streams 1 to 9

W1 to W9: Warming up time for streams 1 to 9

TE: Displacement enabled (repeat of 20-second cycle)

F0423.EPS

Figure 4.23

Action of Manual Validation (1)

(2)

An action when Validation 1 is specified while the measurement status is in Stream
(continuous) 1 and the operation mode is in Run, is shown in Figure 4.24. After
Validation 1 has been completed, the measurement status returns to stream (continu-
ous) 1 and the operation mode turns to Stop.

Starting the validation

Finishing the validation

Select the Validation 1

Time

Stream (Cont) 1

Validation 1

S1, 9: Analysis cycles for streams 1 and 9

W1, W9: Warming up time for streams 1 and 9

TE: Displacement enabled (repeat of 20-second cycle)

F0424.EPS

Figure 4.24

Action of Manual Validation (2)

(3)

When Validation 1 is specified while the measurement status is in Stream Sequence 1
to 4 or in Stream (continuous) 1 to 31 and the operation mode is in Stop or in Pause,
displacement become available immediately. The following actions are the same as
those described in (1) or (2). Refer to the action after the start of validation in Figure
4.23 or Figure 4.24. The same action is performed when Validation 2 or 3 is specified.
