<4. Outline of Software >
IM 11B03A03-01E
4.4.4 Actions of Calibration
Calibration 1 to 3 is allowed to be specified only when the measurement status is in Stream
Sequence 1 to 4 or in Stream (continuous) 1 to 4. Actions are different according to the
specified calibration (validation) method.
• Automatic Calibration
The same action is performed when the starting time comes at any timing during analysis.
(1) An action when the starting time of Automatic Calibration 1 comes while the measure-
ment status is in Stream Sequence 1 and the operation mode is in Run, is shown in
Figure 4.13.
W7 W8 W3 W1 W2
S1 S2 S7
W7
S7 S8 S3
Starting time of Automatic Calibration 1
Time
Stream Sequence 1 Stream Sequence 1 Calibration 1
S1 to S8: Analysis cycles for streams 1 to 8
W1 to W8: Warming up time for streams 1 to 8
F0413.EPS

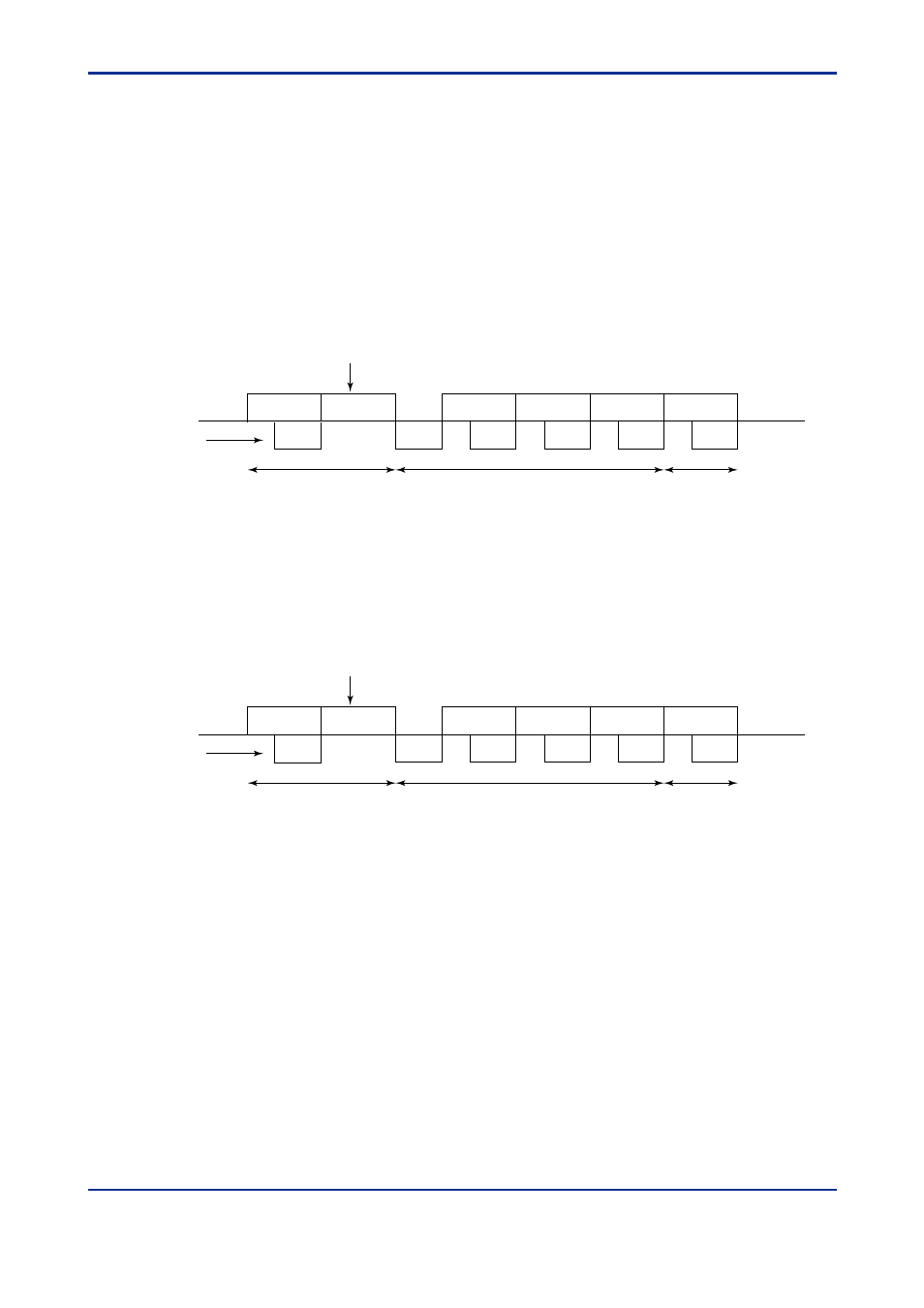

Figure 4.13 Action of Automatic Calibration (1)
(2) An action when the starting time of Automatic Calibration 1 comes while the measure-
ment status is in Stream (continuous) 1 and the operation mode is in Run, is shown in
Figure 4.14.
W7 W8 W1 W1 W1
S1 S1 S7
W7
S7 S8 S1
Starting time of Automatic Calibration 1
Time
Stream (Cont) 1 Stream (Cont) 1 Calibration 1
S1 to S8: Analysis cycles for streams 1 to 8
W1 to W8: Warming up time for streams 1 to 8
F0414.EPS
Figure 4.14 Action of Automatic Calibration (2)
