<4. Outline of Software >
4-17
IM 11B03A03-01E
4.4.5 Actions of Validation
Validation 1 to 3 is allowed to be specified only when the measurement status is in Stream
Sequence 1 to 4 or in Stream (continuous) 1 to 31. Actions are different according to
settings. The same action is performed when the starting time comes at any timing during
analysis.
• Automatic Validation

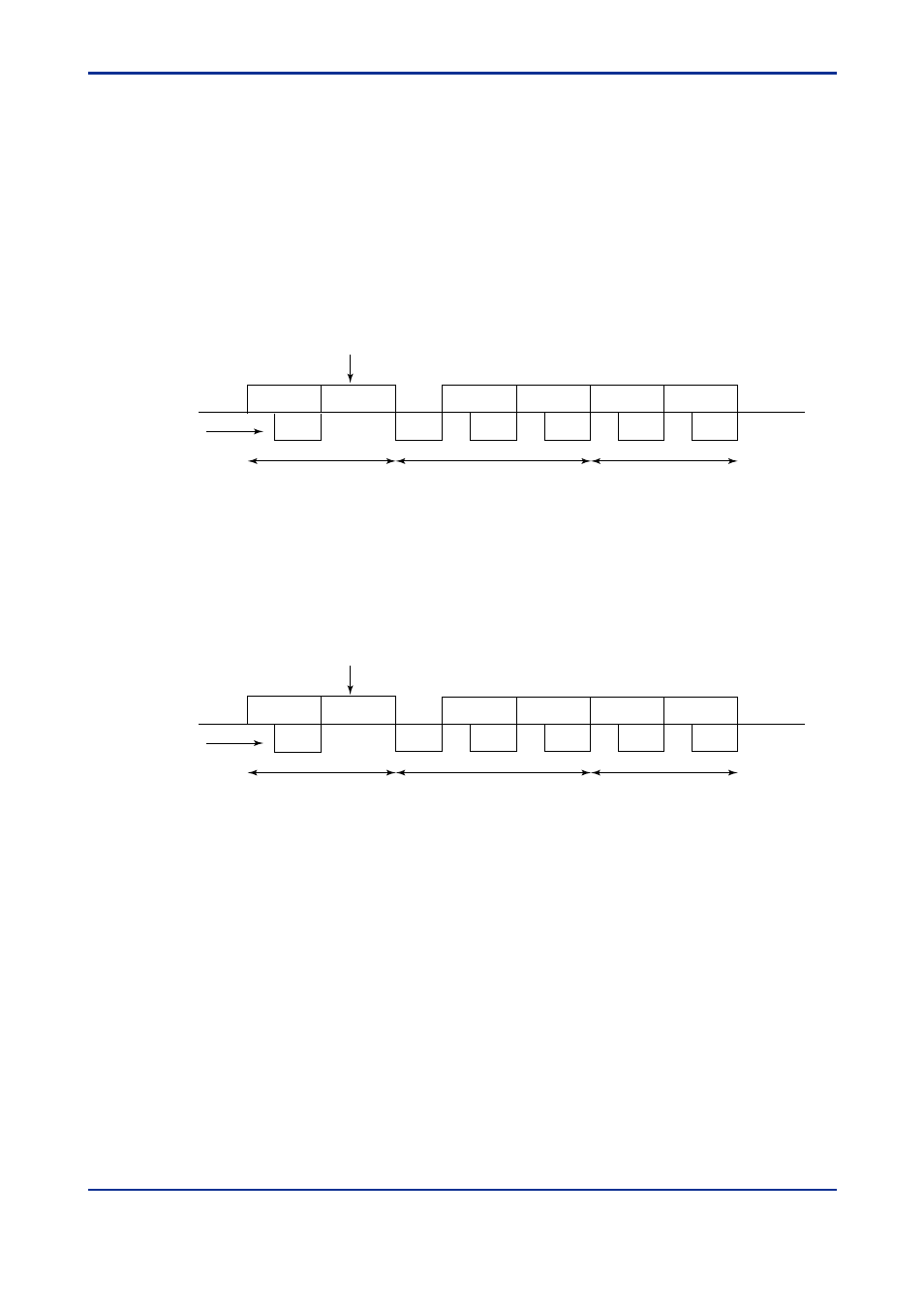

(1) An action when the starting time of Automatic Validation 1 comes while the measure-
ment status is in Stream Sequence 1 and the operation mode is in Run, is shown in
Figure 4.19.
W9 W3 W1 W2 W2
S1 S2 S9
W9
S9 S3 S1
Starting time of Automatic Validation 1
Time
Stream Sequence 1 Stream Sequence 1 Validation 1
S1 to S9: Analysis cycles for streams 1 to 9
W1 to W9: Warming up time for streams 1 to 9
F0419.EPS
Figure 4.19 Action of Automatic Validation (1)
(2) An action when the starting time of Automatic Validation 1 comes while the measure-
ment status is in Stream (continuous) 1 and the operation mode is in Run, is shown in
Figure 4.20.
W9 W1 W1 W1 W1
S1 S1 S9
W9
S9 S1 S1
Starting time of Automatic Validation 1
Time
Stream (Cont) 1 Stream (Cont) 1 Validation 1
S1, S9: Analysis cycles for streams 1 and 9
W1, W9: Warming up time for streams 1 and 9
F0420.EPS
Figure 4.20 Action of Automatic Validation (2)
3rd Edition : Aug. 23. 2006-00
