4-16
<4. Outline of Software >
IM 11B03A03-01E
• Manual Calibration
The same action is performed when the calibration is specified at any timing during analy-
sis.
(1) An action when Calibration 1 is specified while the measurement status is in Stream
Sequence 1 and the operation mode is in Run, is shown in Figure 4.17. After Calibra-
tion 1 has been completed, the measurement status returns to Stream Sequence 1
and the operation mode turns to Stop.
W7 W8 W7
S1 S7
TE TE
S7 S8
Starting the calibration
Finishing the calibration Select the Calibration 1
Time
Stream Sequence 1 Stream Sequence 1 Calibration 1
S1 to S8: Analysis cycles for streams 1 to 8
W1 to W8: Warming up time for streams 1 to 8
TE: Displacement enabled (repeat of 20-second cycle)
F0417.EPS

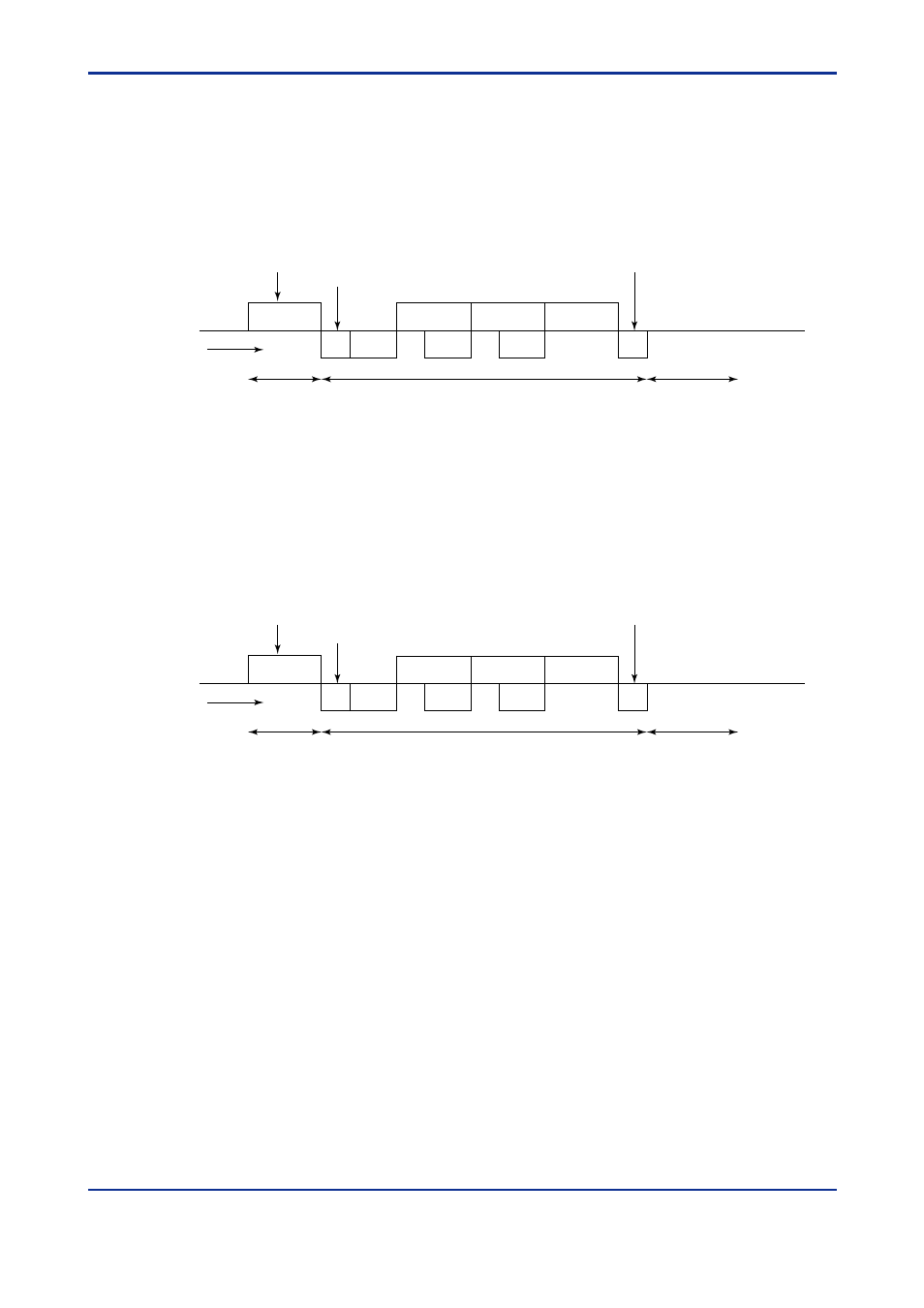

Figure 4.17 Action of Manual Calibration (1)
(2) An action when Calibration 1 is specified while the measurement status is in Stream
Sequence (continuous) 1 and the operation mode is in Run, is shown in Figure 4.18.
After Calibration 1 has been completed, the measurement status returns to Stream
(continuous) 1 and the operation mode turns to Stop.
W7 W8 W7
S1 S7
TE TE
S7 S8
Starting the calibration
Finishing the calibration Select the Calibration 1
Time
Stream (Cont) 1 Stream (Cont) 1 Calibration 1
S1 to S8: Analysis cycles for streams 1 to 8
W1 to W8: Warming up time for streams 1 to 8
TE: Displacement enabled (repeat of 20-second cycle)
F0418.EPS
Figure 4.18 Action of Manual Calibration (2)
(3) When calibration 1 is specified while the measurement status is in Stream Sequence
1 to 4 or in Stream (continuous) 1 to 31 and the operation mode is in Stop or in Pause,
displacement become available immediately. The following actions are the same as
those described in (1) or (2). Refer to the action after the start of calibration in Figure
4.17 or Figure 4.18. The same action is performed when Calibration 2 or 3 is speci-
fied.
3rd Edition : Aug. 23. 2006-00
