<4. Outline of Software >
IM 11B03A03-01E
(4)

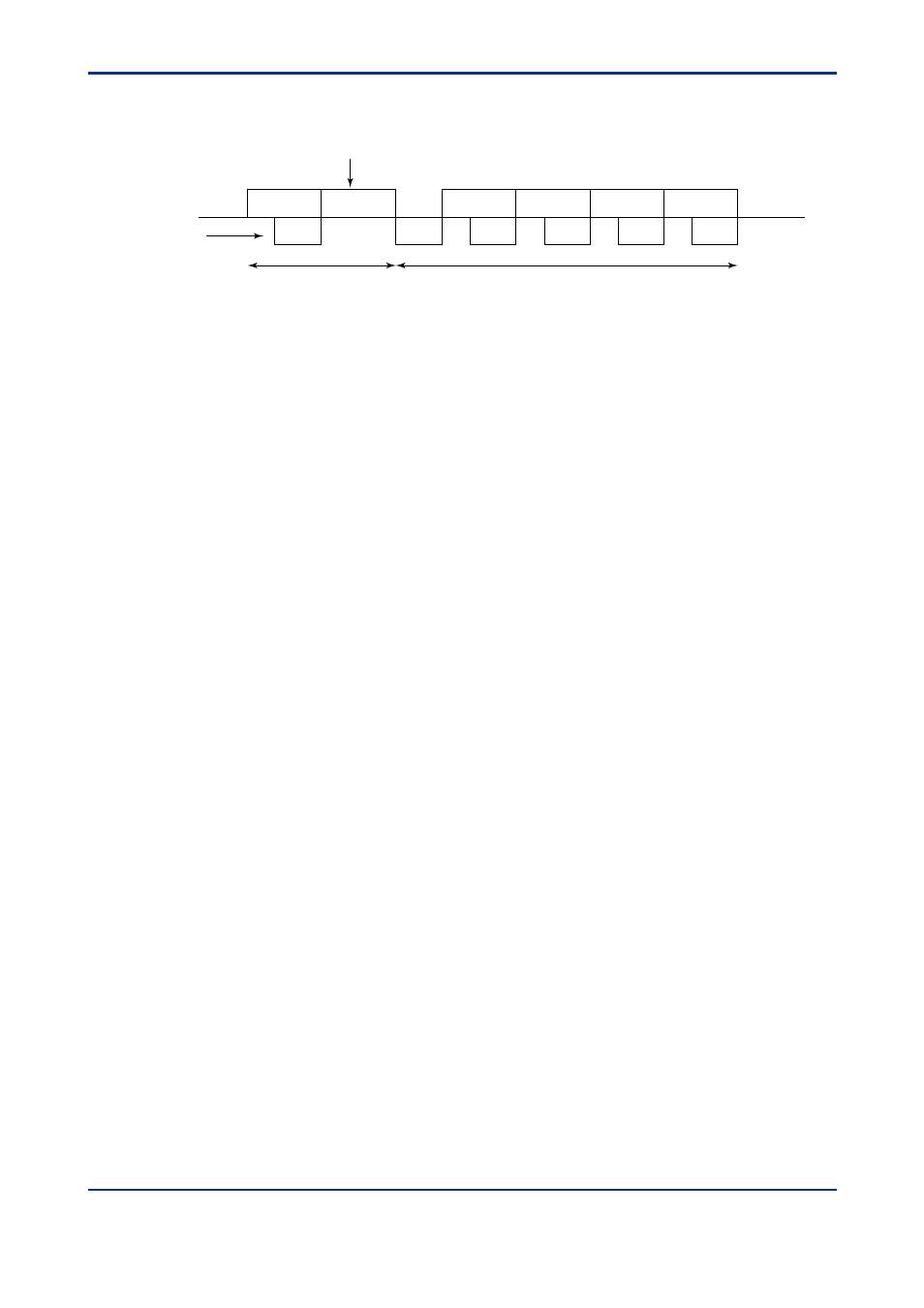

An action when Stream (continuous) 4 is specified while the measurement status is in
Stream Sequence 1 and the operation mode is in Run, is shown in figure 4.11.
W4
W4
W4
W4
W2
S1
S2
S4
W4
S4
S4
S4
Select the Stream (cont) 4
Time
Stream Sequence 1
Stream (Cont) 4
S1 to S4: Analysis cycles for streams 1 to 4
W1 to W4: Warming up time for streams 1 to 4
F0411.EPS
Figure 4.11
Action of Stream (Continuous) (4)
(5)
When stream (continuous) 1 is specified while the measurement status is in Stream
Sequence 1 to 4 or in Stream (continuous) 2 to 31 and the operation mode is in Stop
or in Pause, the measurement status is immediately changed to Stream (continuous)
1 and the operation mode to Stop. The same action is performed when Stream
(continuous) 2 to 31 is specified.
