4-18
<4. Outline of Software >
IM 11B03A03-01E
• Semiautomatic Validation
The same action is performed when the validation is specified at any timing during analy-
sis.

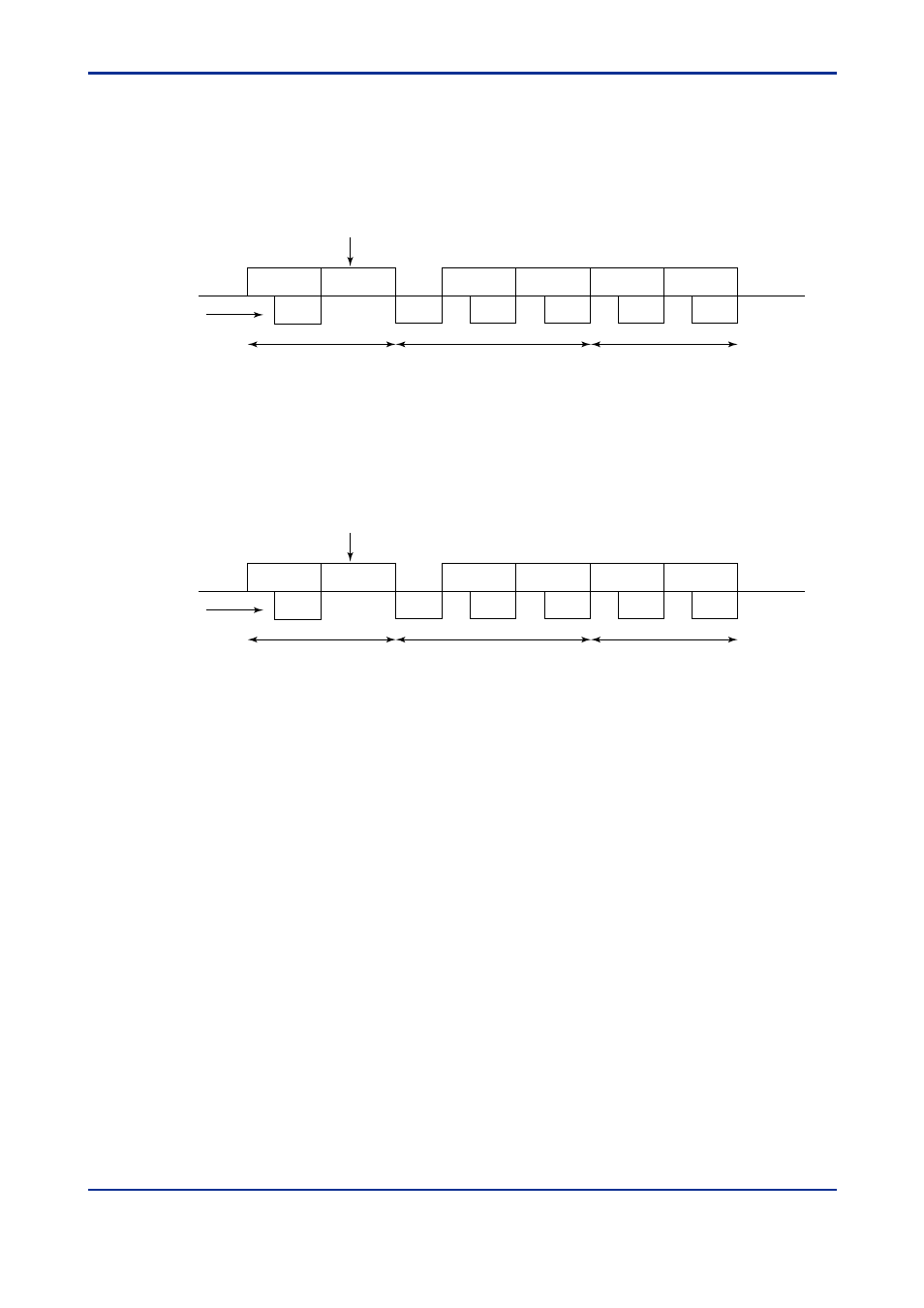

(1) An action when Validation 1 is specified while the measurement status is in Stream
Sequence 1 and the operation mode is in Run, is shown in Figure 4.21.
W9 W3 W1 W2 W2
S1 S2 S9
W9
S9 S3 S1
Select the Validation 1
Time
Stream Sequence 1 Stream Sequence 1 Validation 1
S1 to 9: Analysis cycles for streams 1 to 9
W1 to W9: Warming up time for streams 1 to 9
F0421.EPS
Figure 4.21 Action of Semiautomatic Validation (1)
(2) An action when Validation 1 is specified while the measurement status is in Stream
(continuous) 1 and the operation mode is in Run, is shown in Figure 4.22.
W9 W1 W1 W1 W1
S1 S1 S9
W9
S9 S1 S1
Select the Validation 1
Time
Stream (Cont) 1 Stream (Cont) 1 Validation 1
S1, 9: Analysis cycles for streams 1 and 9
W1, W9: Warming up time for streams 1 and 9
F0422.EPS
Figure 4.22 Action of Semiautomatic Validation (2)
(3) When Validation 1 is specified while the measurement status is in Stream Sequence 1
to 4 or in Stream (continuous) 1 to 31 and the operation mode is in Stop or in Pause,
the measurement status is immediately changed to Validation 1 and then Validation 1
is performed. After Validation 1 has been completed, the previous measurement
status is retrieved and the operation mode turns to Stop. The same action is per-
formed when Validation 2 or 3 is specified.
3rd Edition : Aug. 23. 2006-00
