<4. Outline of Software >

4-13

IM 11B03A03-01E

4.4.3

Actions of Stream (1 cycle)

Stream (1 cycle) 1 to 31 is allowed to be specified only when the measurement status is in
Stream Sequence 1 to 4. The same action is performed when the Stream (1 cycle) is
specified at any timing during analysis.

(1)

When Stream (1 cycle) 1 to 31 is specified while the measurement status is in Stream
Sequence 1 to 4 and the operation mode is in Stop or in Pause, the specified stream
is measured once and then the measurement status turns to Stream Sequence 1 and
the operation mode returns to Stop.

(2)

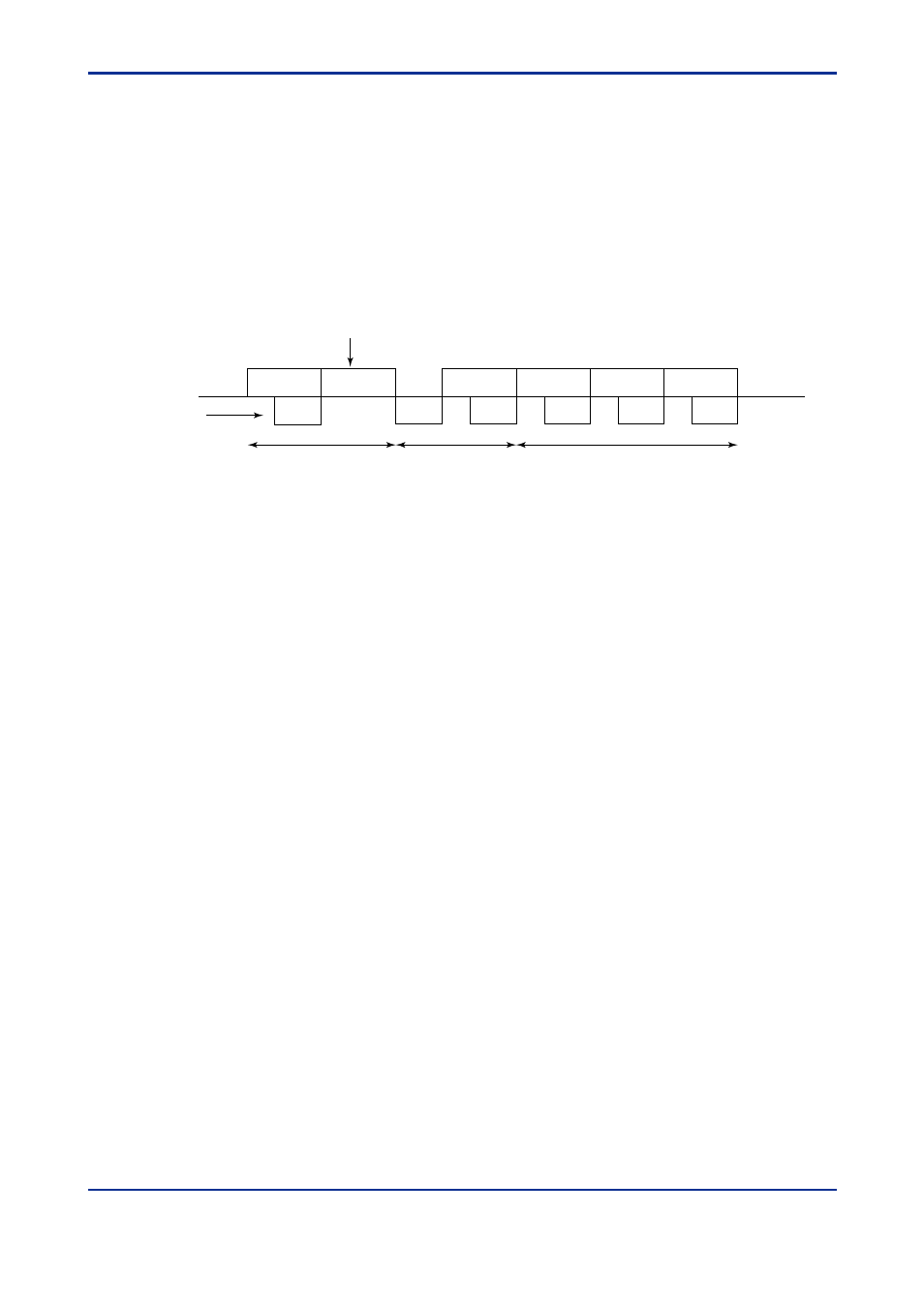

An action when Stream (1 cycle) 4 is specified while the measurement status is in
Stream Sequence 1 and the operation mode is in Run, is shown in Figure 4.12.

Select the Stream (1 cycle) 4

Time

Stream Sequence 1

Stream (1 cycle) 4

S1 to S4: Analysis cycles for streams 1 to 4

W1 to W4: Warming up time for streams 1 to 4

F0412.EPS

Figure 4.12

Action of Stream (1 cycle)

3rd Edition : Aug. 23. 2006-00
