Web Browser Management

Page 6-10

Span Tree (Spanning Tree) Button

This button opens the Spanning Tree Protocol (STP) Configuration page,
which shows the STP Configuration of the IntraChassis, as shown in Figure 6-
9. STP configuration is explained in Chapter 5, Advanced Management. Click
the STP Port Configuration button to display the STP Configuration settings
for each port.

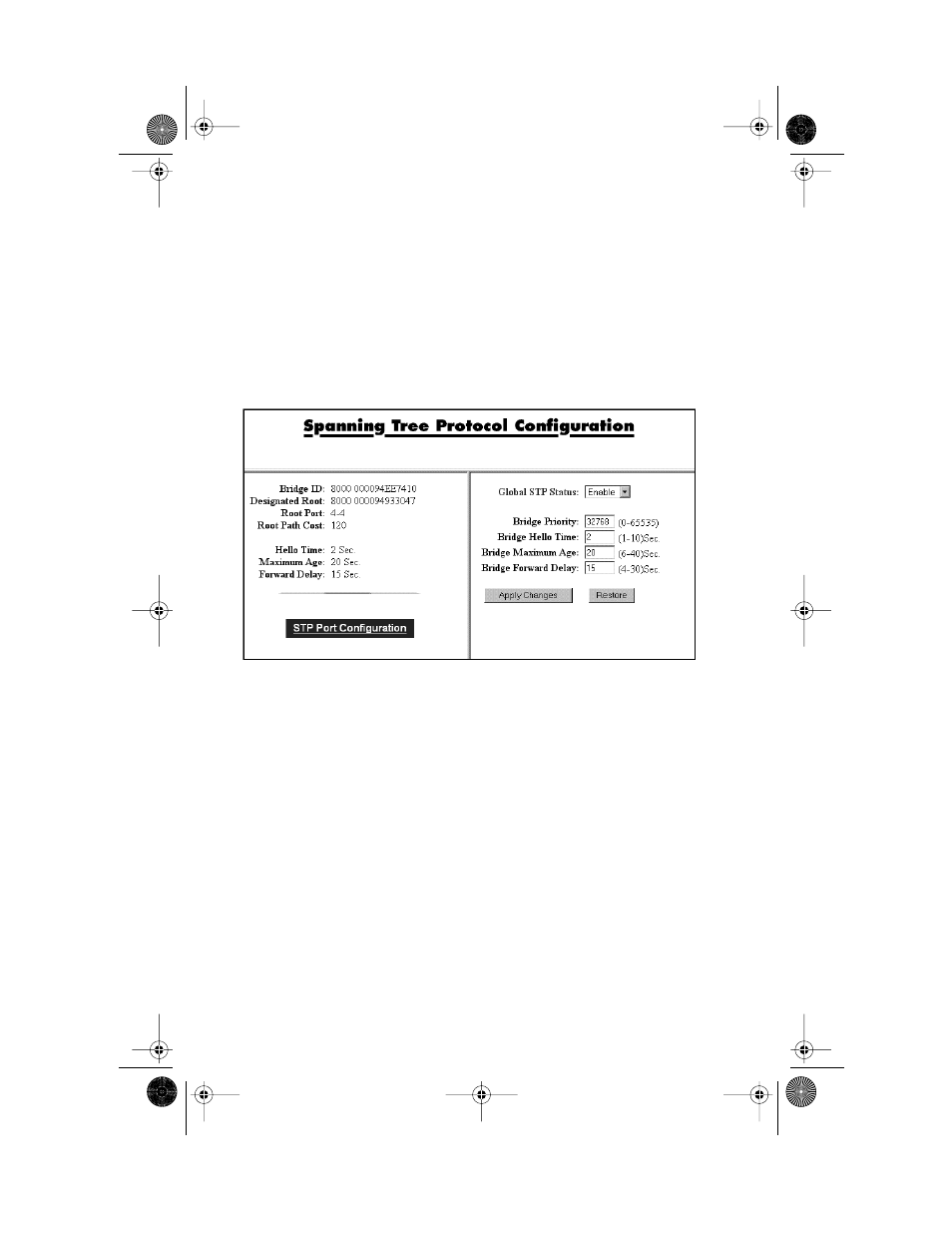

Figure 6-9 Spanning Tree Configuration page

▲ Important: Do NOT configure any STP parameters unless

you have knowledge of and experience with the IEEE
802.1d specification.
