Port Config (Port Configuration) Button
Page 6-9
Port Config (Port Configuration) Button
This button opens the Port Configuration page, which provides a
comprehensive overview of the status of each port on the IntraChassis, as shown
in Figure 6-8. The configuration page for any individual port can be accessed by
single clicking on the associated blue number in the right or left hand margin.

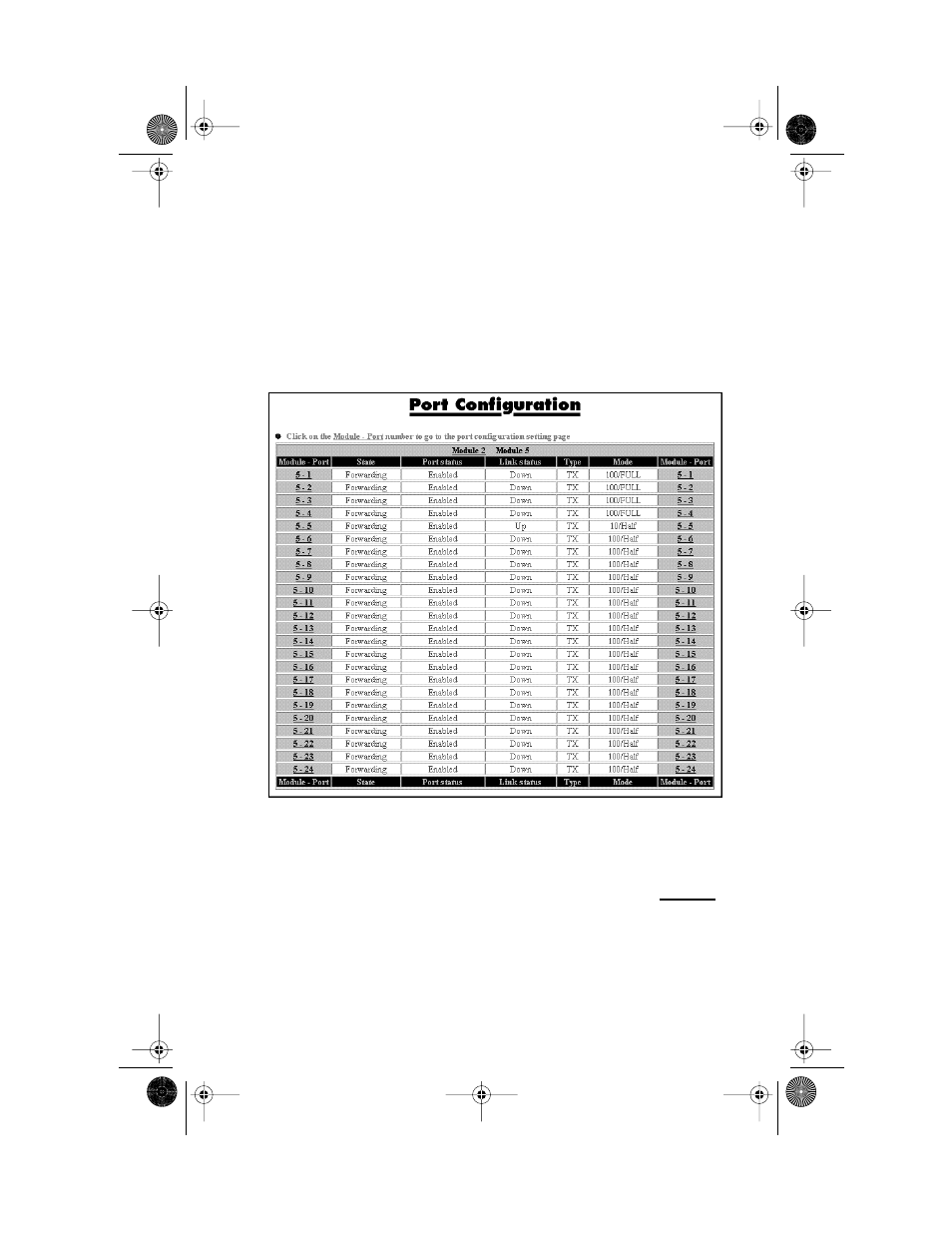

Figure 6-8 Port Configuration table
To view the Port Configuration table for the ports of a different module, click
on the module number link at the top of the table. For example in Figure 6-8,
you could see the table for the ports in Module 2 by clicking on the Module 2
link at the top of the table.
