FP-2500/FP-2600 Series User Manual 7-3
7.2 Periodic Check Points
• The gasket must be inserted correctly into the groove for the FP unit’s
moisture resistance to be equivalent to IP65f.
• Be sure the gasket's seam is not inserted into any of the unit's cor-
ners, only in the straight sections of the groove. Inserting it into a
corner may lead to its eventually tearing.

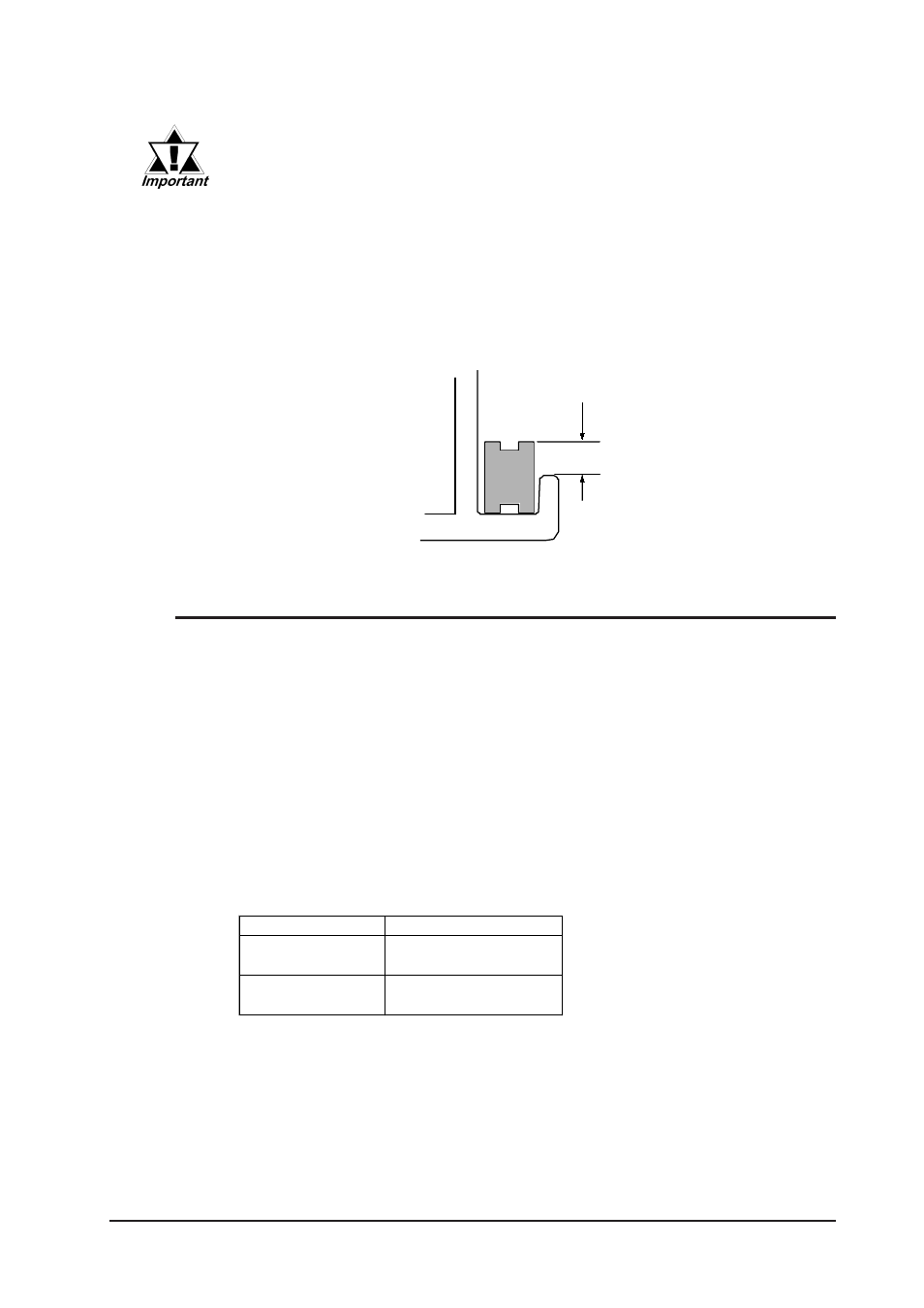

• The upper surface of the gasket should protrude approximately 2mm
out from the groove. Be sure to check that the gasket is correctly in-
serted before installing the FP into a panel.
To keep your FP unit in its best condition, please inspect the following points periodi-
cally.
FP Operation Environment
• Is the ambient temperature within the allowable range (0 o C to 50 o C )?
• Is the ambient humidity within the specified range (30%RH to 90%RH, dry
bulb temperature of 39
o C or less)?
• Is the operating atmosphere free of corrosive gasses?
Electrical Specifications
• Is the Rated Voltage Range appropriate ?
Related Items
• Are all power cords and cables connected properly? Have any become loose?
• Are all installation fasteners holding the unit securely?
• Are there any scratches or traces of dirt on the installation gasket?
7.2 Periodic Check Points
unit: mm [in.]
2.0 [0.08]
FP Model Number Rated Voltage Range
FP2500-T12
FP2600-T12
AC85 to 264V
FP2500-T42-24V
FP2600-T42-24V
DC19.2 to 28.8V
