FP-2500/FP-2600 Series User Manual 3-4
3.1 Installation
Installing the FP

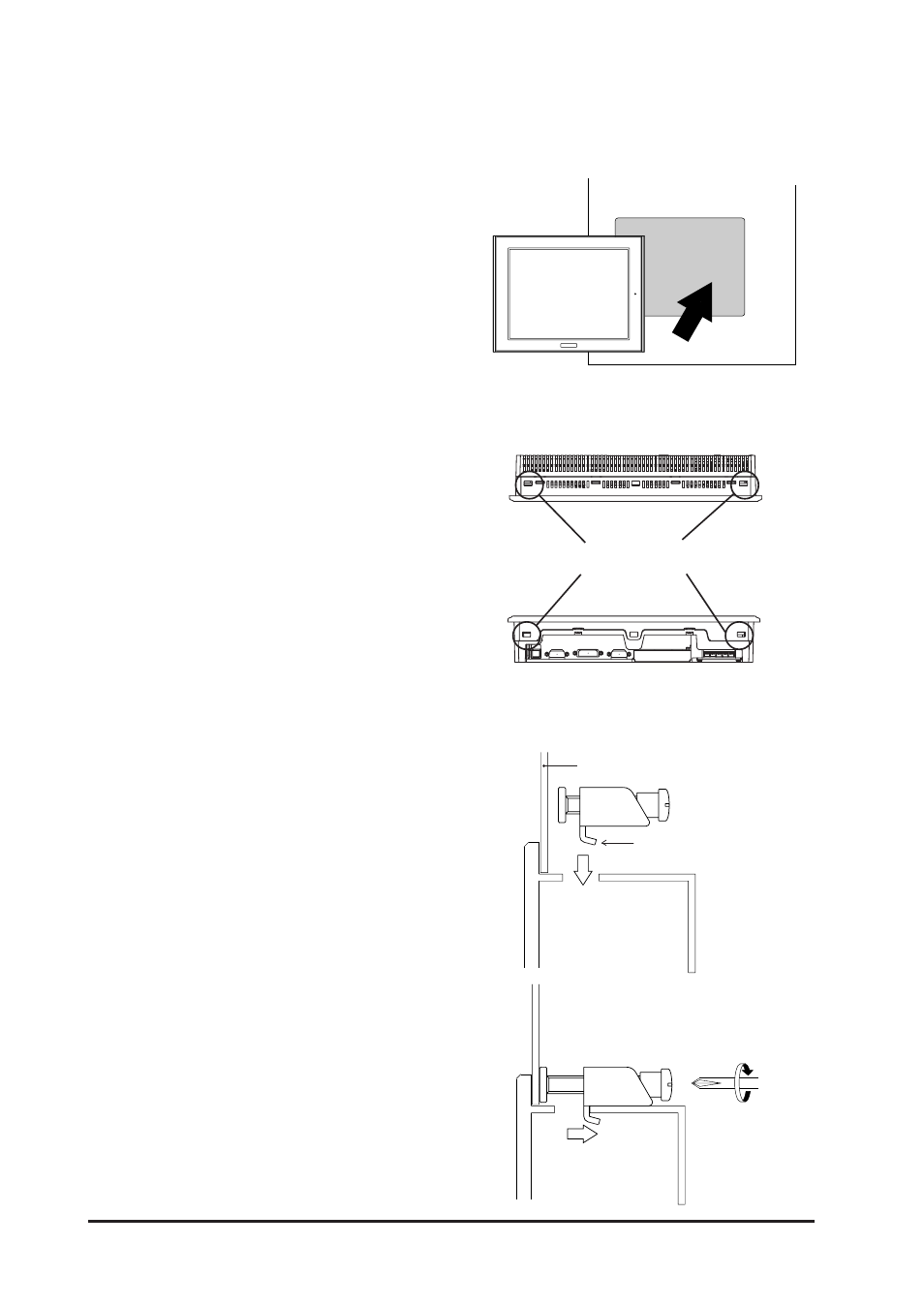

1) Insert the FP into the panel cut,
as shown here.
2) Insert the installation fasteners
into the FP unit’s insertion slots,
at the top and bottom of the
unit. (total:4 slots)
3) Insert each of the fasteners as
shown right. Be sure to pull the
fastener back until it is flush
with the rear of the attachment
hole.
Panel
FP
Panel Cut
Bottom
Insertion Slots
Top
Installation panel
Hook
