Main Screen
PLC Ladder Monitor Operation Manual
3-3
Unsigned decimal/
Signed decimal/
Hexadecimal
This switches between decimal, binary-coded decimal, and hexadecimal
current values. The switch display changes between [Decimal] and
[Hexadecimal] every time it is touched.
• Ccurrent values are displayed in the following two ways:

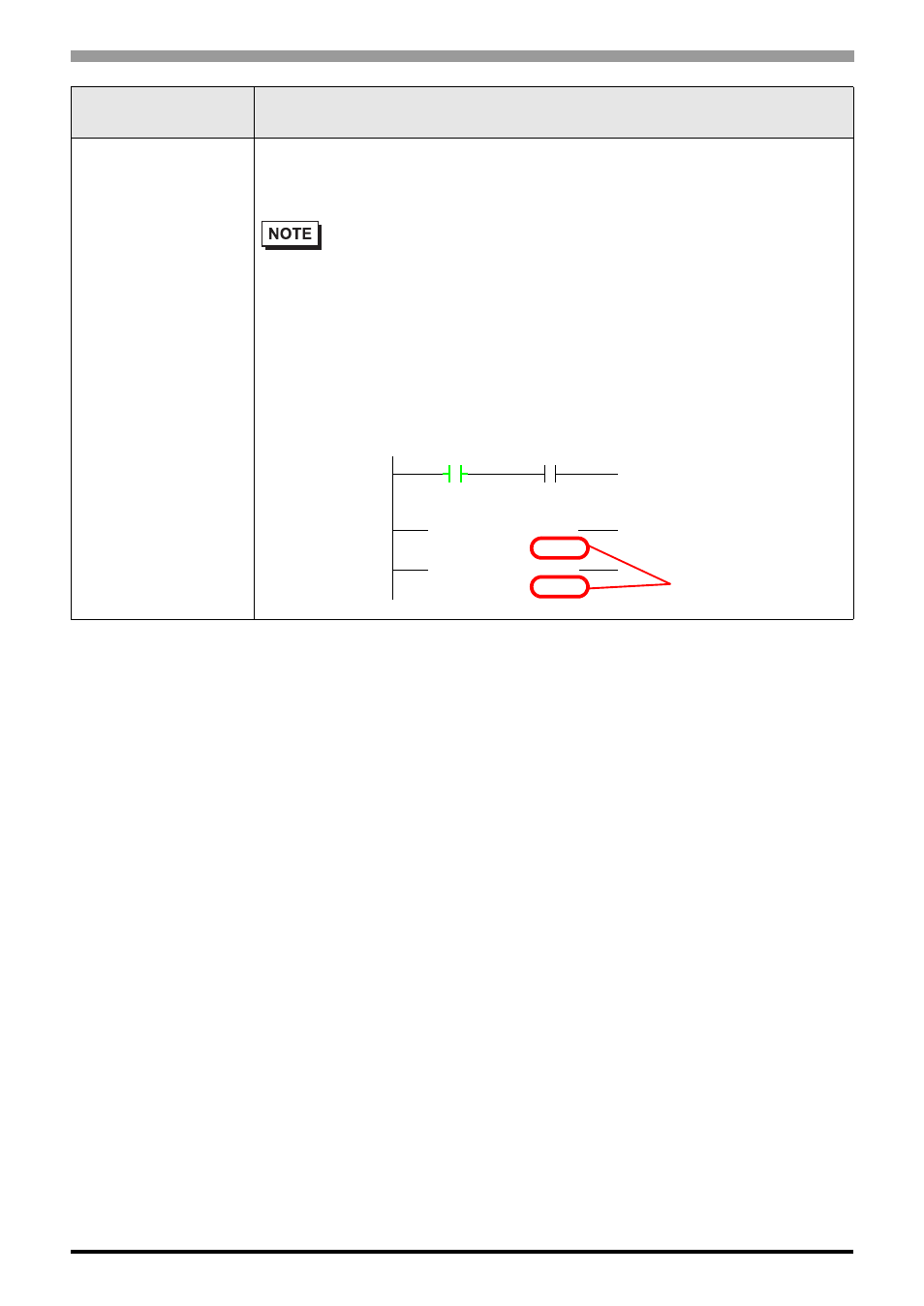

Contact/Coil
Displays energized/non-energized state by the thickness of parts lines.
An energized state is displayed in bold lines.
Decimal/Binary-coded decimal/Hexadecimal
Data is displayed in parallel with devices. Current values for bit devices
are displayed in bits. Current values for word devices are displayed in
words.
[
CMP
D100
D200
]
00256
00256
[
CMP
D100
D200
]
00FF
00FF
0.00
Energized
0.01
Non-energized
Contact/Coil
Decimal/
Binary-coded
decimal/
Hexadecimal
Current values
Continued
Setting/Notated
Items
Setting/Notated Contents
