WAFER-CV-D25501/N26001 3.5" Motherboard

Page 61

Step 1:

Locate the female DB-15 connector. The location of the female DB-15

connector is shown in Chapter 3.

Step 2:

Align the VGA connector. Align the male DB-15 connector on the VGA screen

cable with the female DB-15 connector on the external peripheral interface.

Step 3:

Insert the VGA connector

Once the connectors are properly aligned with the

insert the male connector from the VGA screen into the female connector on the

WAFER-CV-D25501/N26001. See Figure 4-22.

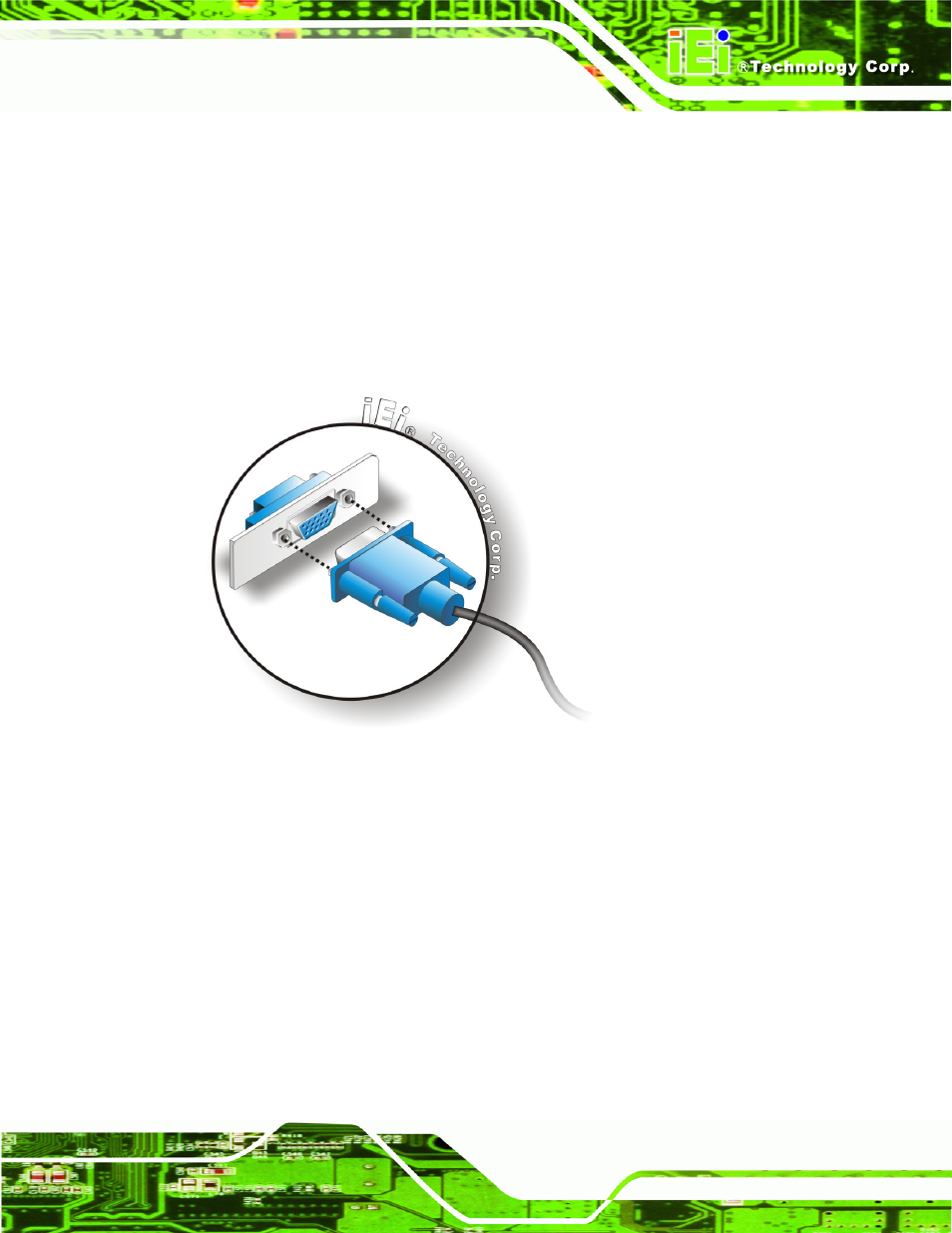

Figure 4-22: VGA Connector

Step 4:

Secure the connector. Secure the DB-15 VGA connector from the VGA

monitor to the external interface by tightening the two retention screws on either

side of the connector.
