WAFER-CV-D25501/N26001 3.5" Motherboard
Page 45

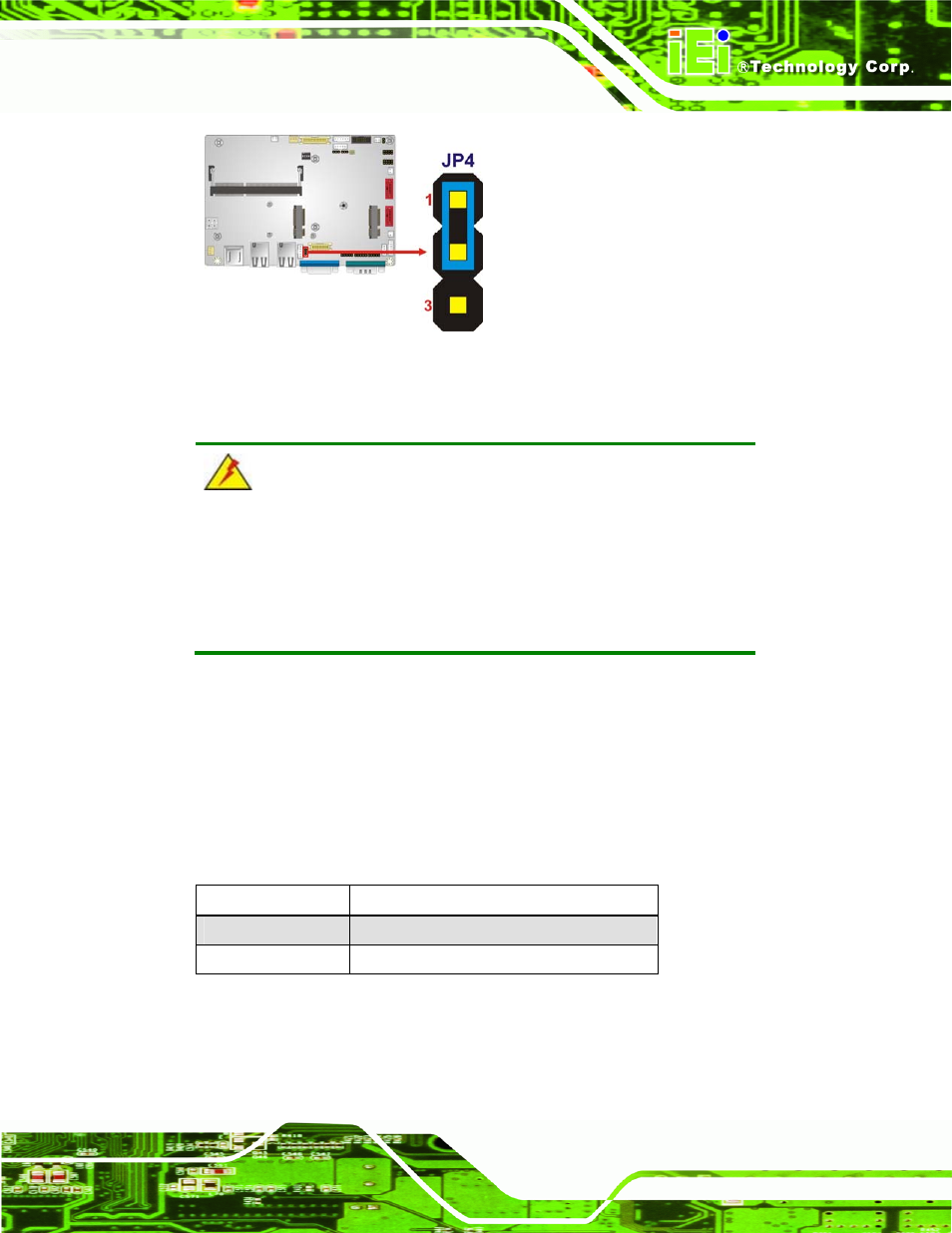

Figure 4-4: LVDS1 Voltage Selection Jumper Location
4.4.4 LVDS2 Voltage Selection
WARNING:
Permanent damage to the screen and WAFER-CV-D25501/N26001
may occur if the wrong voltage is selected with this jumper. Please
refer to the user guide that came with the monitor to select the correct
voltage.
Jumper Label: JP1
Jumper Type: 3-pin header
Jumper Settings: See Table 4-5
Jumper Location: See Figure 4-5
Sets the voltage provided to the monitor connected to LVDS2.
Setting Description
Short 1-2 +3.3V LVDS (Default)
Short 2-3 +5V LVDS
Table 4-5: LVDS2 Voltage Selection Jumper Settings
