Page 66

WAFER-CV-D25501/N26001 3.5" Motherboard

Page 51

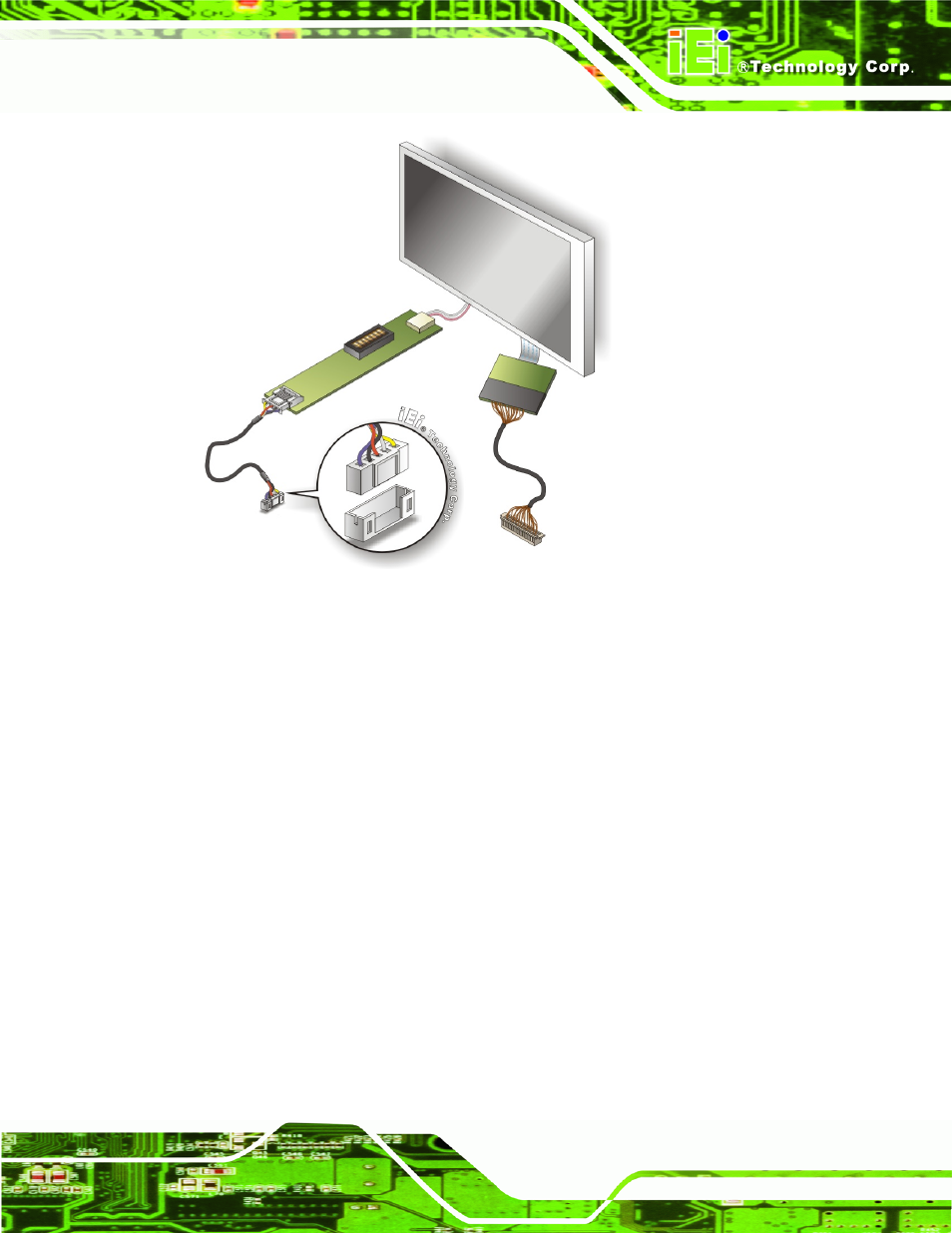

Figure 4-9: Backlight Inverter Connection

4.6.3 Full-size PCIe Mini Card Installation

To install a full-size PCIe Mini card, please follow the steps below.

Step 1:

Locate the full-size PCIe Mini card slot. The location of the full-size PCIe Mini

card slot is shown in Chapter 3.

Step 2:

Remove the retention screw. Remove the retention screw secured on the

motherboard as shown in Figure 4-10.
