WAFER-CV-D25501/N26001 3.5" Motherboard

Page 55

Step 1:

Locate the SATA connector and the SATA power connector. The locations of

the connectors are shown in Chapter 3.

Step 2:

Insert the cable connector. Insert the cable connector into the on-board SATA

drive connector and the SATA power connector. See Figure 4-16.

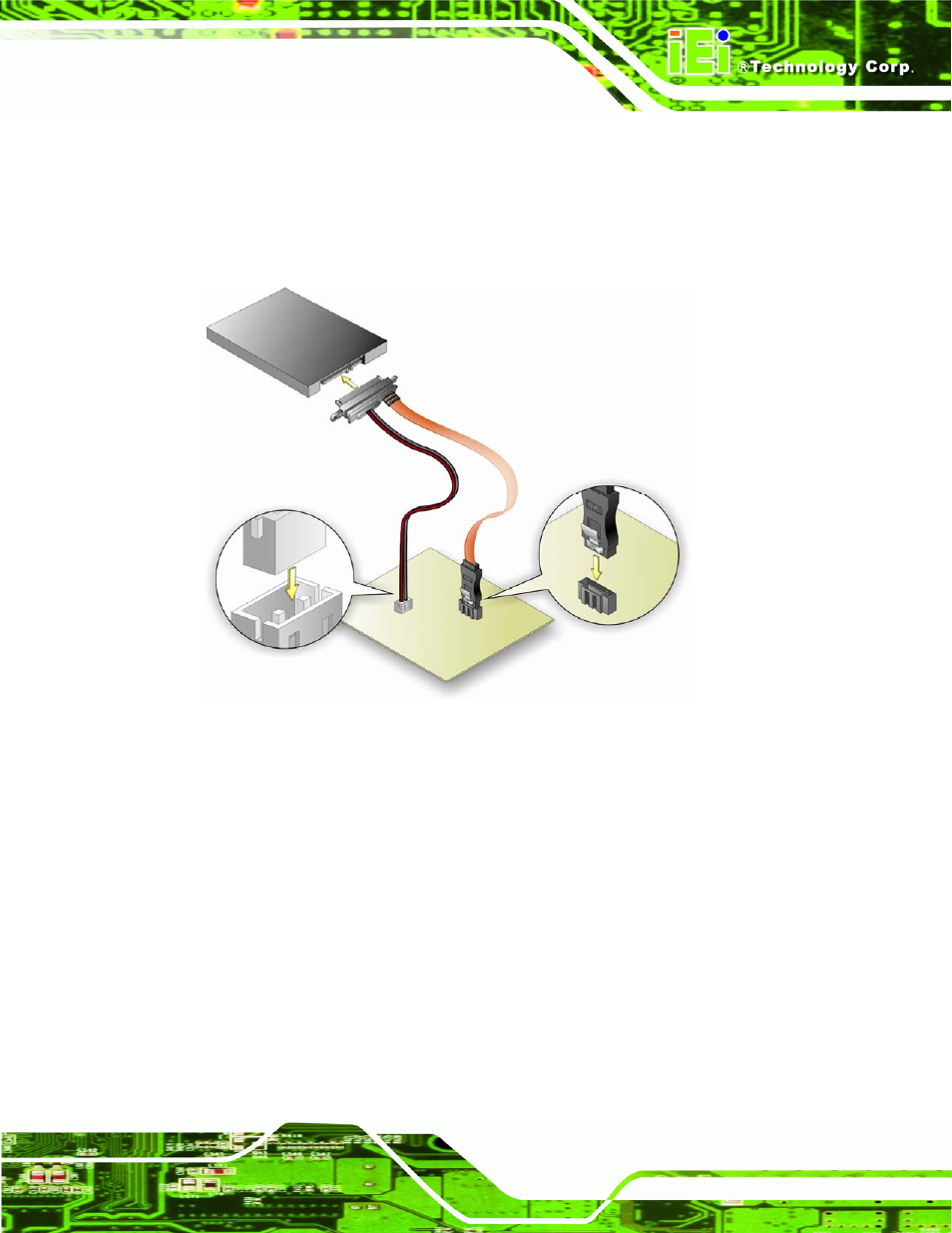

Figure 4-16: SATA Drive Cable Connection

Step 3:

Connect the cable to the SATA disk. Connect the connector on the other end

of the cable to the connector at the back of the SATA drive. See Figure 4-16.

Step 4:

To remove the SATA cable from the SATA connector, press the clip on the

connector at the end of the cable.

4.6.6 Single RS-232 Cable

The single RS-232 cable consists of one serial port connector attached to a serial

communications cable that is then attached to a D-sub 9 male connector. To install the

single RS-232 cable, please follow the steps below.
