WAFER-CV-D25501/N26001 3.5" Motherboard
Page 22

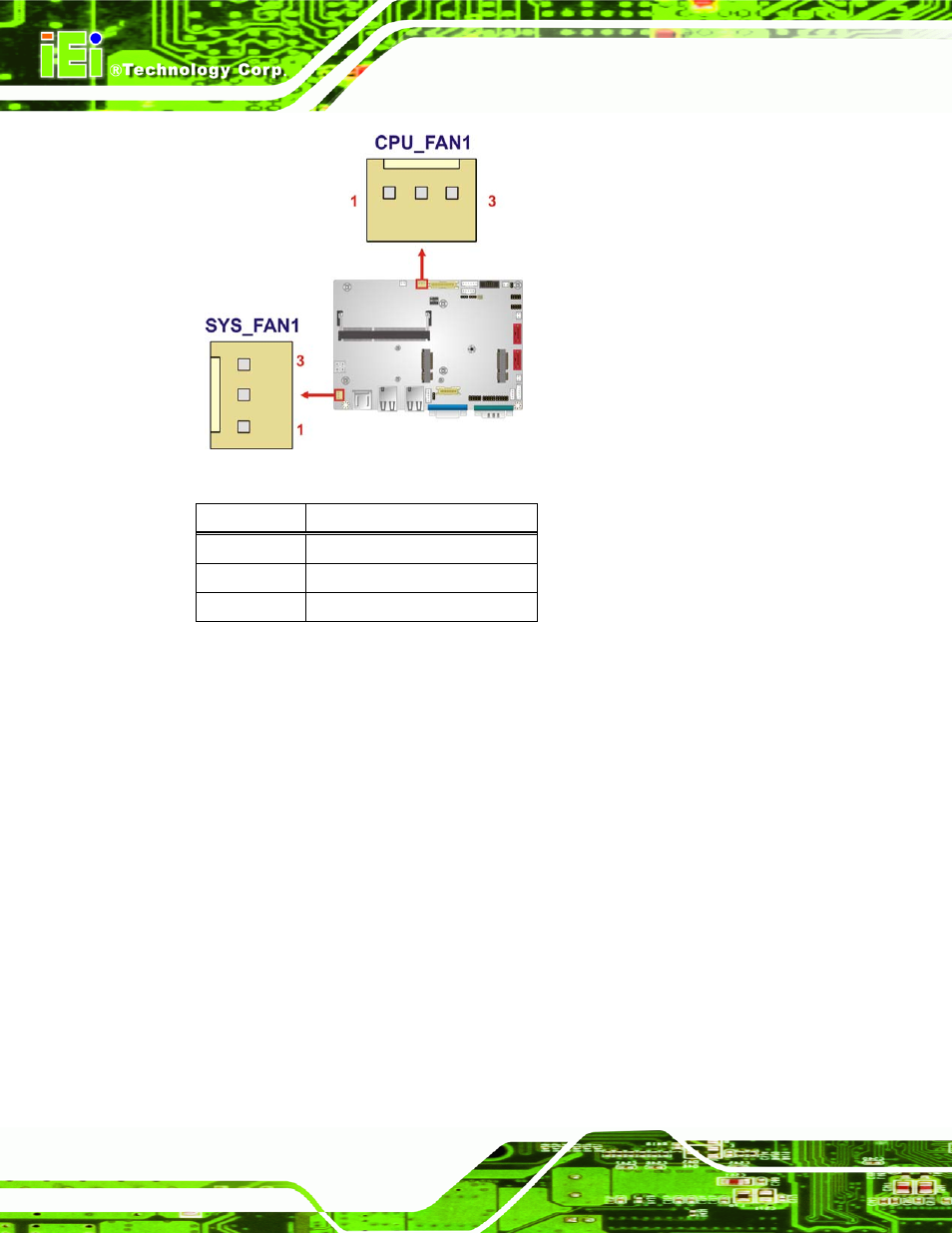

Figure 3-8: Fan Connector Locations
PIN NO. DESCRIPTION
1 GND
2 +12 V
3 Fan Speed Detect
Table 3-9: Fan Connector Pinouts
3.2.8 Keyboard/Mouse Connector
CN Label: KB_MS1
CN Type: 6-pin wafer
CN Location: See Figure 3-9
CN Pinouts: See Table 3-10
The keyboard and mouse connector can be connected to a standard PS/2 cable or PS/2
Y-cable to add keyboard and mouse functionality to the system.
