1.1 Introduction

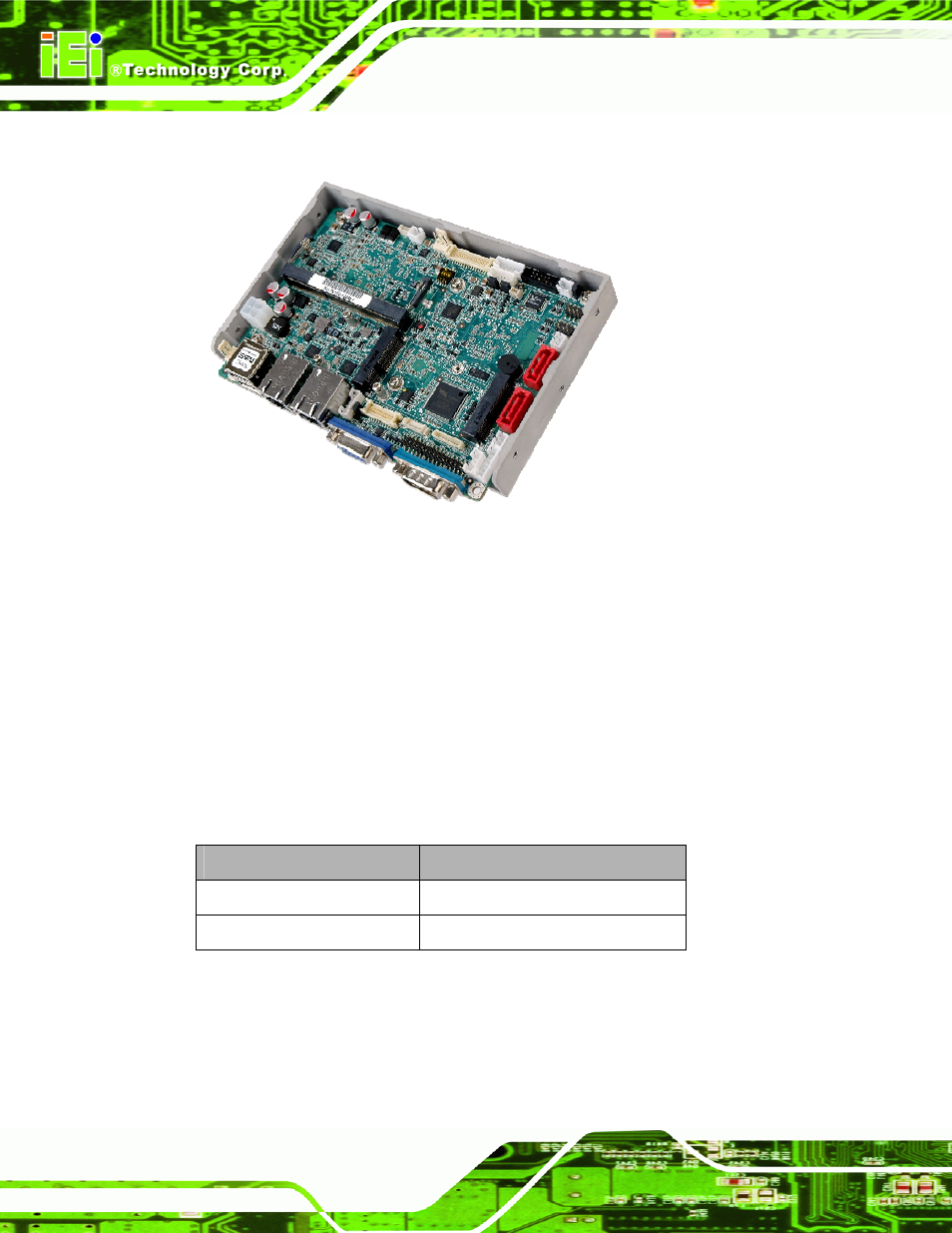

Figure 1-1: WAFER-CV-D25501/N26001

The WAFER-CV-D25501/N26001 3.5” motherboard is an Intel® Atom™ D2550/N2600

processor platform that supports one 1066 MHz or 800 MHz DDR3 SO-DIMM memory.

The WAFER-CV-D25501/N26001 supports VGA display output and comes with two LVDS

connectors supporting 24-bit or 18-bit LVDS screens. Maximum six USB ports, two SATA

3Gb/s connectors, two PCIe Mini card slots, four COM ports, and one audio connector

provide flexible expansion options.

1.2 Model Variations

The model variations of the WAFER-CV-D25501/N26001 are listed below.

Model No.

CPU

WAFER-CV-D25501-R10

Intel® Atom D2550 1.86 GHz

WAFER-CV-N26001-R10

Intel® Atom N2600 1.6 GHz

Table 1-1: WAFER-CV-D25501/N26001 Model Variations
