WAFER-CV-D25501/N26001 3.5" Motherboard
Page 52

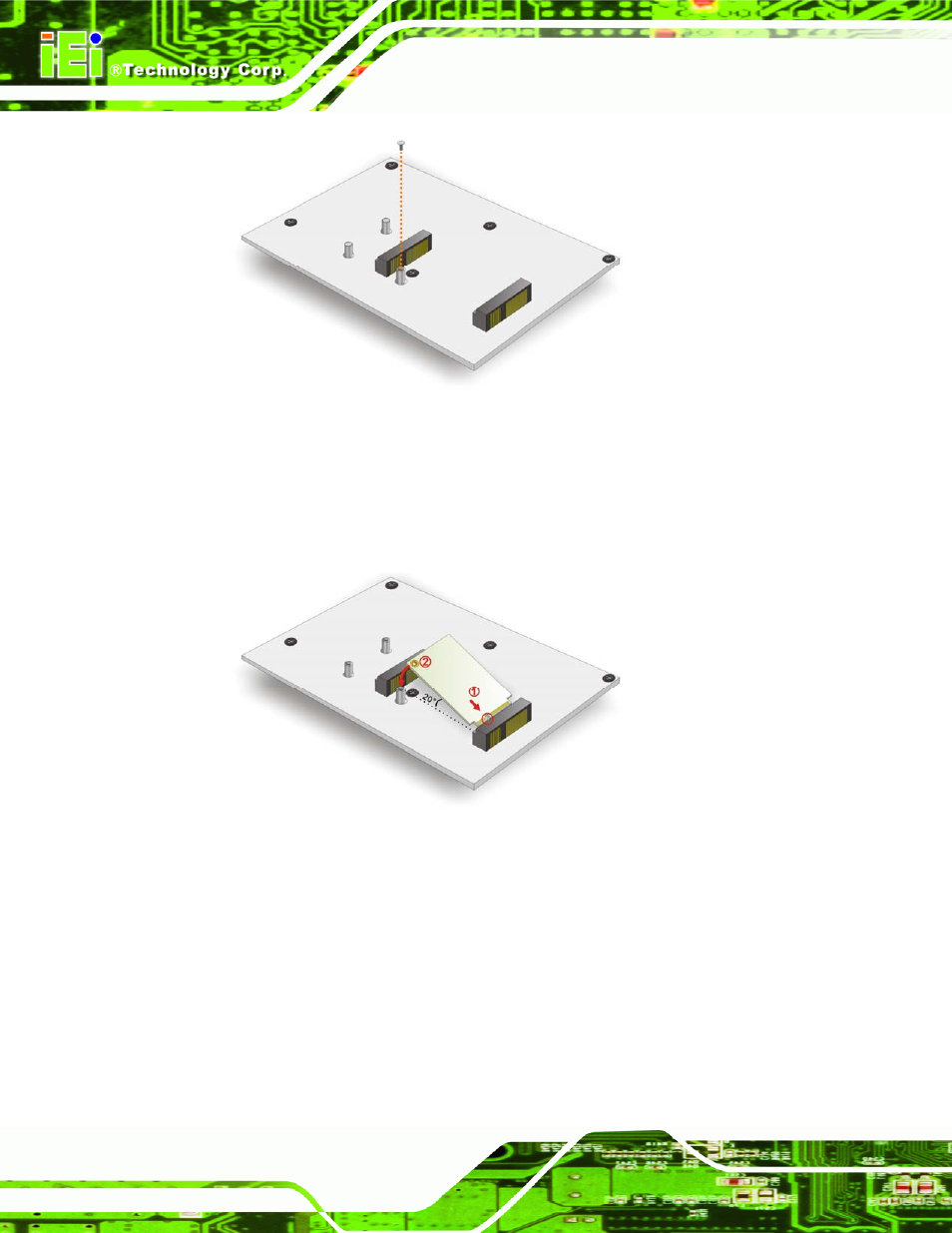

Figure 4-10: Remove the Retention Screw for the Full-size PCIe Mini Card
Step 3: Insert into the socket at an angle. Line up the notch on the card with the notch
on the connector. Slide the PCIe Mini card into the socket at an angle of about
20º (Figure 4-11).
Figure 4-11: Insert the Full-size PCIe Mini Card into the Socket at an Angle
Step 4: Secure the full-size PCIe Mini card. Secure the full-size PCIe Mini card with
the retention screw previously removed (Figure 4-12).
