WAFER-CV-D25501/N26001 3.5" Motherboard

Page 18

The 10-pin audio connector is connected to external audio devices including speakers and

microphones for the input and output of audio signals to and from the system.

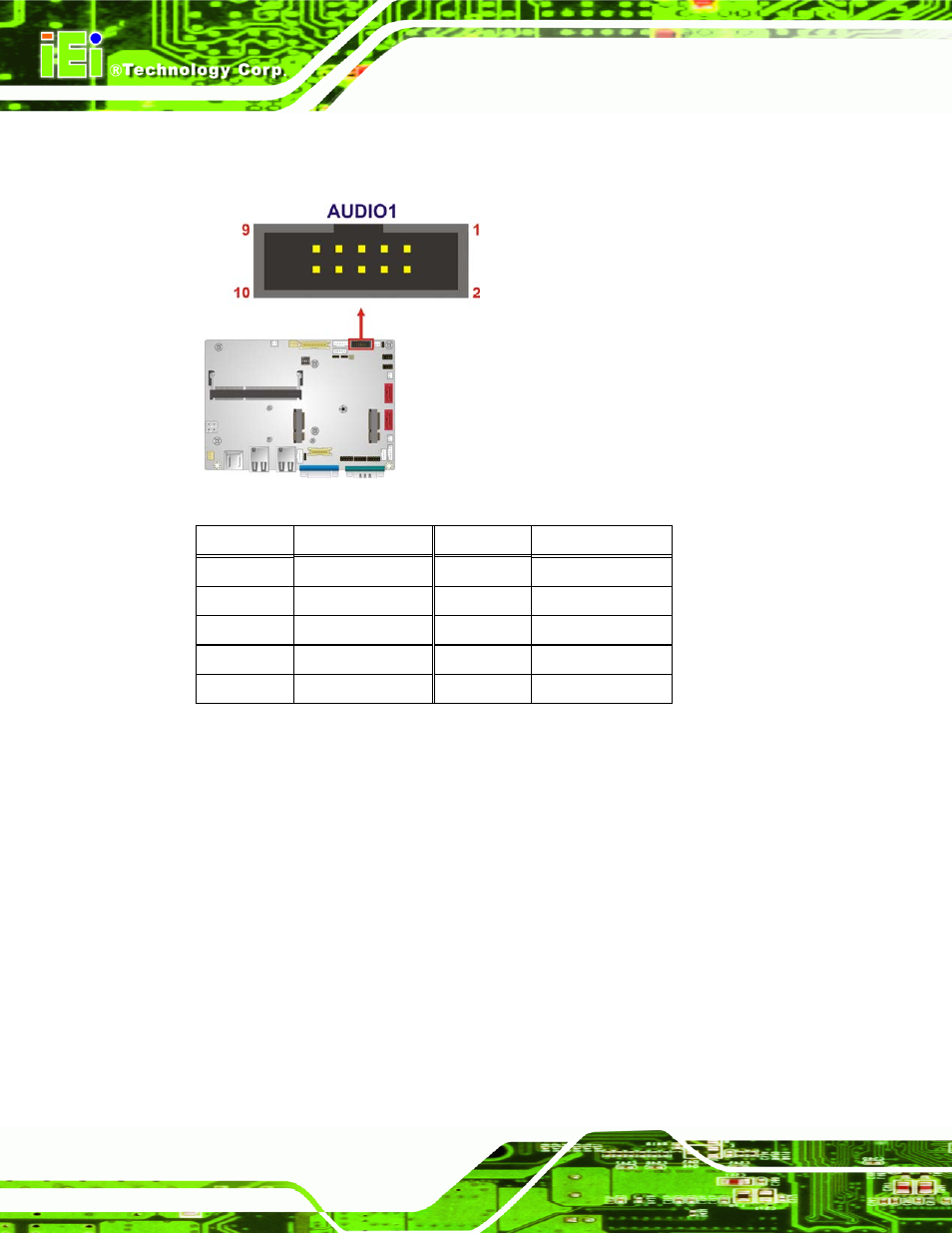

Figure 3-4: Audio Connector Location

Pin Description

Pin Description

1

Line-out_R

2

Line-in_R

3

AUD_GND

4

AUD_GND

5

Line-out _L

6

Line-in _L

7

AUD_GND

8

AUD_GND

9

MIC1_R

10

MIC1_L

Table 3-5: Audio Connector Pinouts

3.2.4 Backlight Inverter Connectors

CN Label:

INV1, INV2

CN Type:

5-pin wafer

CN Location:

See Figure 3-5

CN Pinouts:

See Table 3-6

The backlight inverter connectors provide the backlights on the LCD display connected to

the WAFER-CV-D25501/N26001 with +12V of power.
