WAFER-CV-D25501/N26001 3.5" Motherboard

Page 33

Pin Description

1 GND

2 TX+

3 TX-

4 GND

5 RX-

6 RX+

7 GND

Table 3-20: SATA Drive Connector Pinouts

3.2.19 USB Connectors

CN Label:

USB2, USB3

CN Type:

8-pin header

CN Location:

See Figure 3-20

CN Pinouts:

See Table 3-21

Each USB connector provides connectivity to two USB 1.1/2.0 ports.

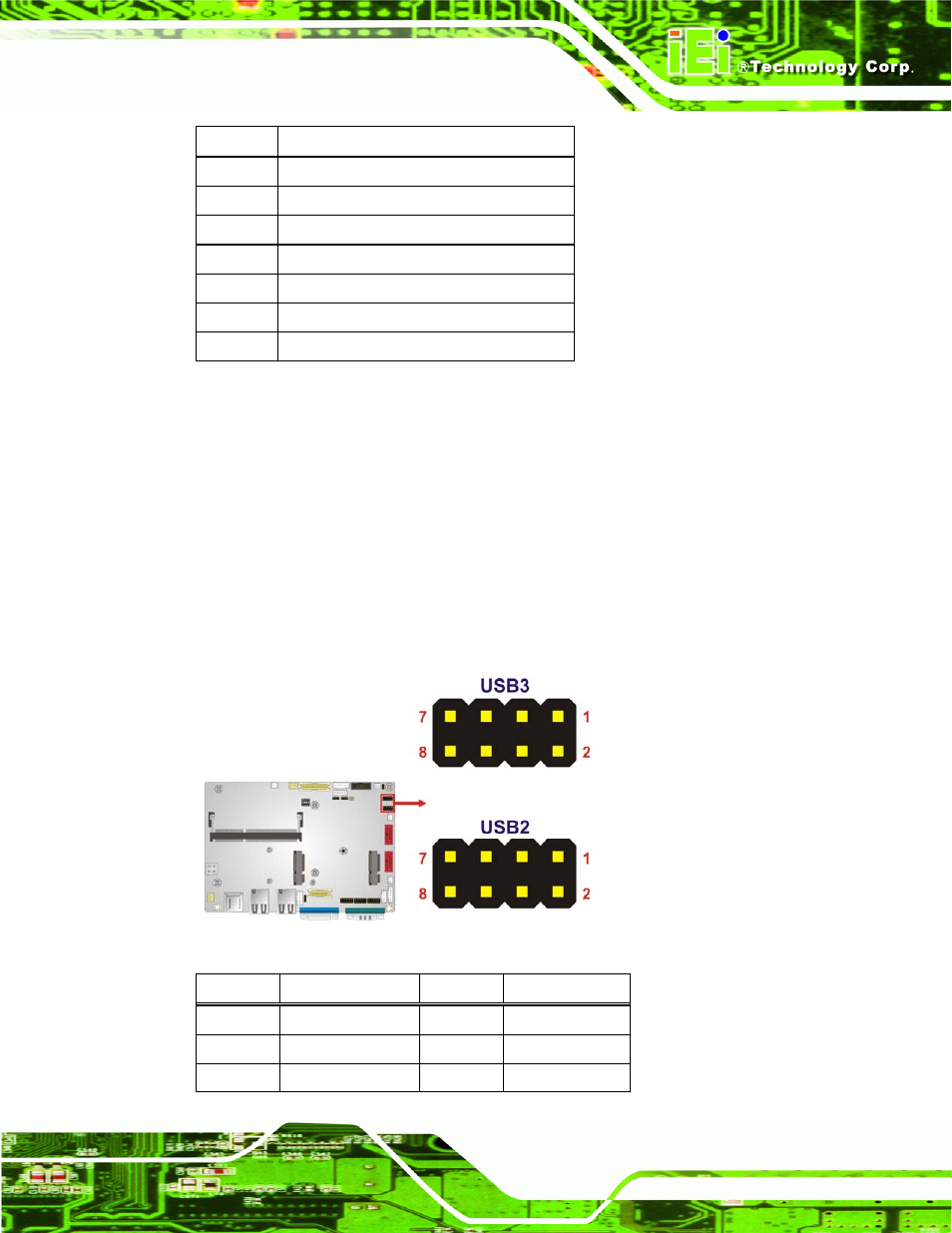

Figure 3-20: USB Connector Locations

Pin

Description

Pin

Description

1

USB_VCC

2

GND

3

DATA-

4

DATA+

5

DATA+

6

DATA-
