WAFER-CV-D25501/N26001 3.5" Motherboard

Page 29

Pin Description

1 +5V

2 GND

3 Power

LED+

4 Power

LED-

5 HDD

LED+

6 HDD

LED-

Table 3-15: Power & HDD LED Connector Pinouts

3.2.14 Power Button Connector

CN Label:

PWR_BTN1

CN Type:

2-pin wafer

CN Location:

See Figure 3-15

CN Pinouts:

See Table 3-16

The power button connector is connected to a power switch on the system chassis to

enable users to turn the system on and off.

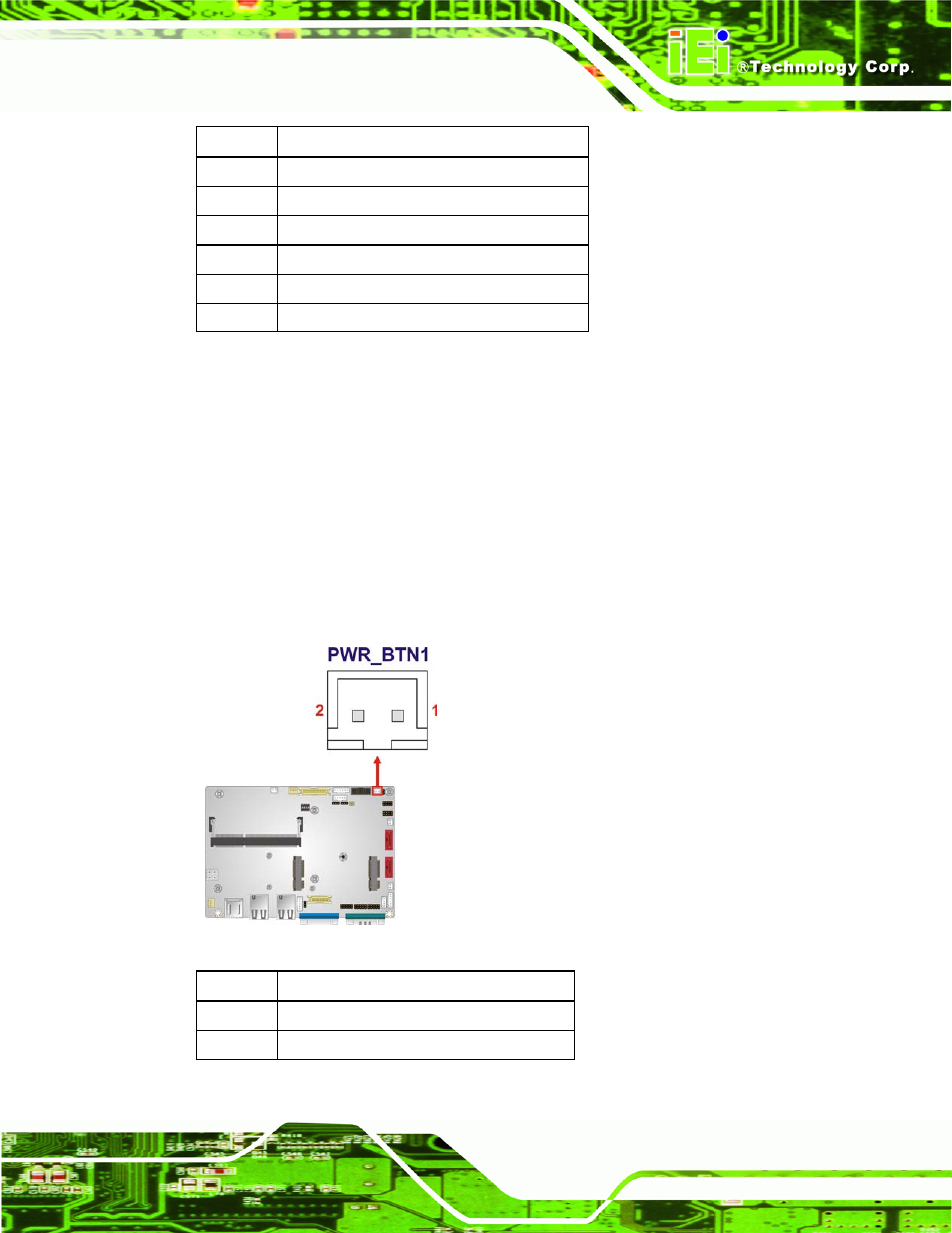

Figure 3-15: Power Button Connector Location

Pin Description

1

PWR_BTN+

2

PWR_BTN-

Table 3-16: Power Button Connector Pinouts
