WAFER-CV-D25501/N26001 3.5" Motherboard

Page 19

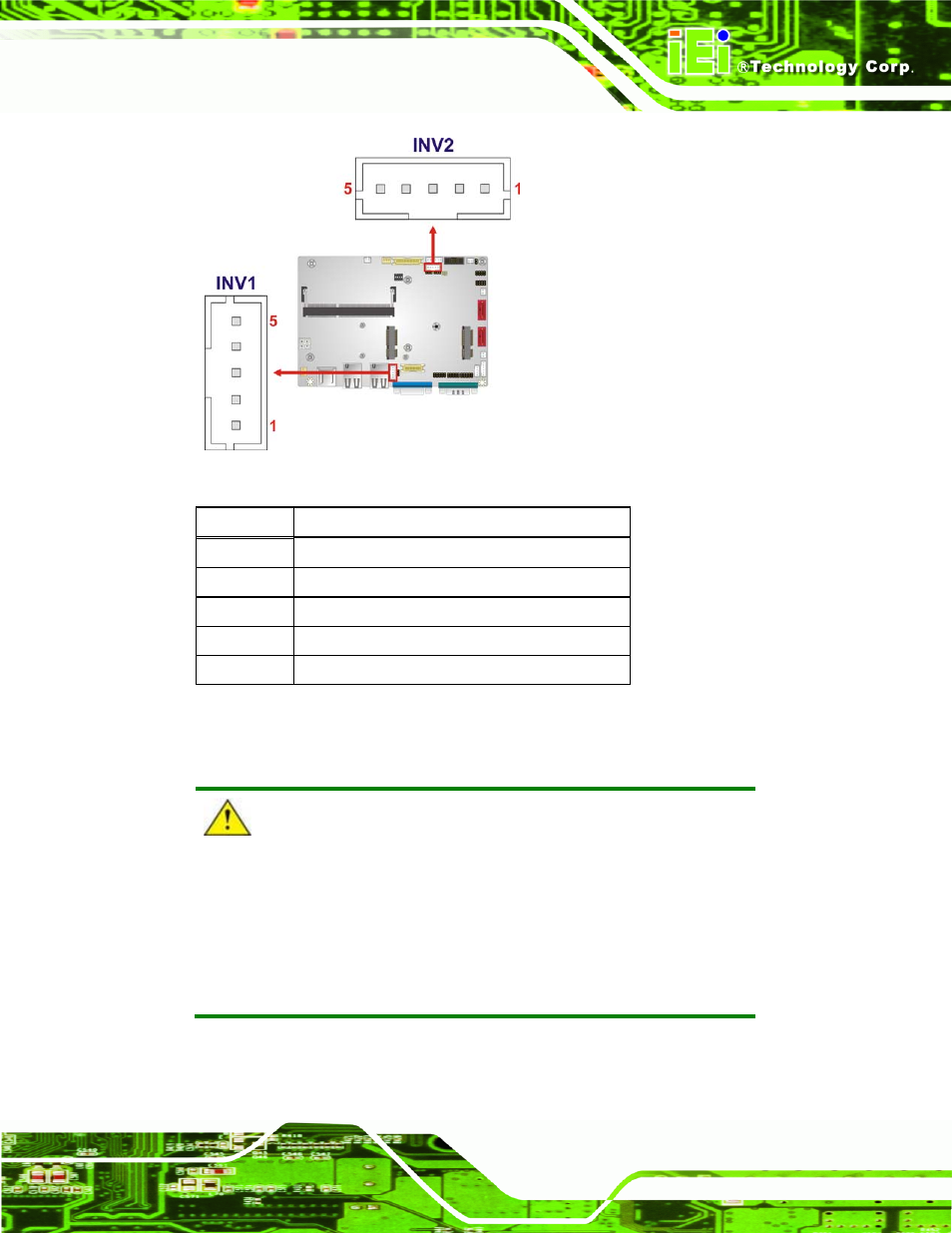

Figure 3-5: Backlight Inverter Connector Locations

Pin Description

1

LCD_BKLTCTL

2

GROUND

3

+12V

4

GROUND

5

LCD_BKLEN

Table 3-6: Backlight Inverter Connector Pinouts

3.2.5 Battery Connector

CAUTION:

Risk of explosion if battery is replaced by an incorrect type. Only

certified engineers should replace the on-board battery.

Dispose of used batteries according to instructions and local

regulations.

CN Label:

CN1

CN Type:

2-pin wafer
