WAFER-CV-D25501/N26001 3.5" Motherboard
Page 56
Step 1: Locate the connector. The locations of the RS-232 connectors are shown in
Chapter 3.
Step 2: Insert the cable connector. Insert the connector into the serial port header.
See Figure 4-17. A key on the front of the cable connector ensures the
connector can only be installed in one direction.

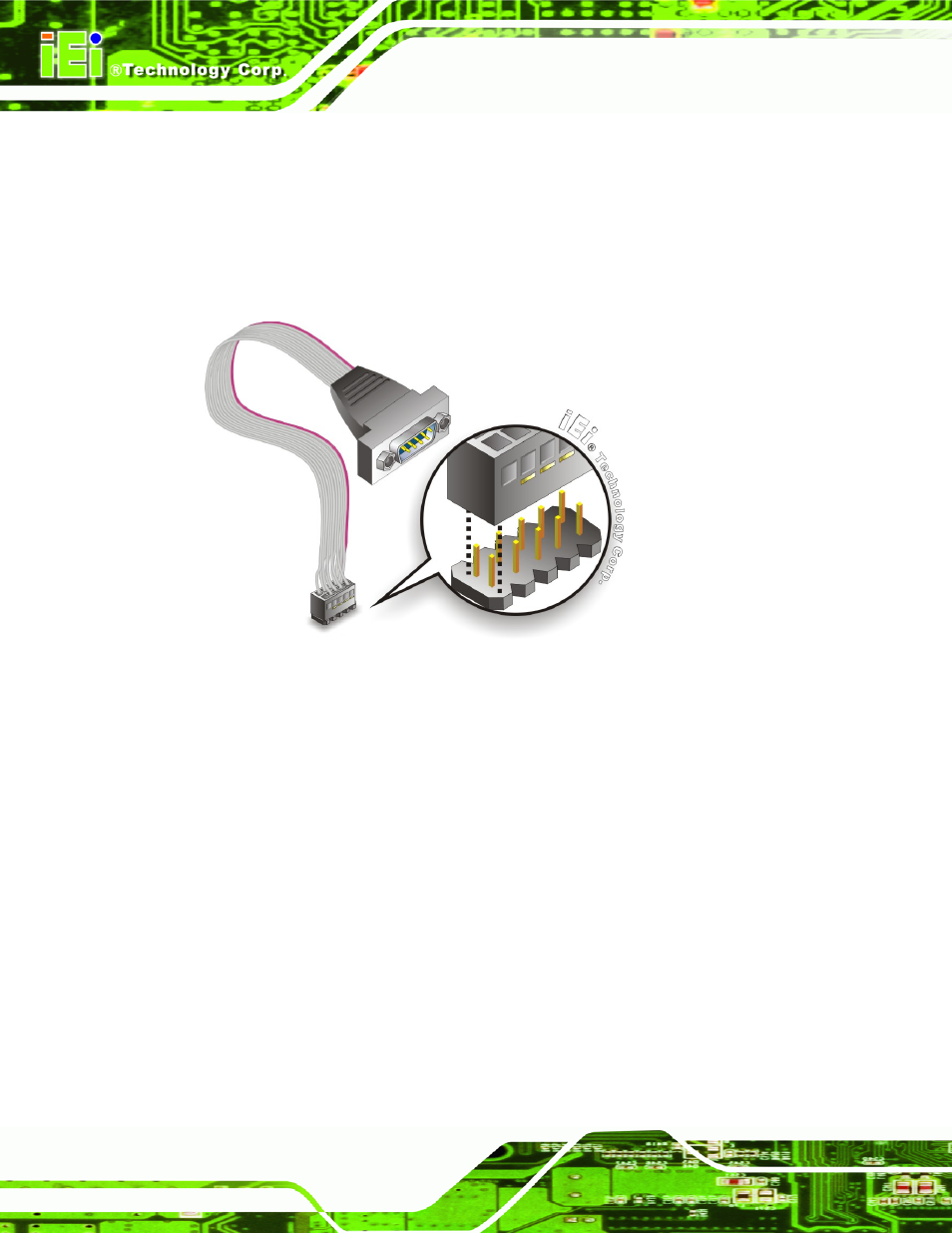

Figure 4-17: Single RS-232 Cable Installation
Step 3: Secure the bracket. The single RS-232 connector has two retention screws
that must be secured to a chassis or bracket.
Step 4: Connect the serial device. Once the single RS-232 connector is connected to
a chassis or bracket, a serial communications device can be connected to the
system.
4.6.7 Keyboard/Mouse Y-cable Connector
The WAFER-CV-D25501/N26001 is shipped with a keyboard/mouse Y-cable connector.
The keyboard/mouse Y-cable connector connects to a keyboard/mouse connector on the
WAFER-CV-D25501/N26001 and branches into two cables that are each connected to a
PS/2 connector, one for a mouse and one for a keyboard. To connect the keyboard/mouse
Y-cable connector, please follow the steps below.
